CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

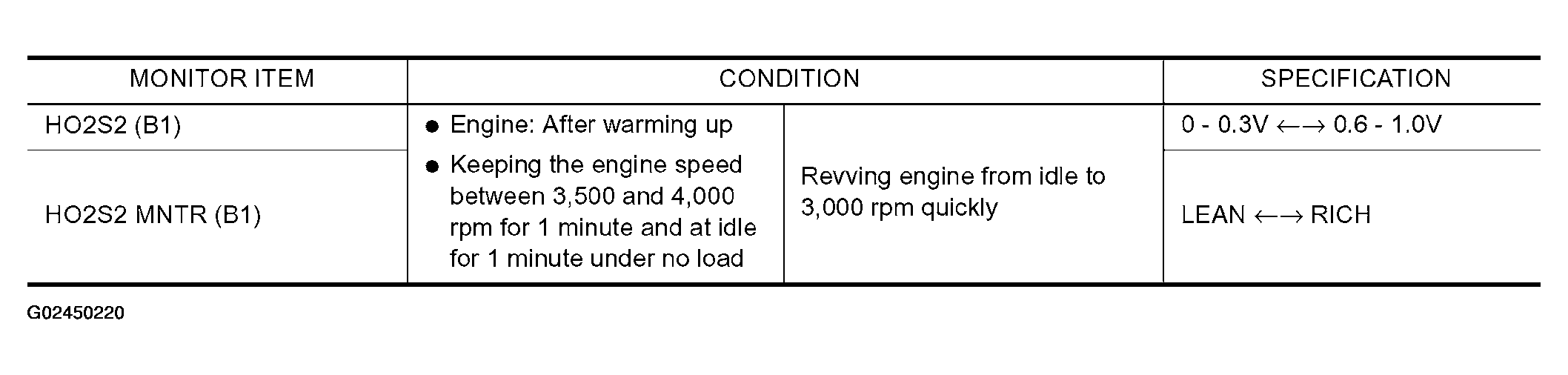

Fig 1: CONSULT-II Reference Value Chart - HO2S2 Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
