Service Data And Specifications (SDS): Starter

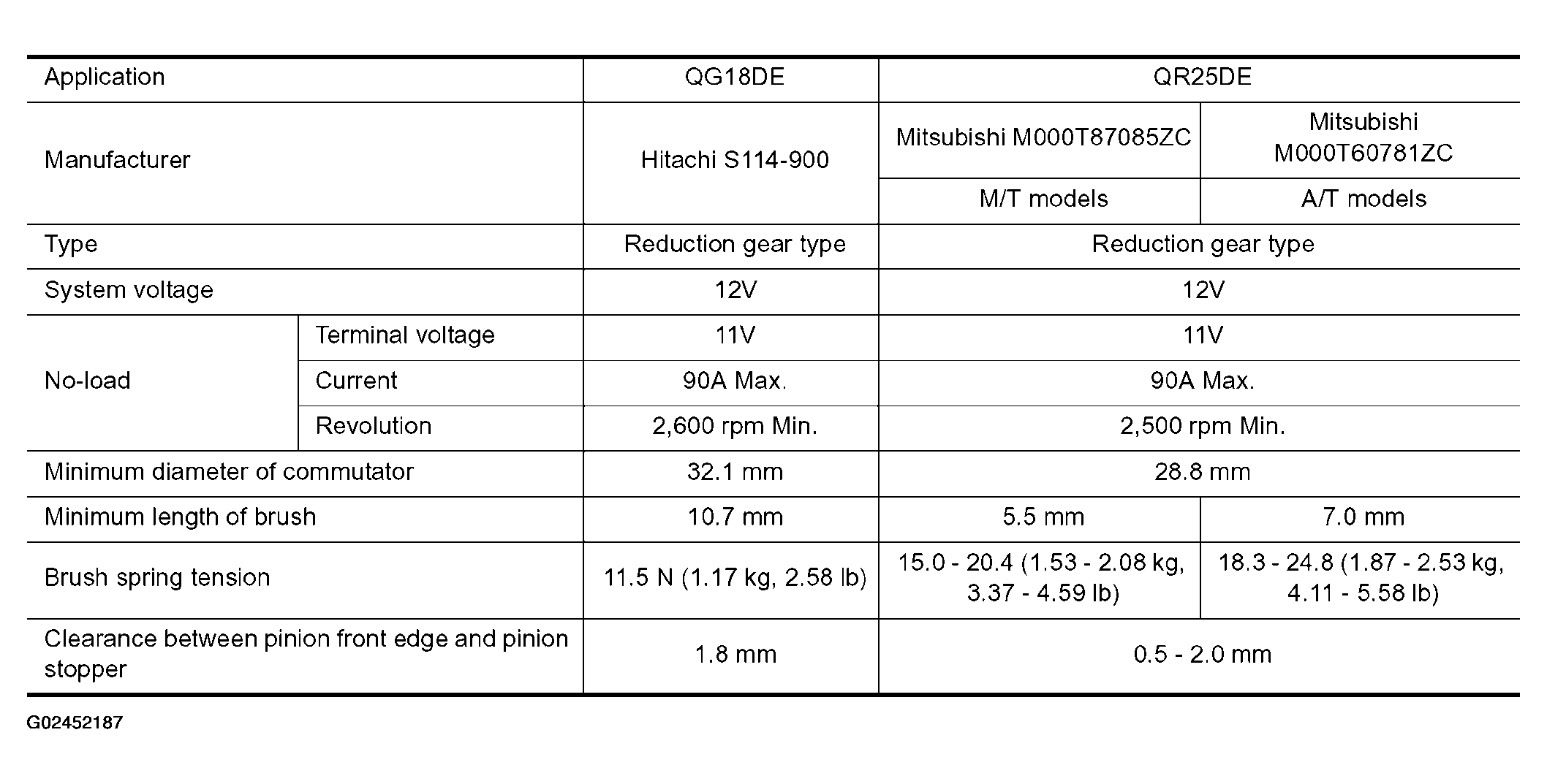

Fig 1: Starter Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
