CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

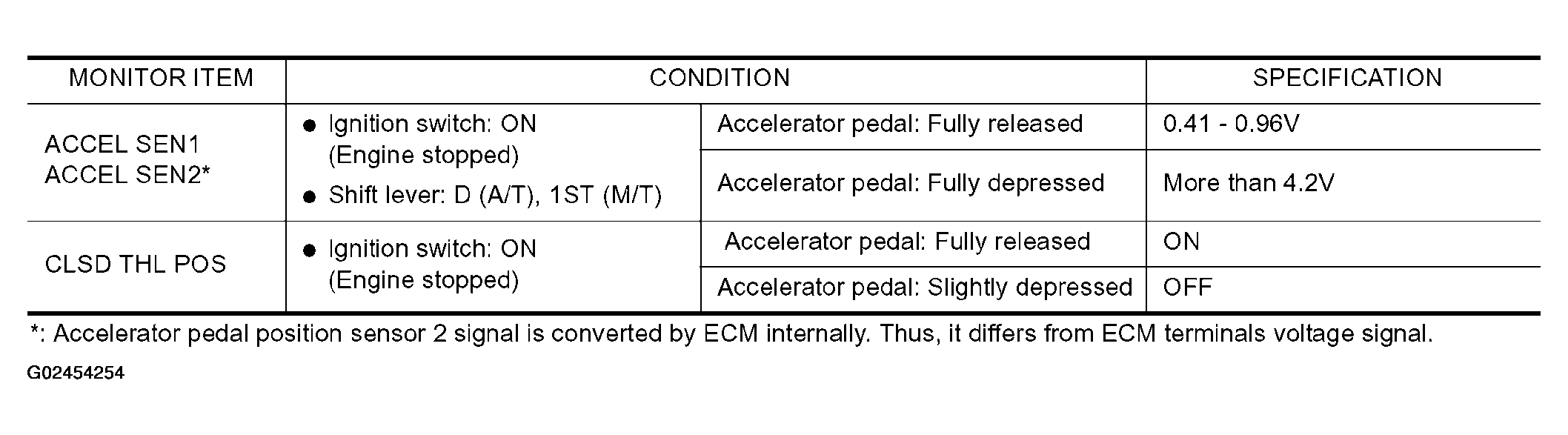

Fig 1: CONSULT-II Reference Value Chart - Accelerator Pedal Position Sensor Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
