Engine Control System - DTCS U1000 To P0335 (Qr25DE)
›
DTC P0139: Ho2S2
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

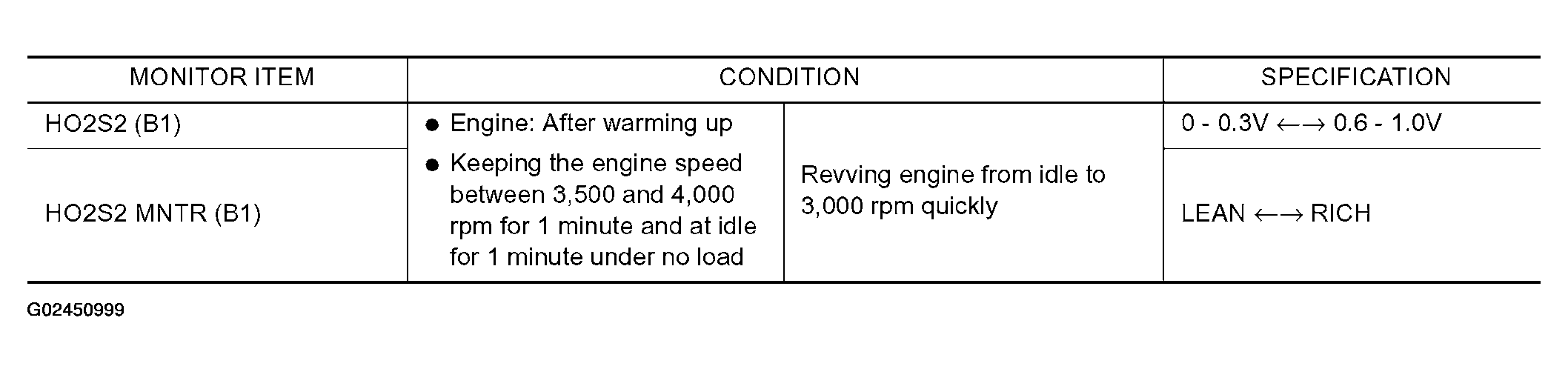

Fig 1: CONSULT-II Reference Value Data Monitor Mode - HO2S2
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
