Engine Control System - Introduction (Qr25DE)
›
Engine Control System
›
System Diagram
›
A/T Models Except ULEV
A/T Models Except ULEV

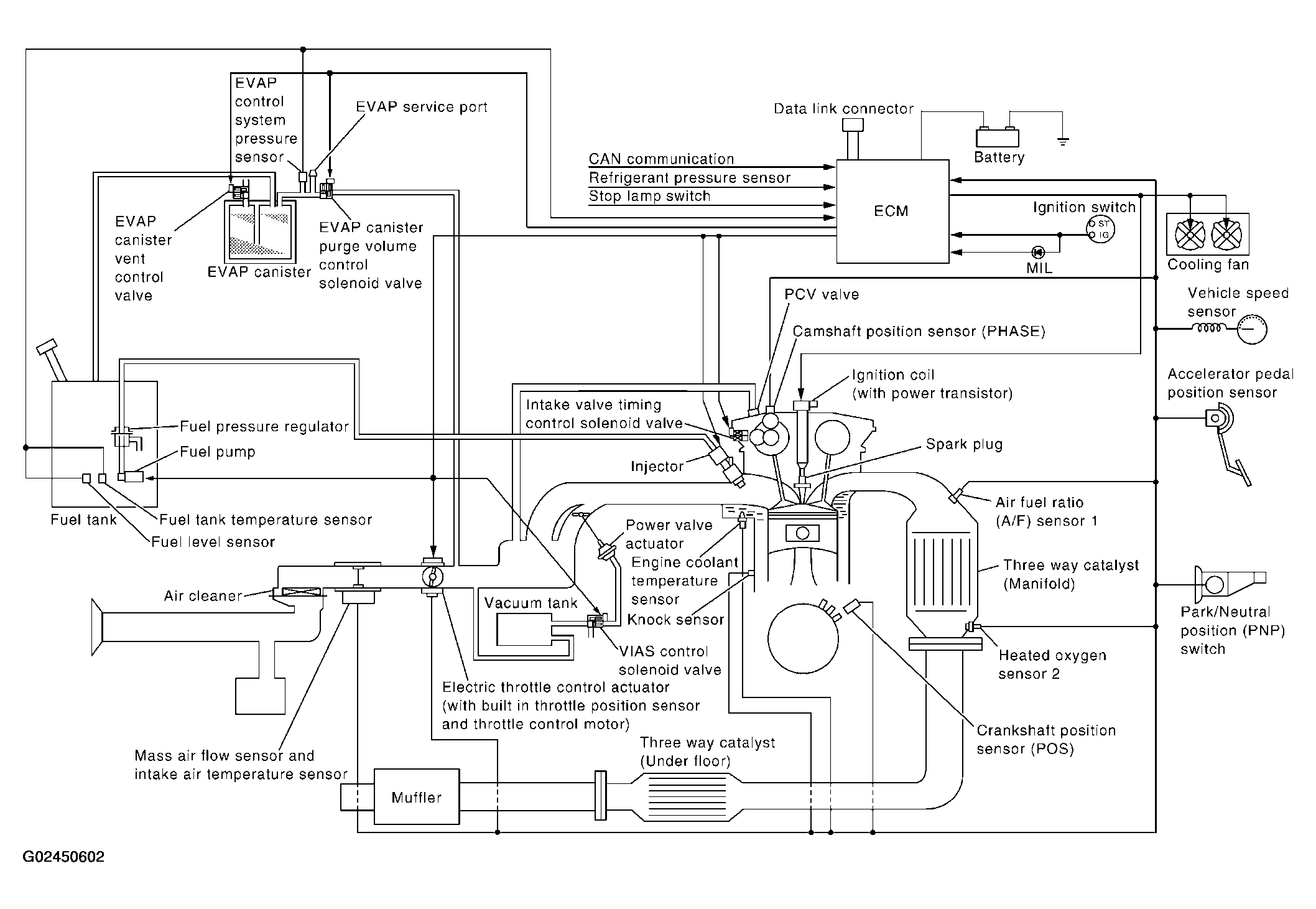

Fig 1: Engine Control System Diagram - 2.5L (A/T Models Except ULEV)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
