Engine Control System - Introduction (Qr25DE)
›
Trouble Diagnosis
›
Engine Control Component Parts Location
›
A/T Models Except ULEV
A/T Models Except ULEV

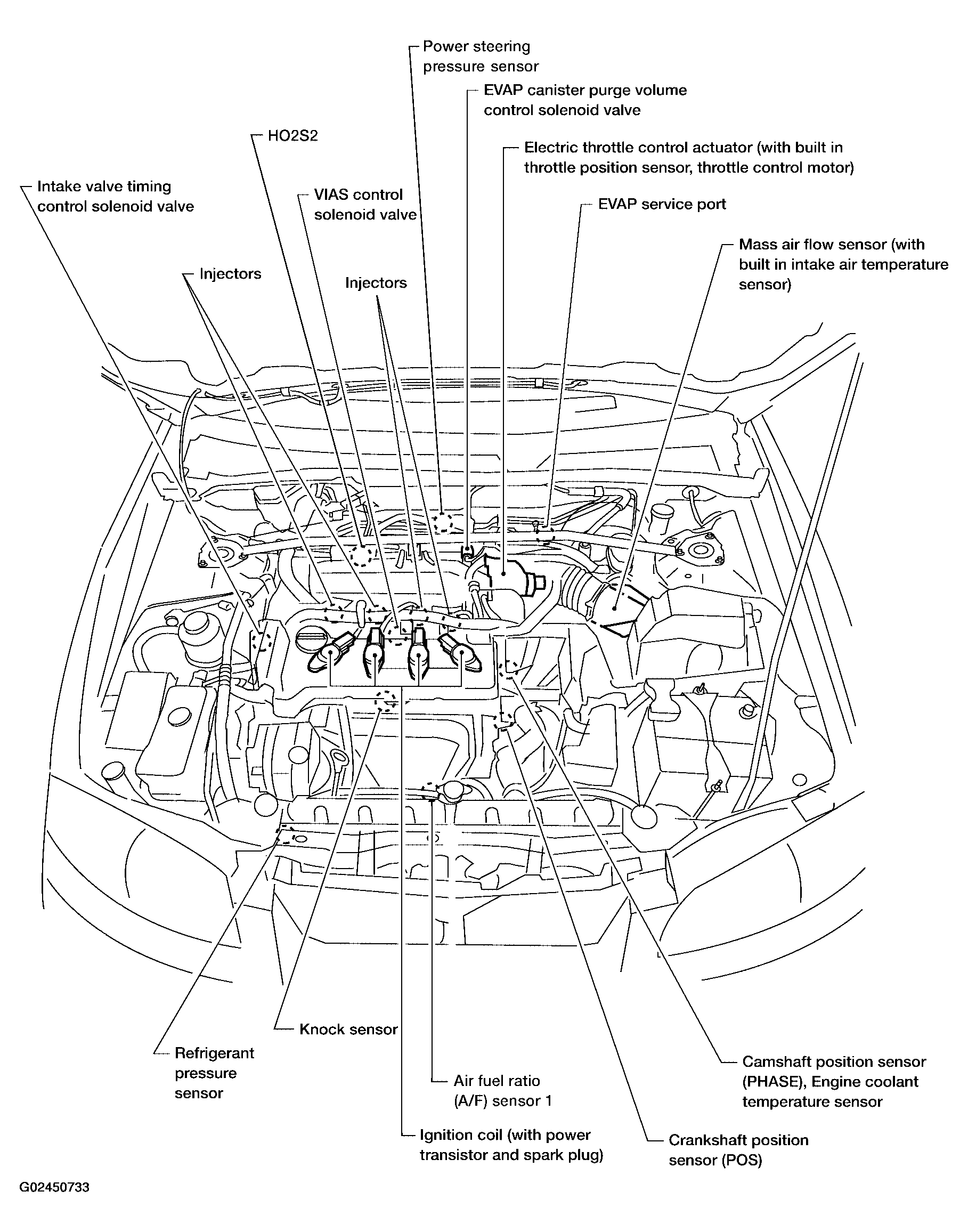

Fig 1: Engine Control Component Parts Location - A/T Models Except ULEV (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Engine Control Component Parts Location - A/T Models Except ULEV (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Engine Control Component Parts Location - A/T Models Except ULEV (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Engine Control Component Parts Location - A/T Models Except ULEV (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Engine Control Component Parts Location - A/T Models Except ULEV (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Engine Control Component Parts Location - A/T Models Except ULEV (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
