Repair and Diagnosis
›
Steering
›
Power Steering System
›
Hydraulic Line
›
Removal and Installation
Removal and Installation

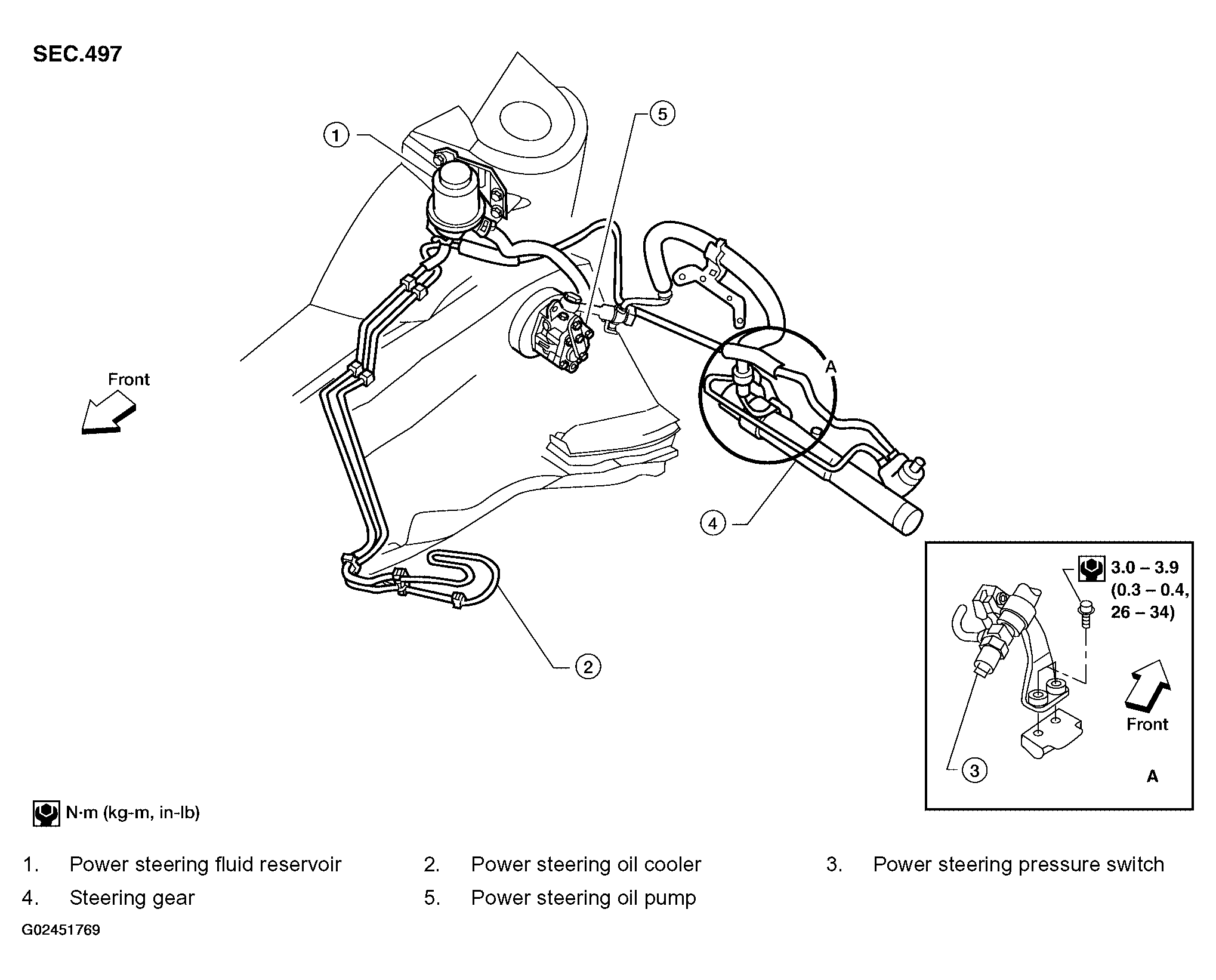

Fig 1: Removing/Installing Hydraulic Line (QG18DE Engine) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

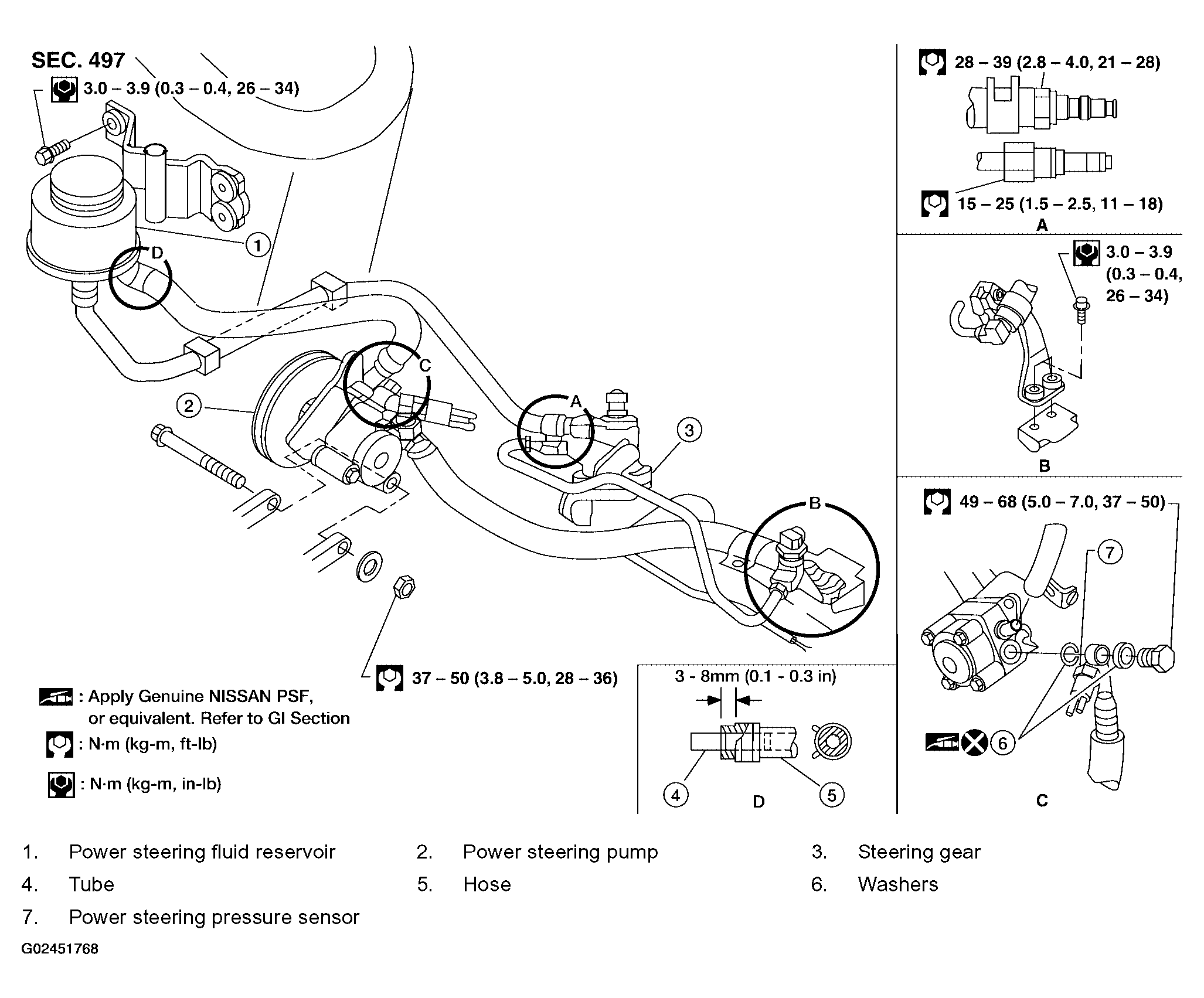

Fig 2: Removing/Installing Hydraulic Line (QR25DE Engine) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
