Smart Entrance Control Unit Inspection Table
Smart Entrance Control Unit Inspection Table

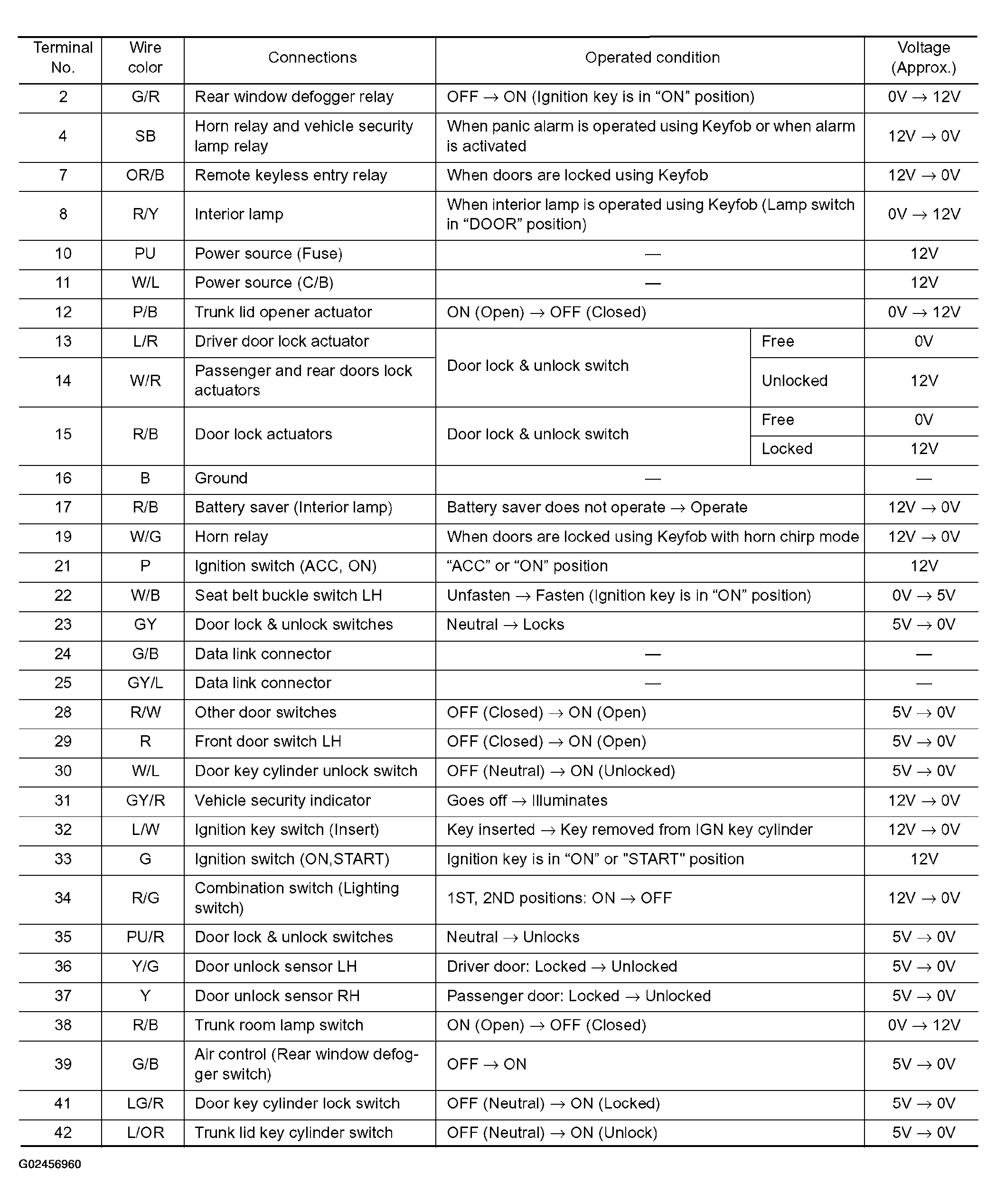

Fig 1: Smart Entrance Control Unit Inspection Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
