Engine Compartment

Measurement

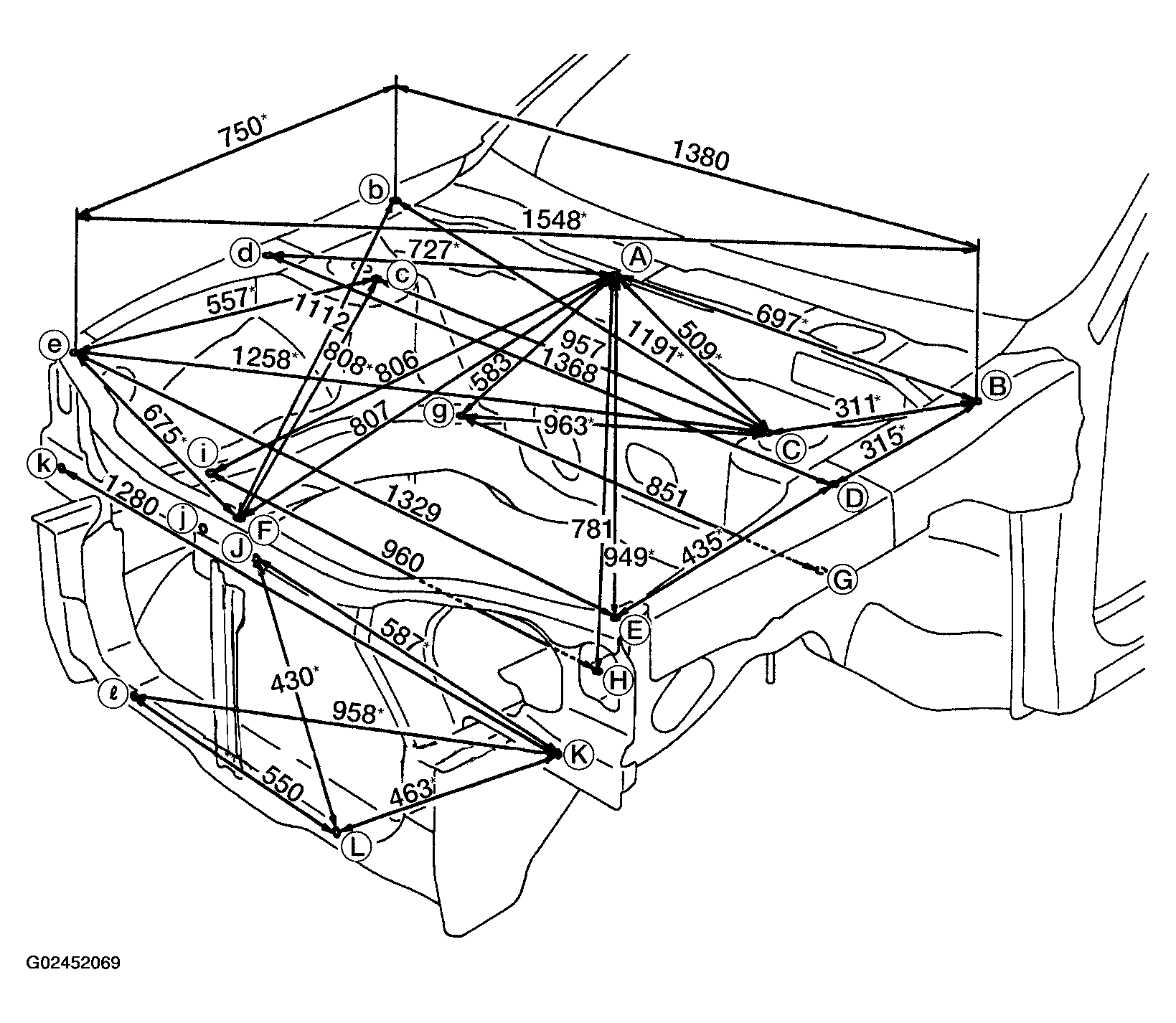

Fig 1: Engine Compartment Measurement (1 Of 2)
G02452069Courtesy of NISSAN MOTOR CO., U.S.A.

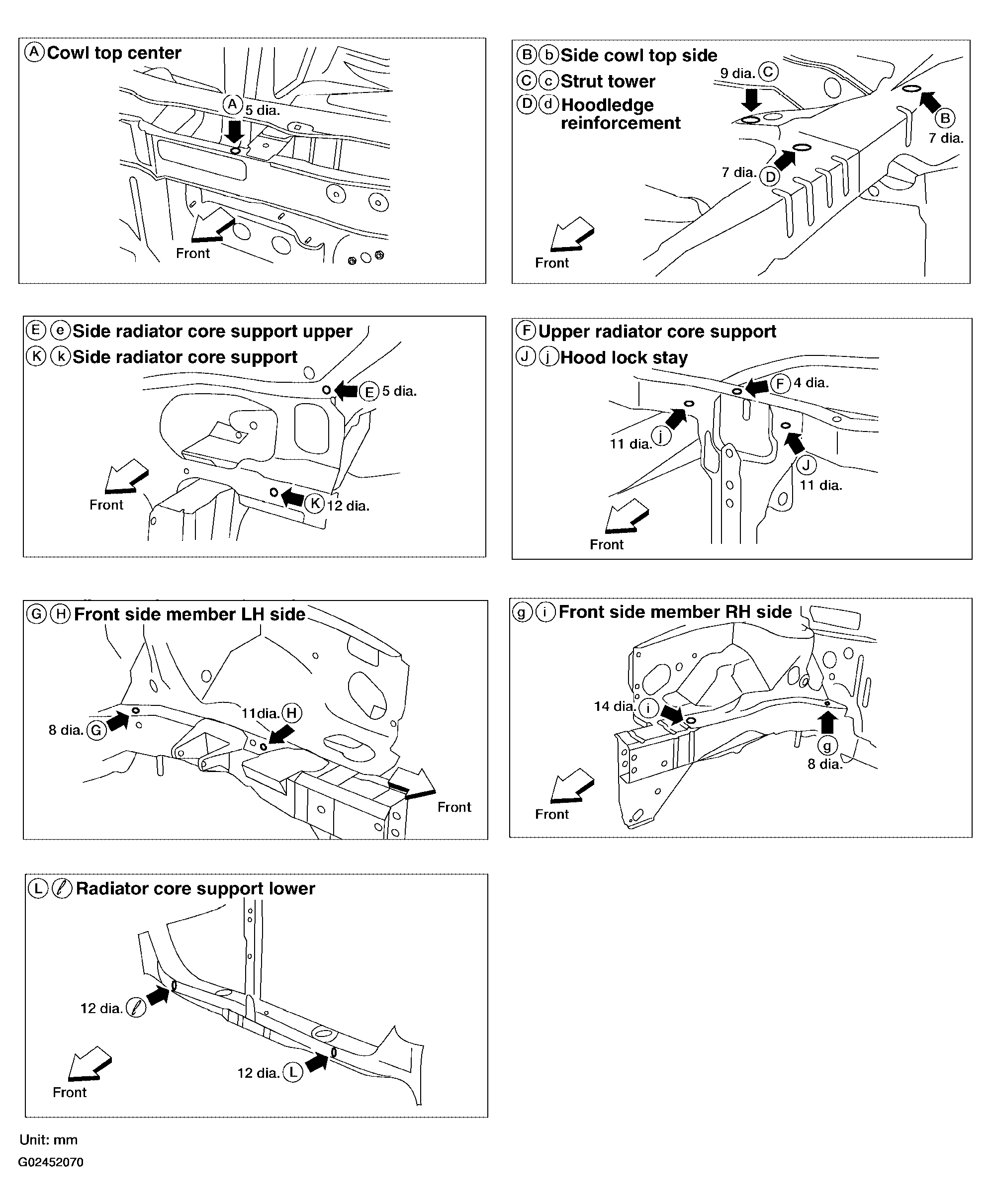

Fig 2: Engine Compartment Measurement (2 Of 2)
G02452070Courtesy of NISSAN MOTOR CO., U.S.A.

Measurement Points

Fig 3: Engine Compartment Measurement Points
G02452071Courtesy of NISSAN MOTOR CO., U.S.A.
