Body (Alignment): Alignment: Underbody
Measurement

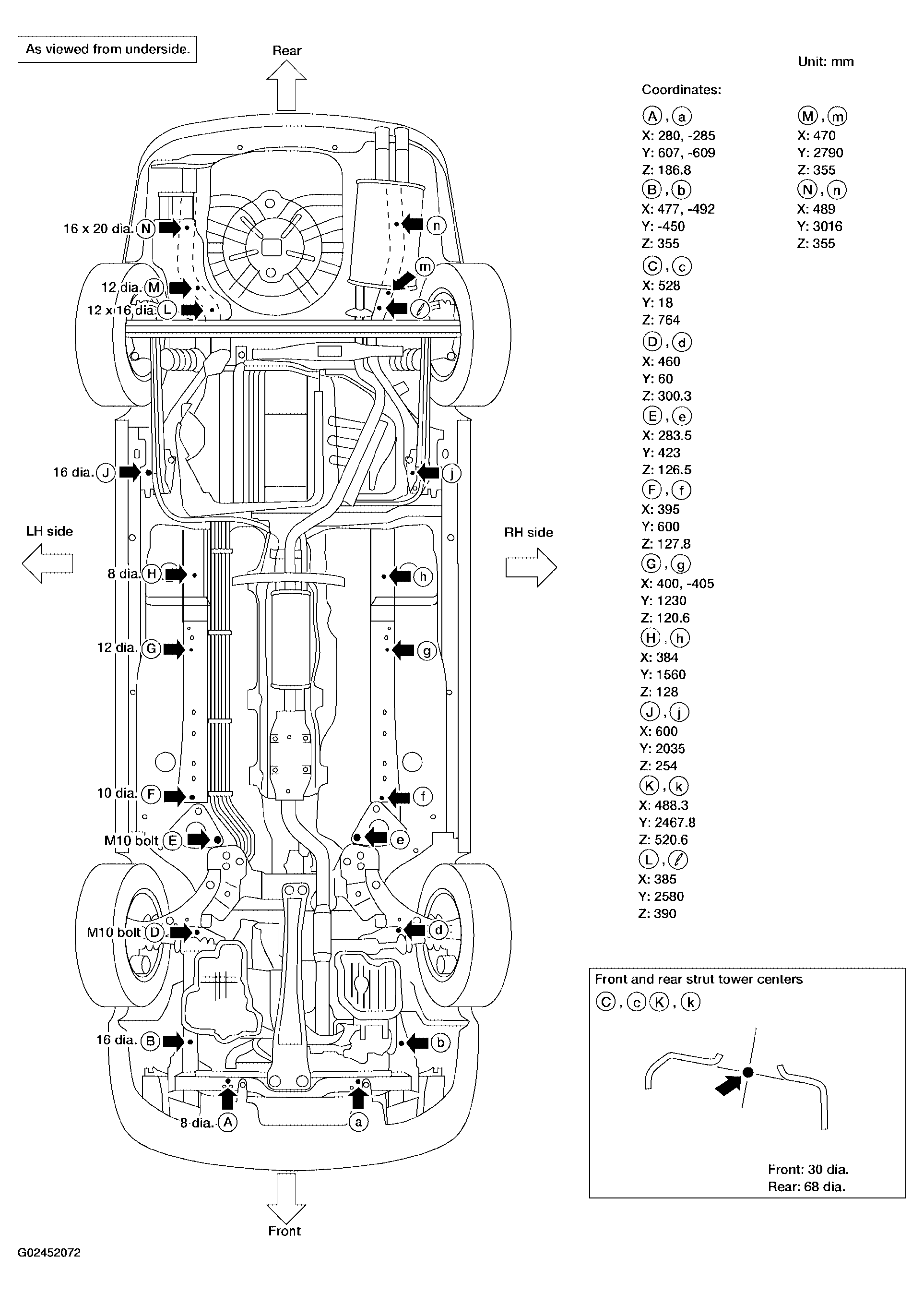

Fig 1: Underbody Measurement
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
