Door
›
Front Door
Front Door
For removal of door finisher, refer to "
REMOVAL AND INSTALLATION
".
After adjusting the door or door lock, check the door lock operation.

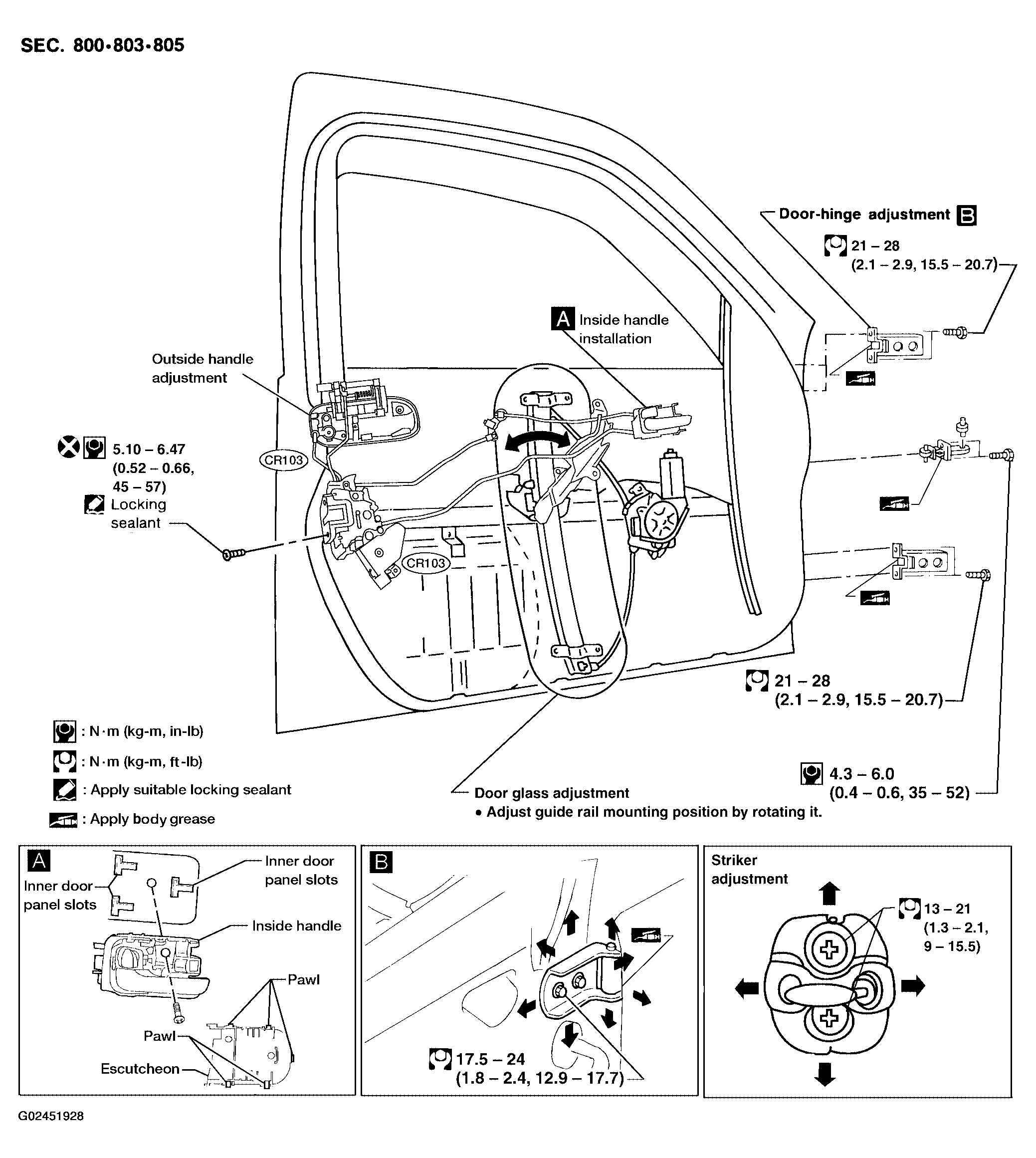

Fig 1: Exploded View Of Front Door Adjustments With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
