Power Door Lock: Schematic

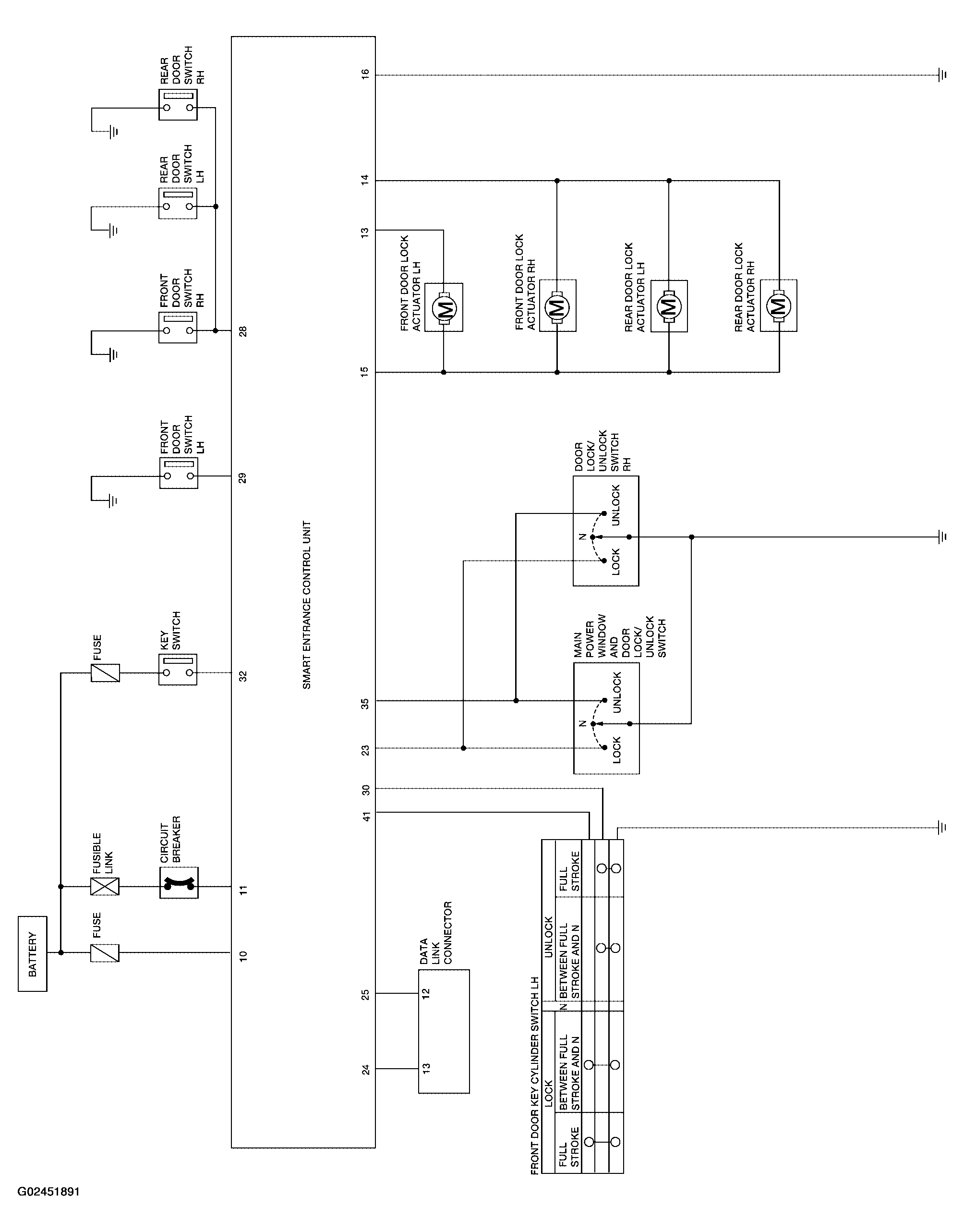

Fig 1: Power Door Lock - Schematic Diagram

G02451891

Courtesy of NISSAN MOTOR CO., U.S.A.
