Nissan-Datsun
›
2005
›
Sentra SE-R
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Body, Lock & Security System
›
Remote Keyless Entry System
›
Schematic
Remote Keyless Entry System: Schematic

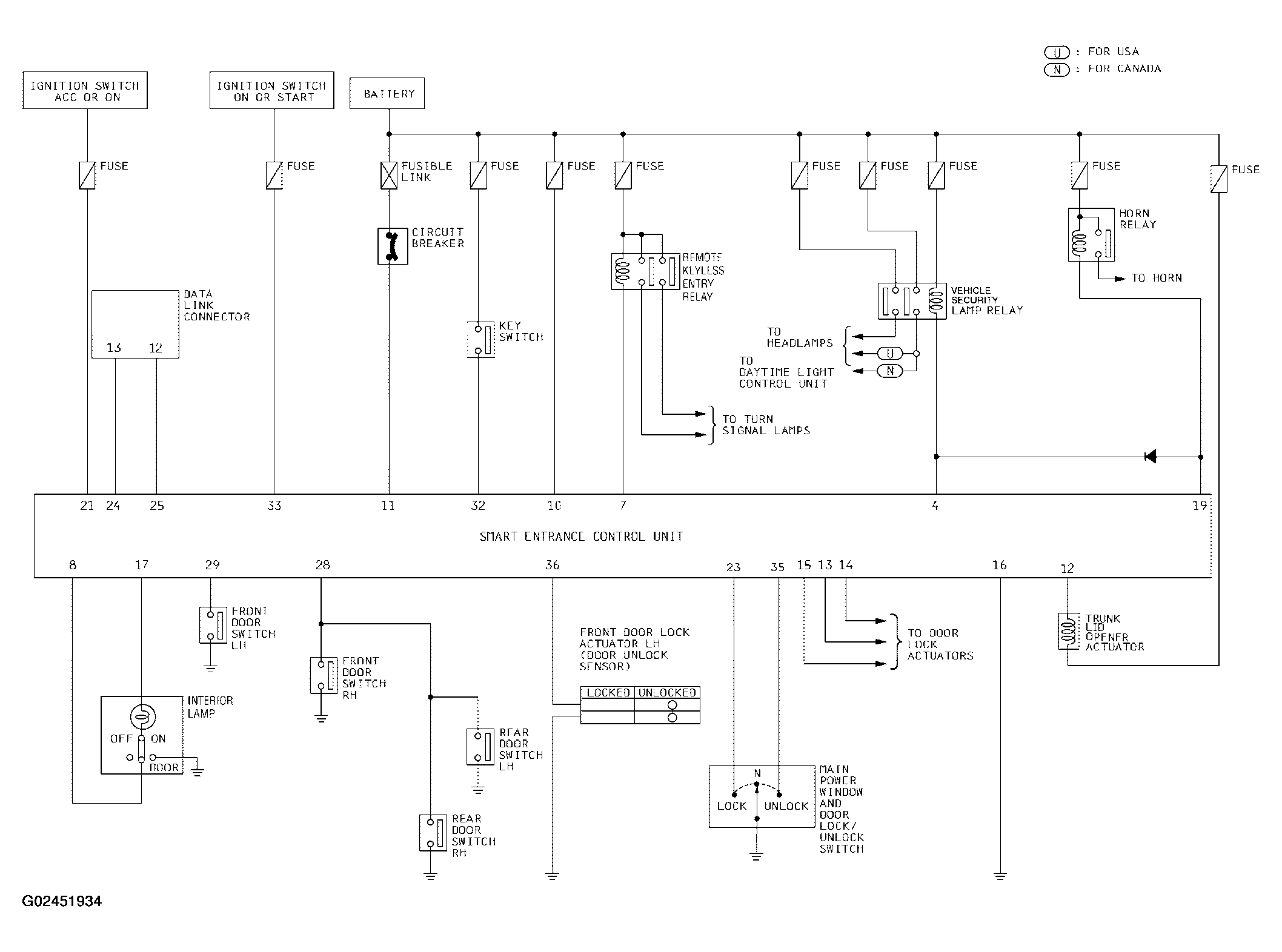

Fig 1: Remote Keyless Entry System - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
