Removal and Installation

CAUTION: Be careful not to scratch door mirror body.
  1. Remove door finisher. Refer to REMOVAL AND INSTALLATION .
  2. Remove inner cover from front corner of door.
  3. Disconnect door mirror harness connector.
  4. Remove three nuts securing door mirror assembly.

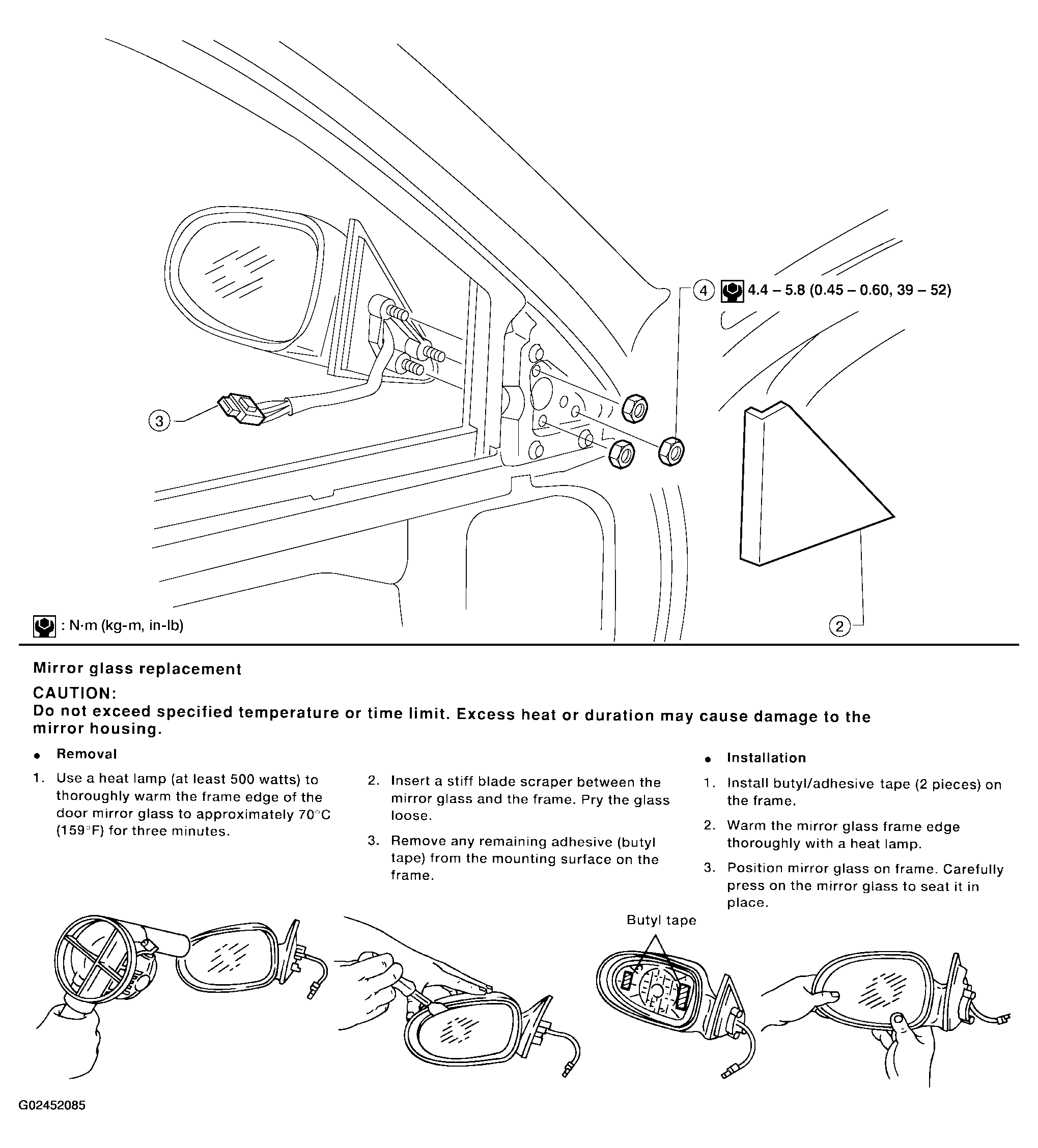

    Fig 1: Removing Nuts Securing Door Mirror Assembly With Torque Specifications
    G02452085Courtesy of NISSAN MOTOR CO., U.S.A.
