Wheel Hub And Knuckle: Components

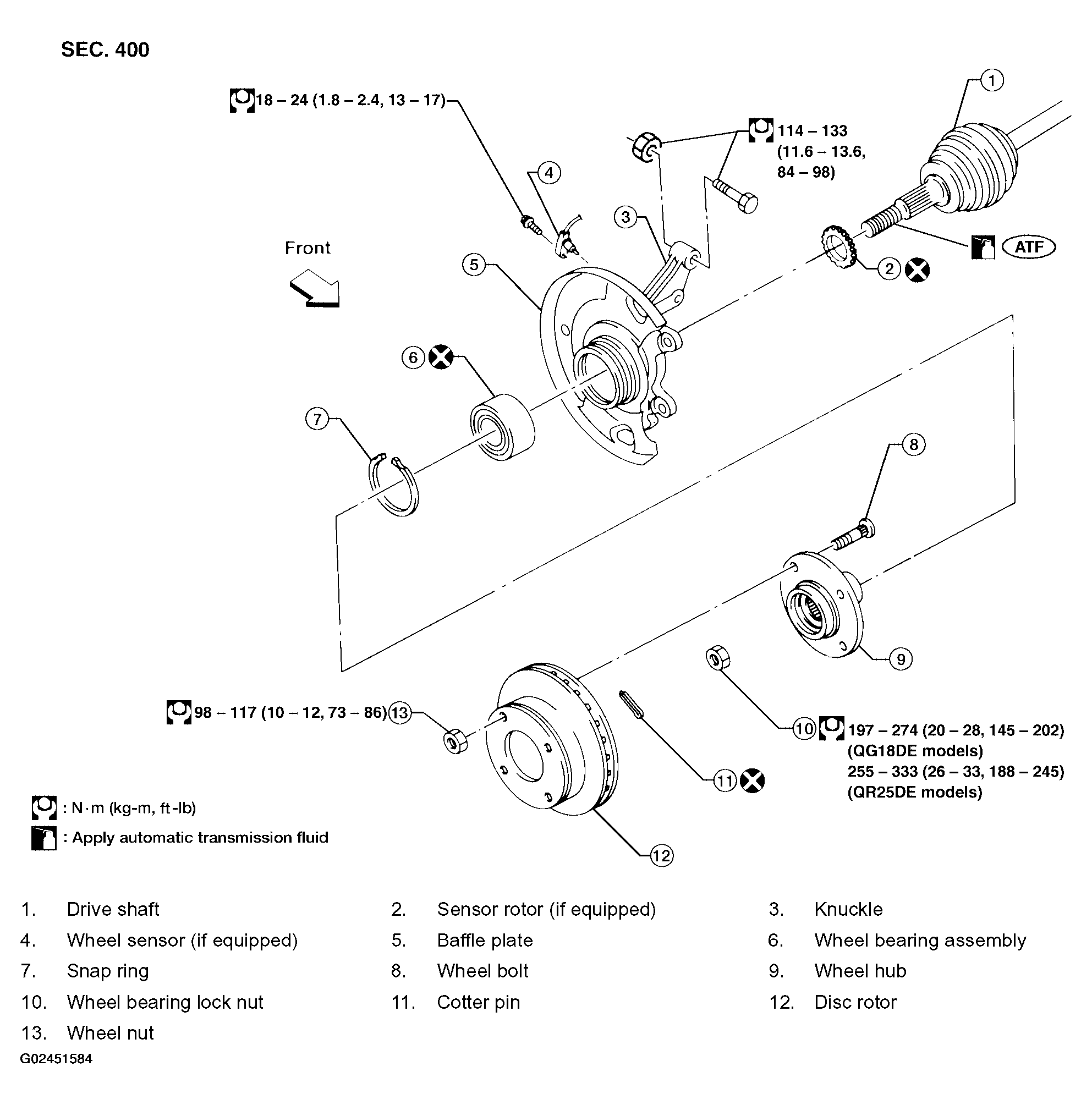

Fig 1: Wheel Hub & Knuckle Replacement Components With Torque Specifications

G02451584

Courtesy of NISSAN MOTOR CO., U.S.A.
