Service Data And Specifications (SDS): Generator

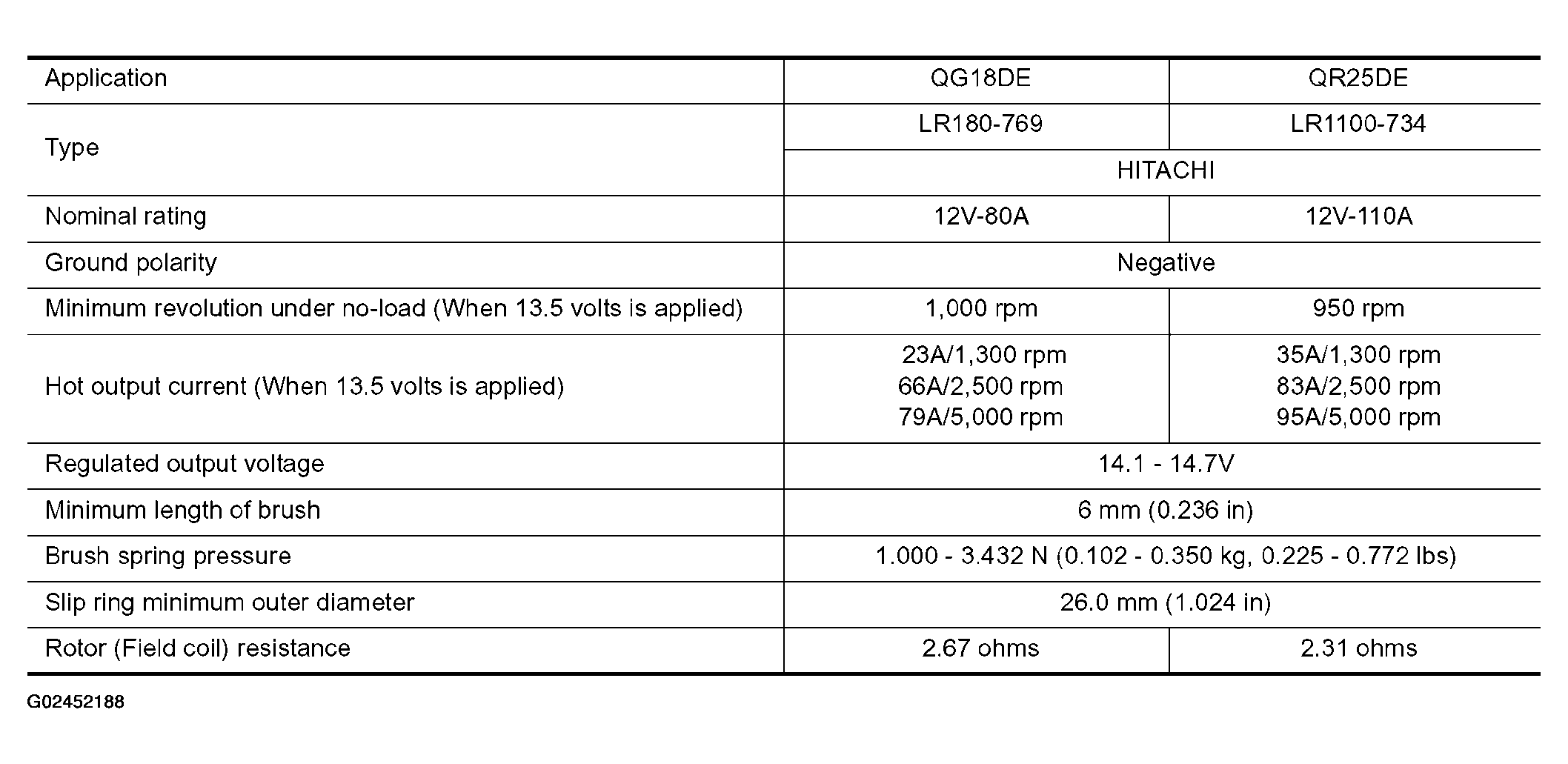

Fig 1: Generator Specification Chart
G02452188Courtesy of NISSAN MOTOR CO., U.S.A.
