Starting & Charging System
›
Starter
›
Wiring Diagram - START
›
M/T Model
M/T Model

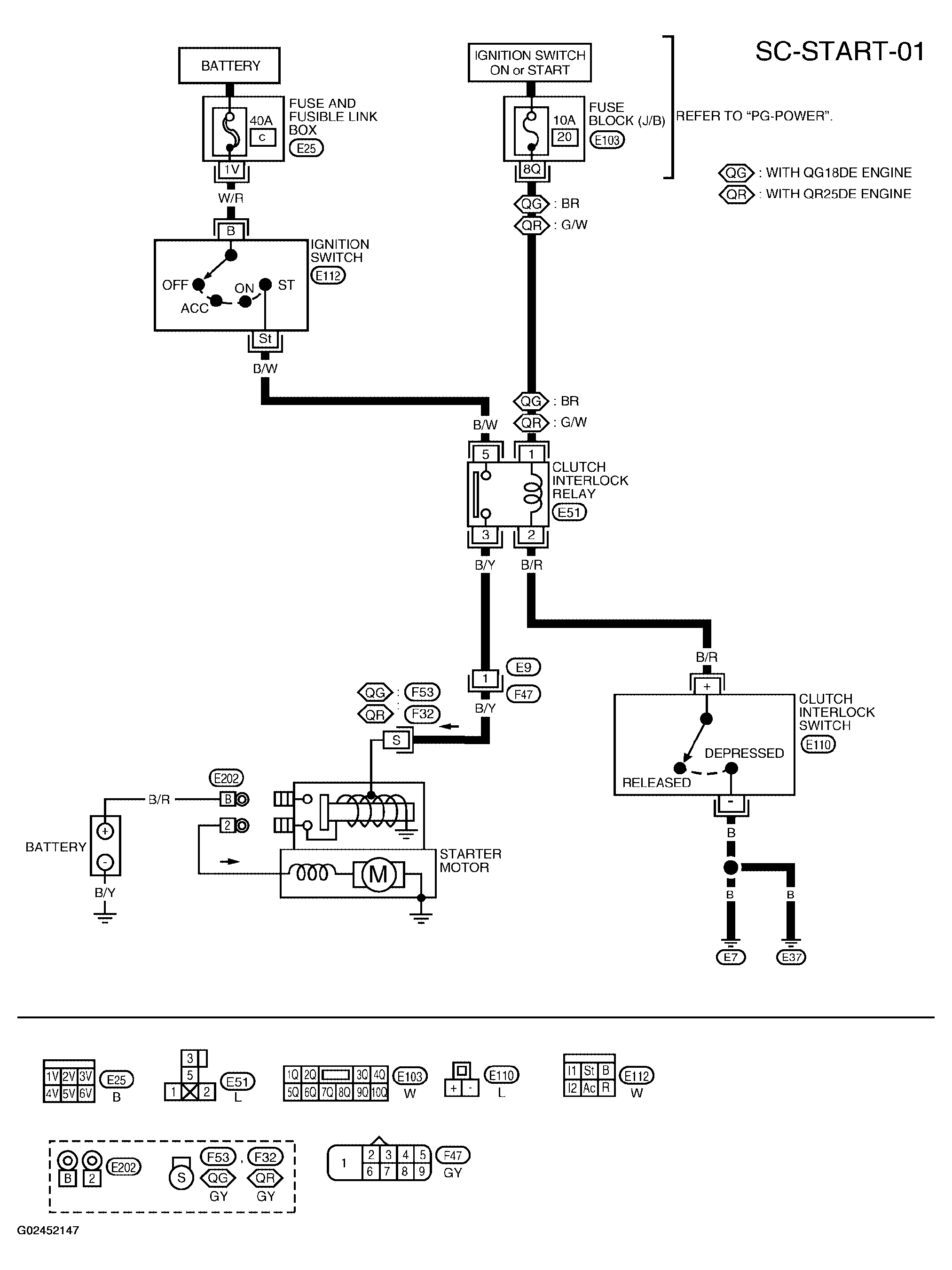

Fig 1: Wiring Diagram - Starter Circuit, M/T Model (SC-START-01)
