Sentra SE-R
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Driver Information System
›
Board Computer
›
Wiring Diagram - B/COMP -
Wiring Diagram - B/COMP -

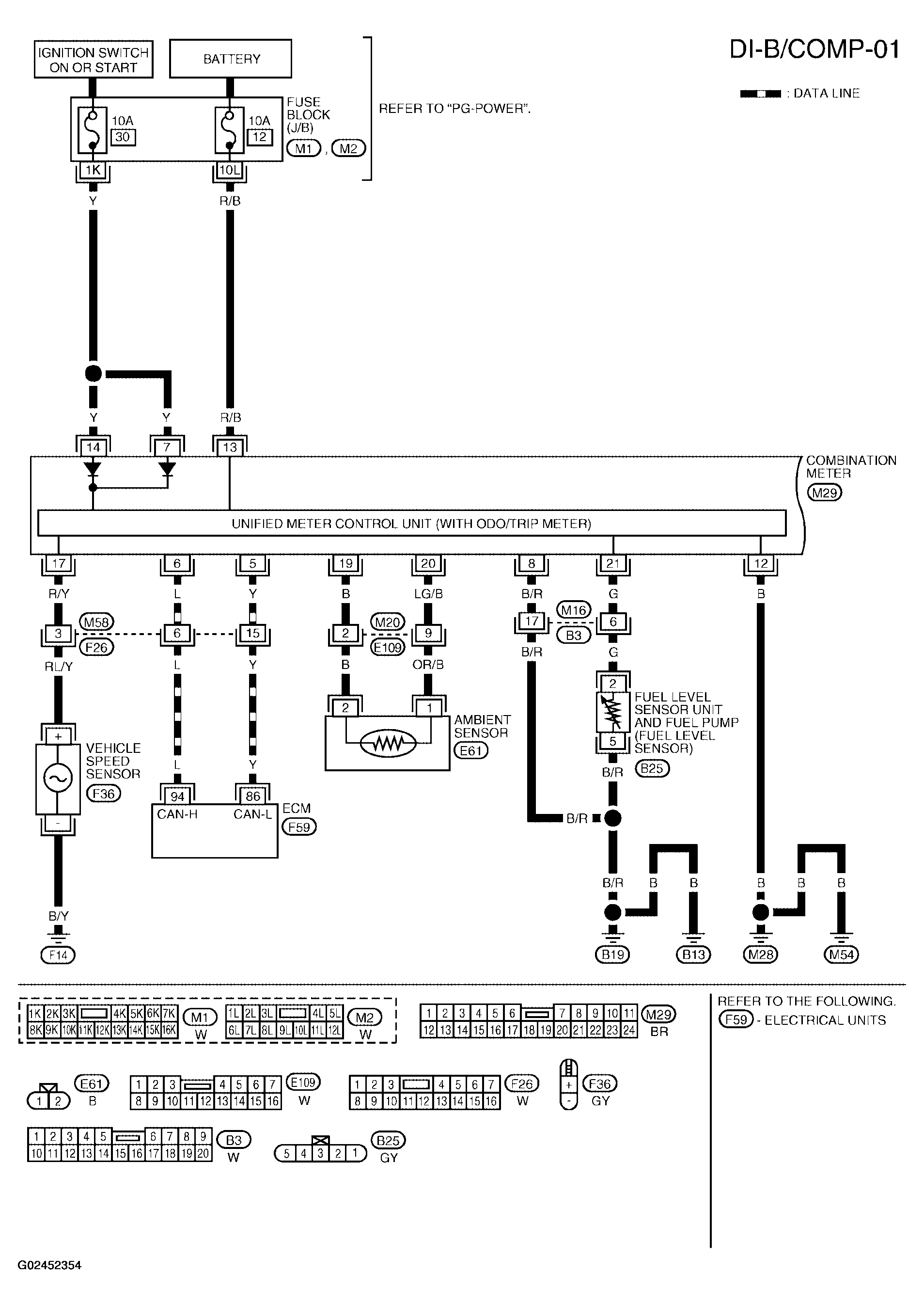

Fig 1: Wiring Diagram - DI-B/COMP-01
