Notes
Disassembly and Assembly: Notes

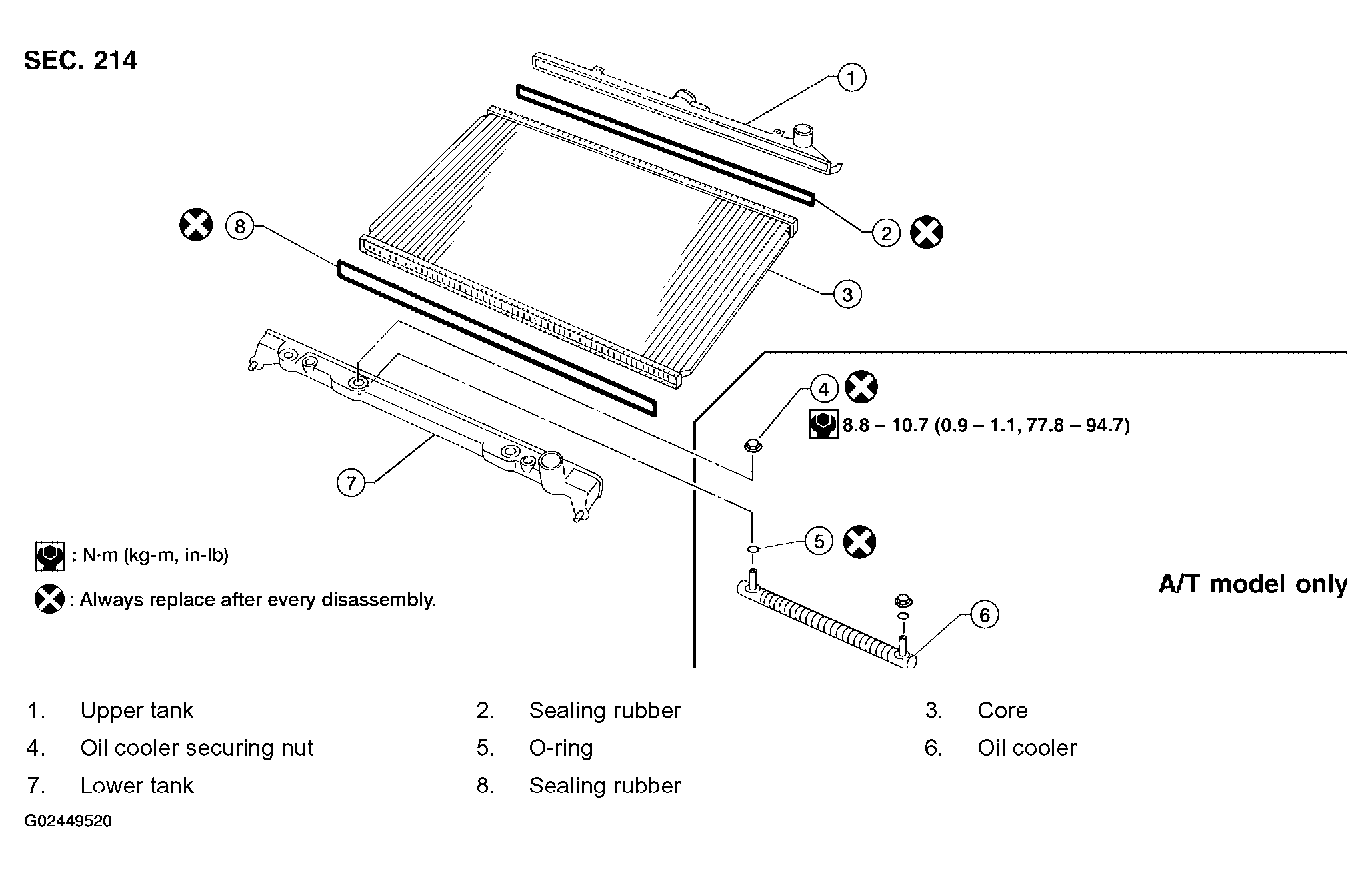

Fig 1: Installing Radiator (QR25DE Engine, With Torque Specifications)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
