Engine Lubrication System - QR25DE
›
Lubrication System
›
Lubrication Circuit
Lubrication Circuit

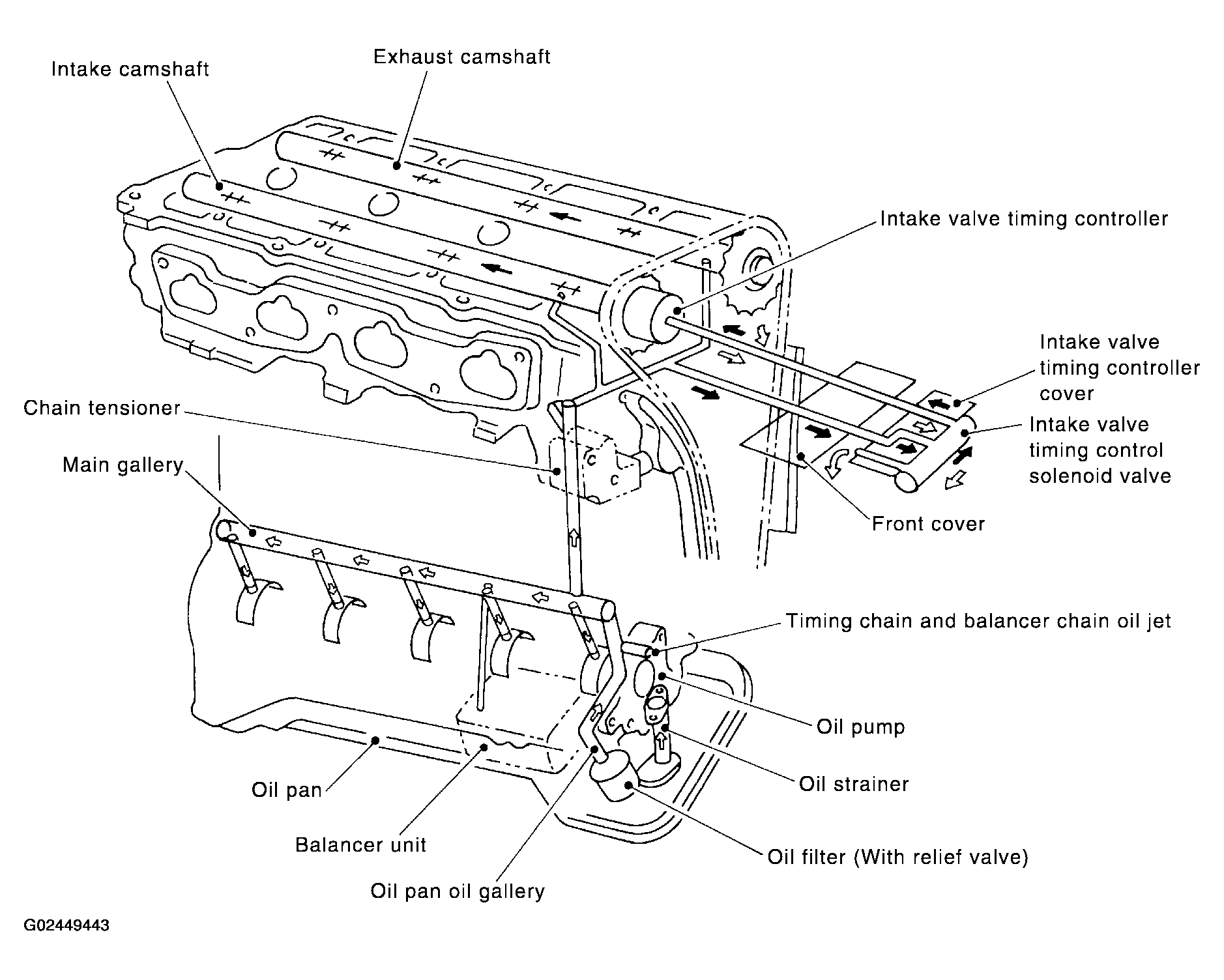

Fig 1: Lubrication Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
