Disassembly and Assembly: Notes

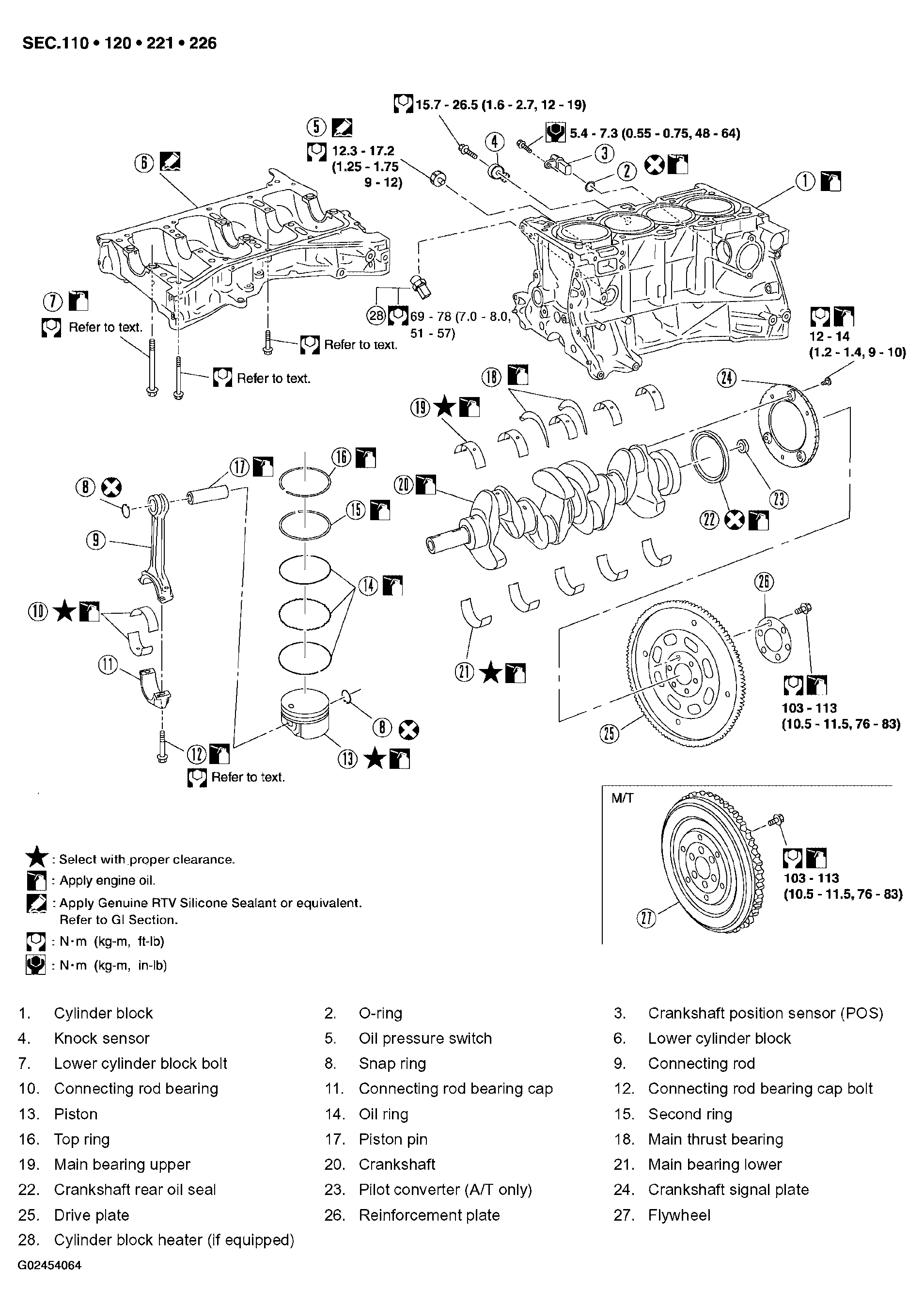

Fig 1: Exploded View Of Cylinder Block With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
