Engine Control System - DTCS P1143 To P2138 (Qr25DE)
›
DTC P1143: Ho2S1
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

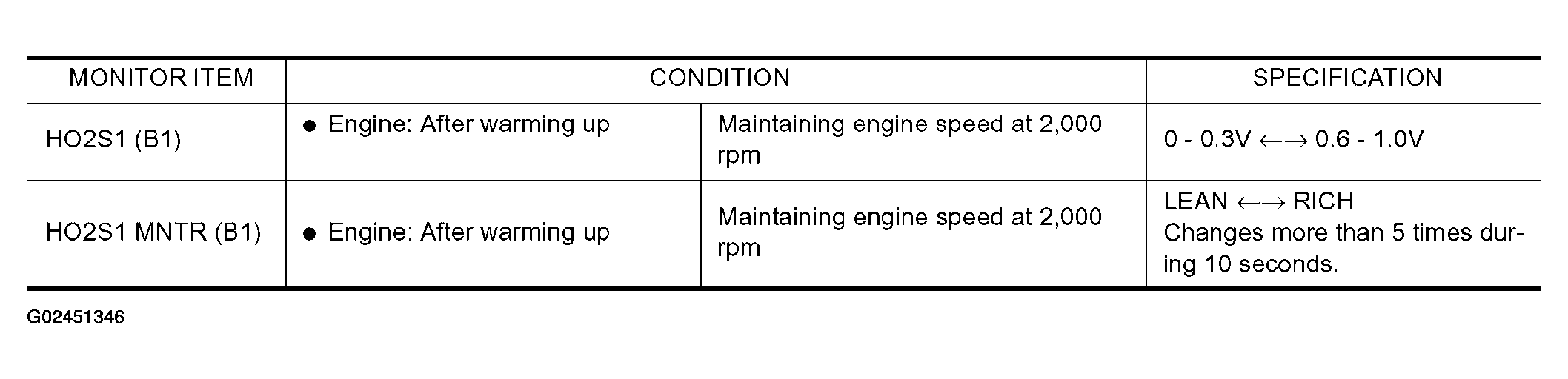

Fig 1: CONSULT-II Reference Value Chart - HO2S1 Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
