Engine Control System - DTCS U1000 To P0335 (Qr25DE)
›
DTC P0171: Fuel Injection System Function
›
Wiring Diagram
›
A/T Models ULEV And M/T Models
A/T Models ULEV And M/T Models

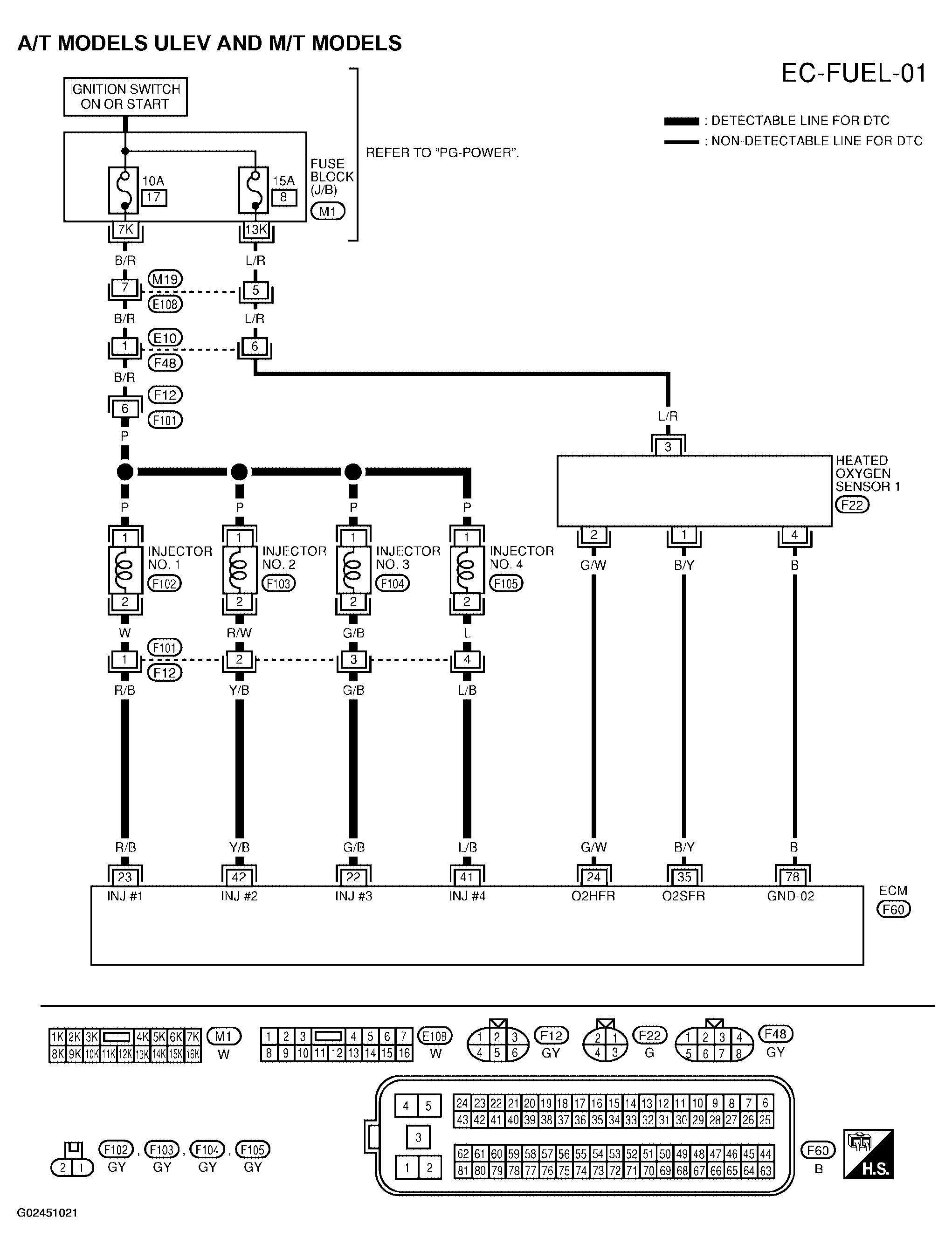

Fig 1: Wiring Diagram - Fuel Injection System, A/T Models ULEV And M/T Models (EC-FUEL-01)
