Evaporative Emission Line Drawing

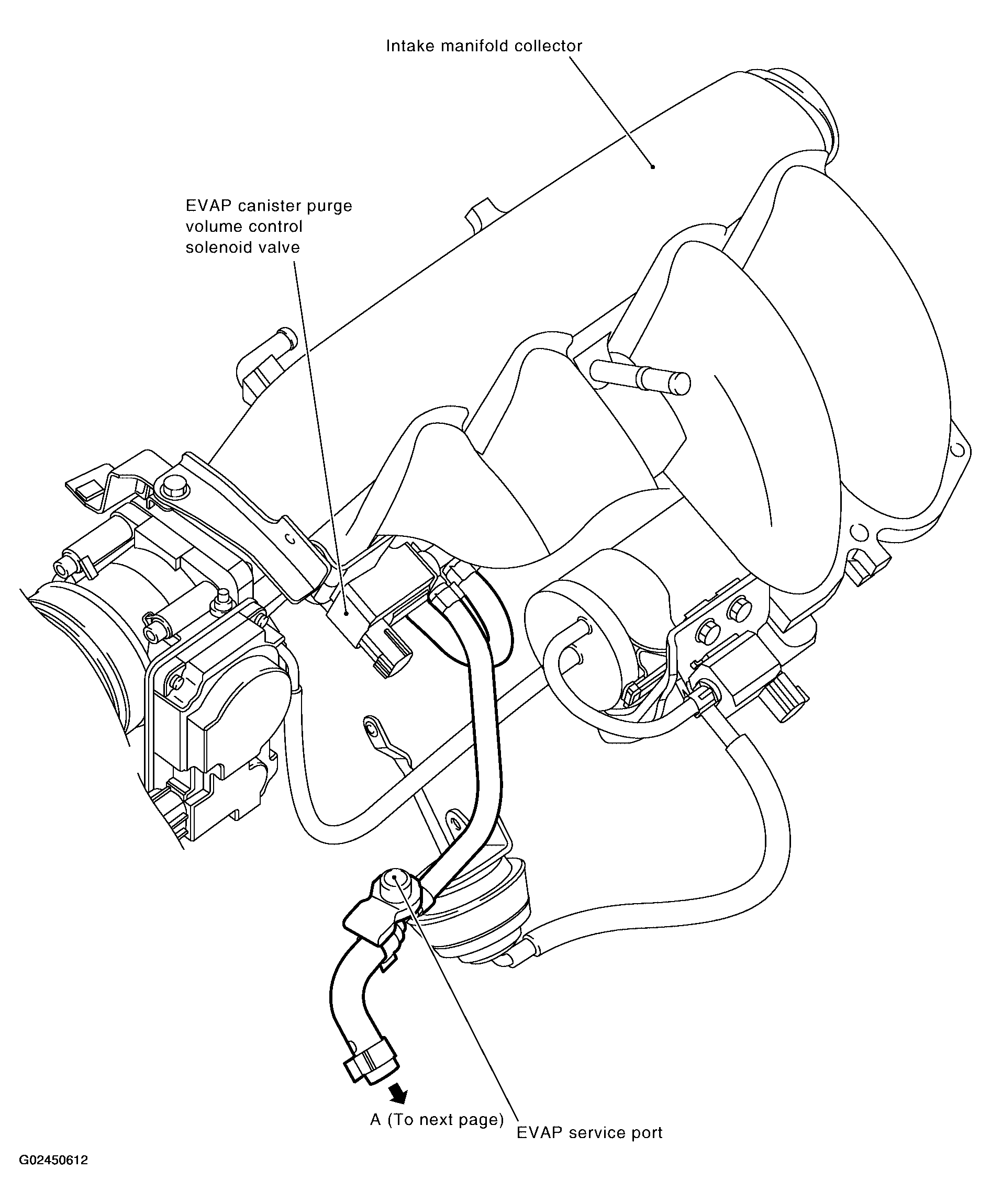

Fig 1: Evaporative Emission System Components (On Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

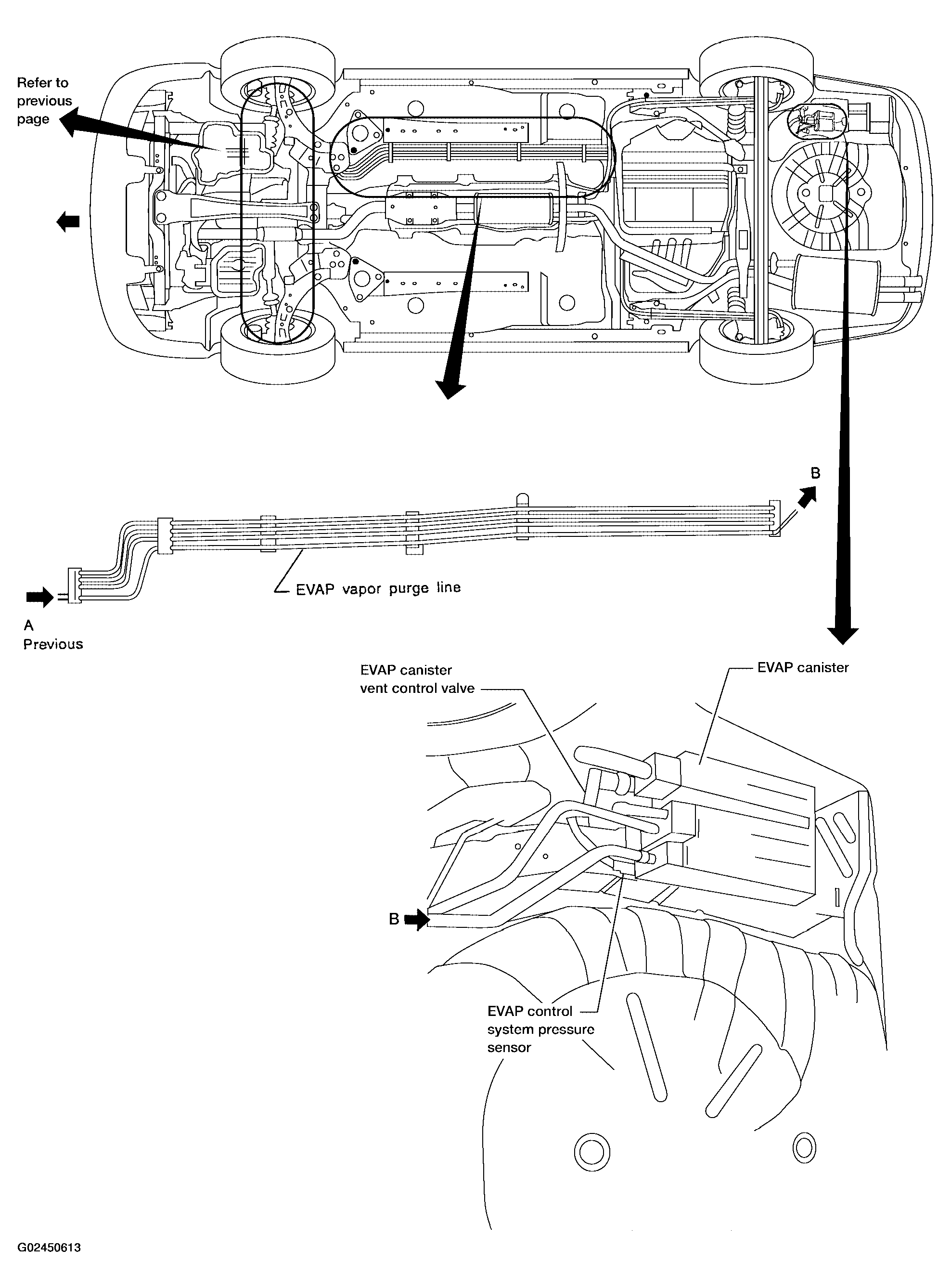

Fig 2: Evaporative Emission System Components (Under Vehicle)

Courtesy of NISSAN MOTOR CO., U.S.A.
