Engine Control System - Introduction (Qr25DE)
›
Trouble Diagnosis
›
Circuit Diagram
›
A/T Models Except ULEV
A/T Models Except ULEV

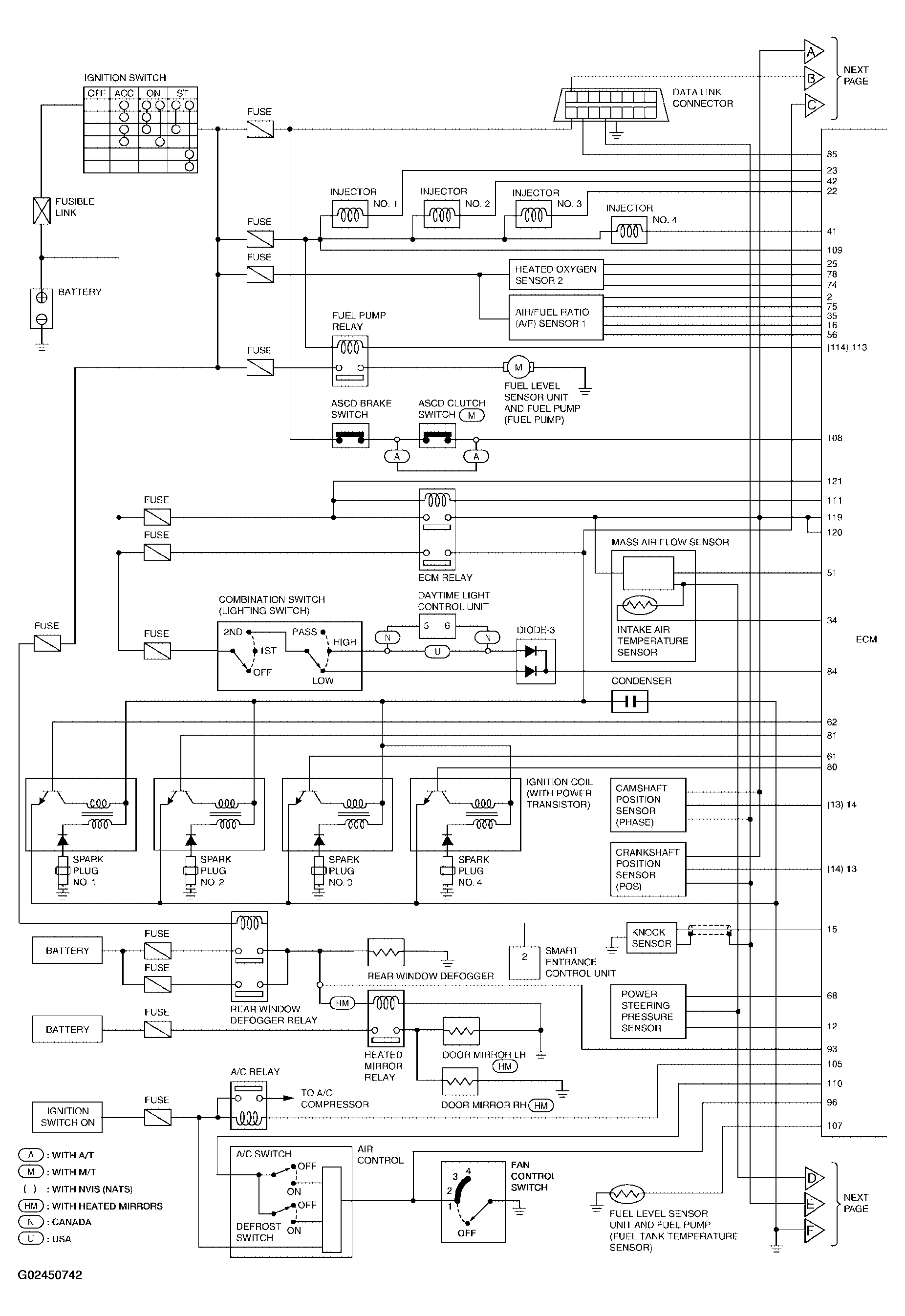

Fig 1: Engine Control System Circuit Diagram - A/T Models Except ULEV (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

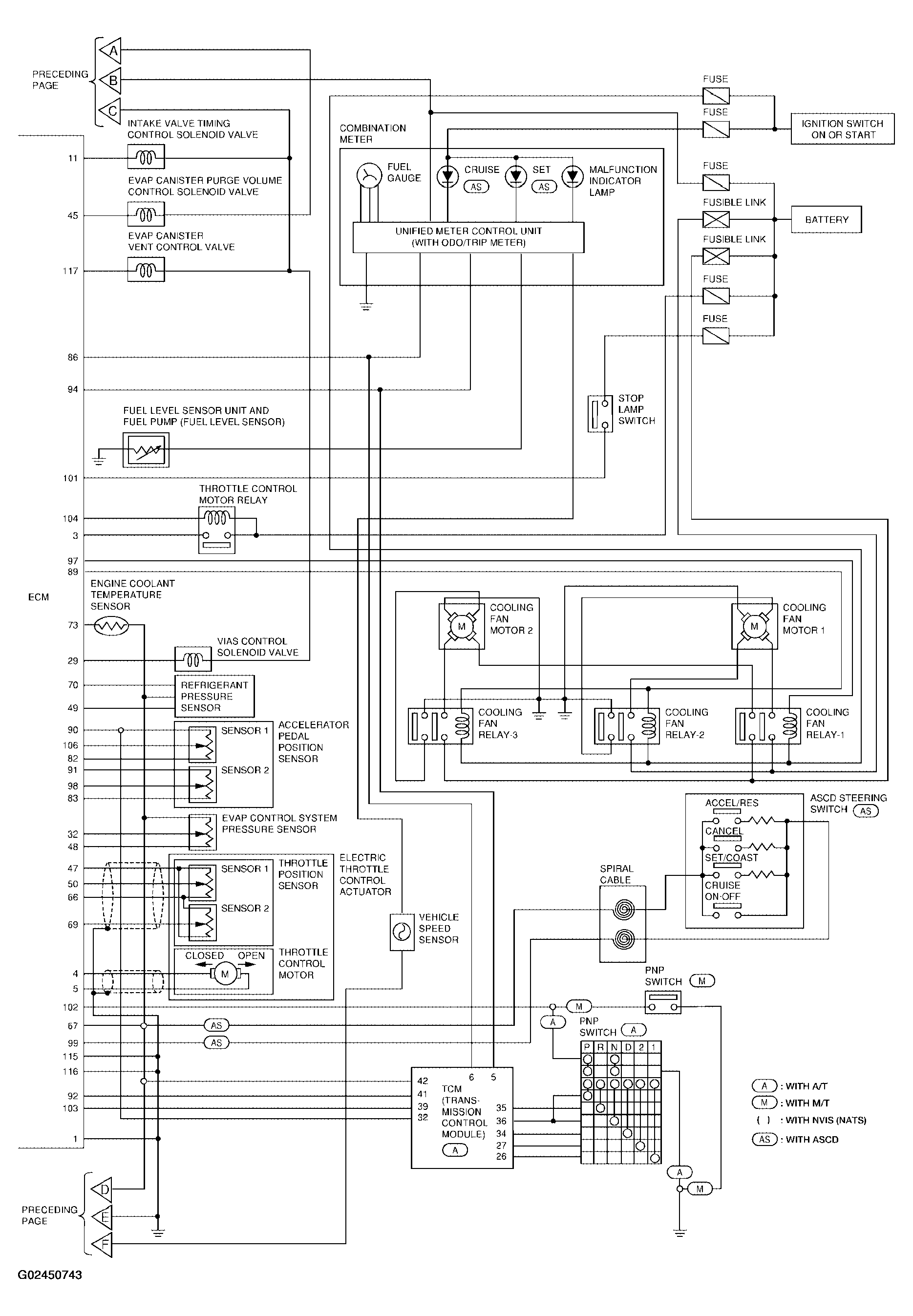

Fig 2: Engine Control System Circuit Diagram - A/T Models Except ULEV (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
