A/T Models ULEV And M/T Models

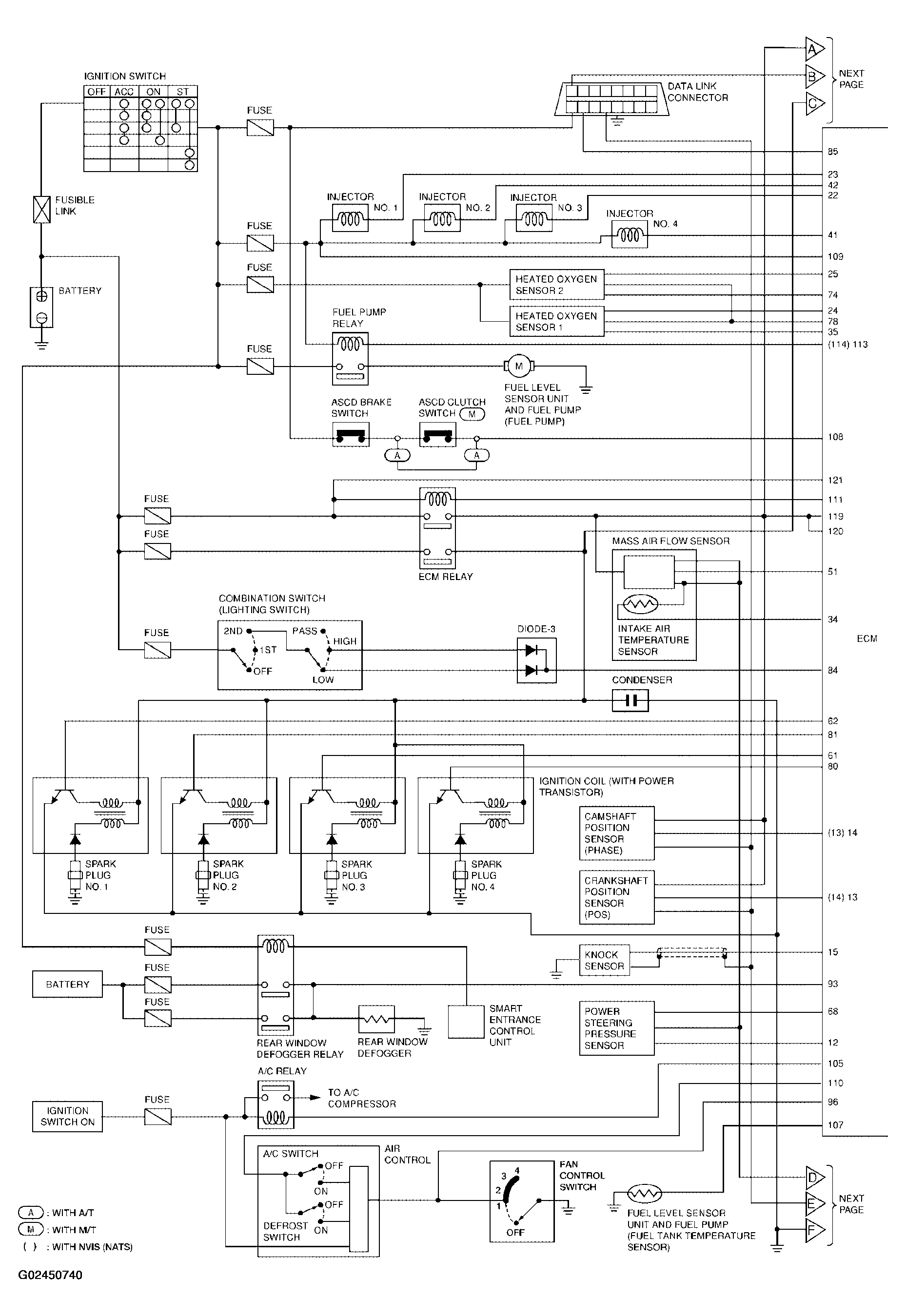

Fig 1: Engine Control System Circuit Diagram - A/T Models ULEV And M/T Models (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

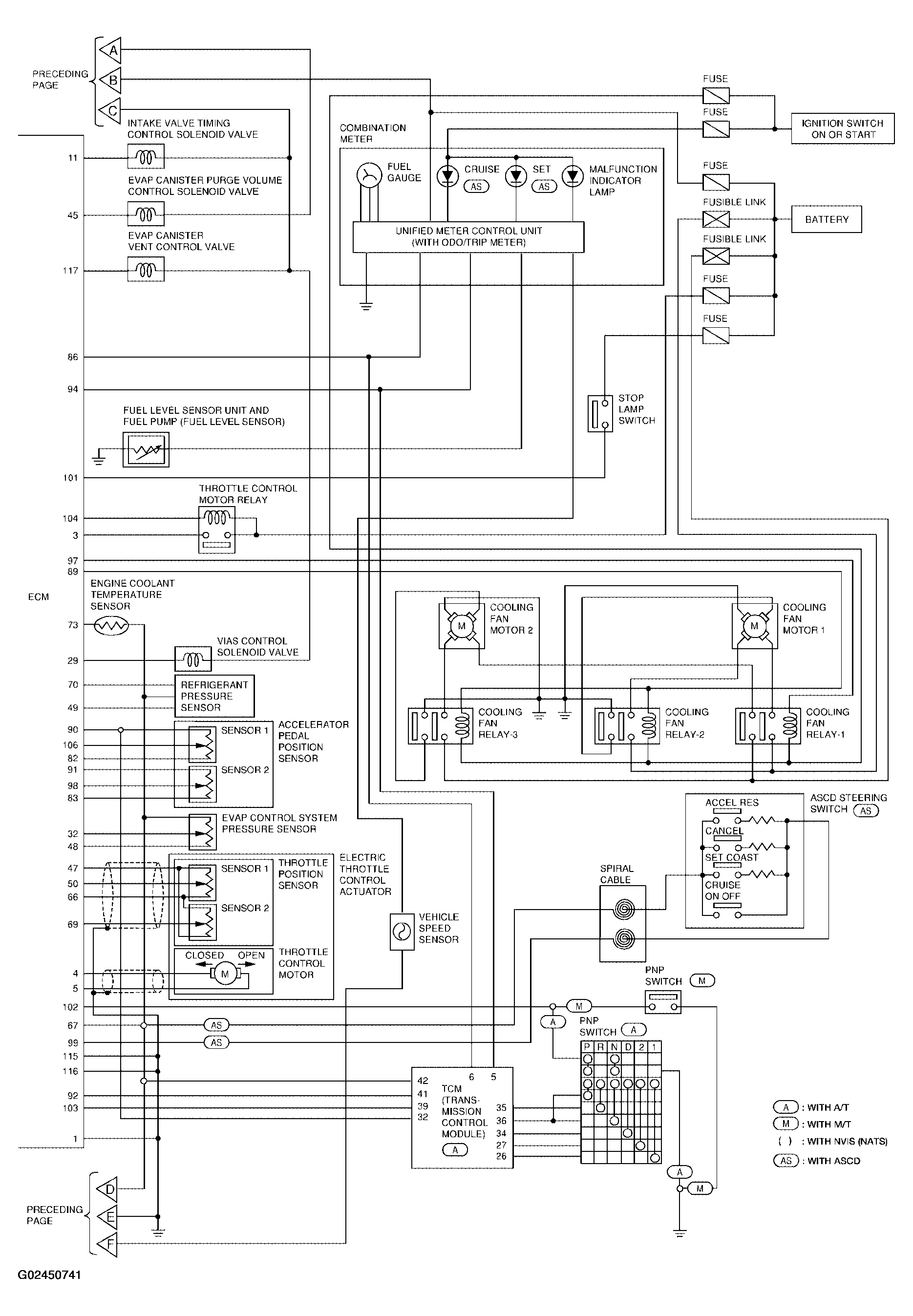

Fig 2: Engine Control System Circuit Diagram - A/T Models ULEV And M/T Models (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
