Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install return spring to striking rod assembly.
CAUTION: Be careful with the orientation of return spring.

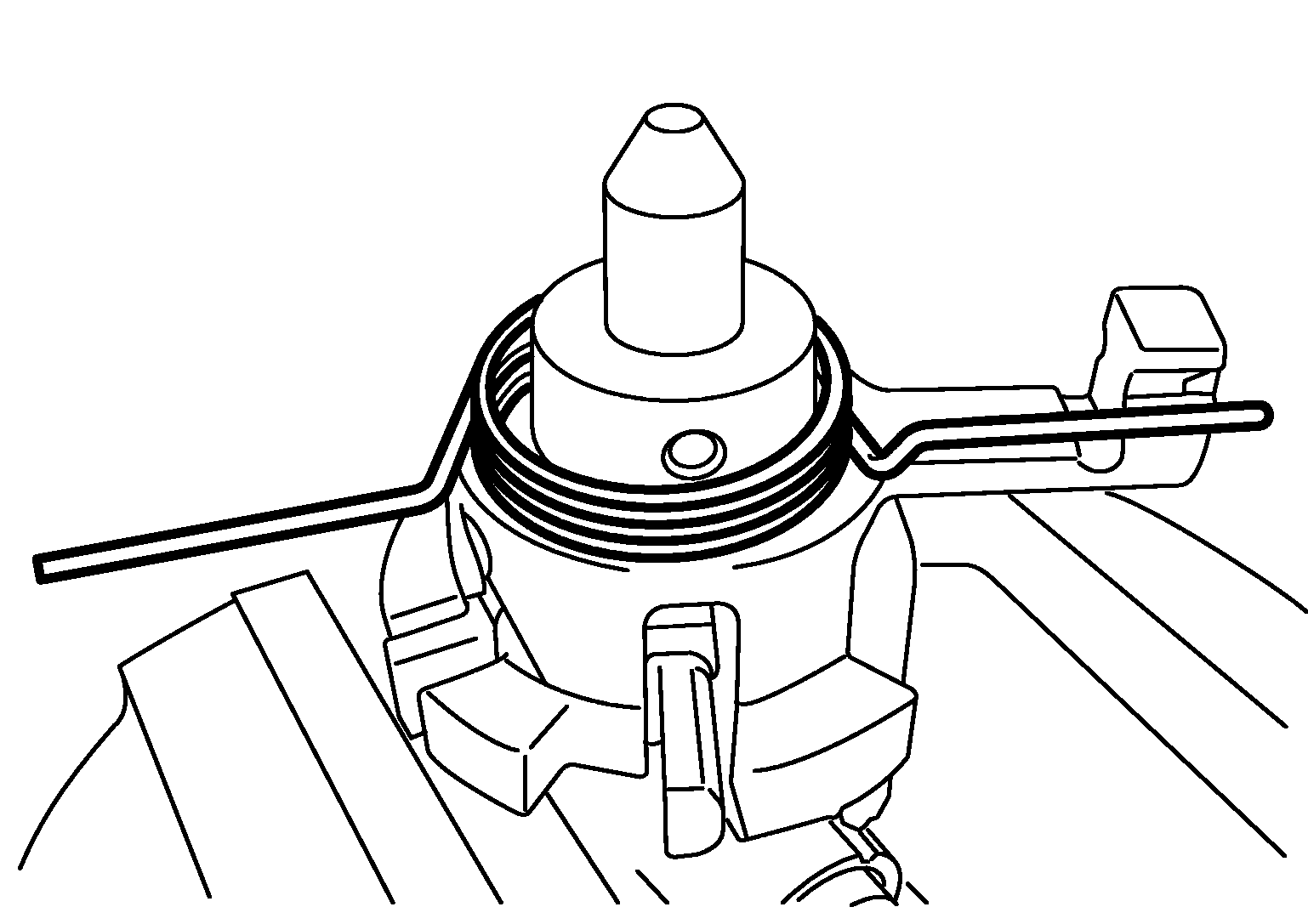

Fig 1: Identifying Return Spring
Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.

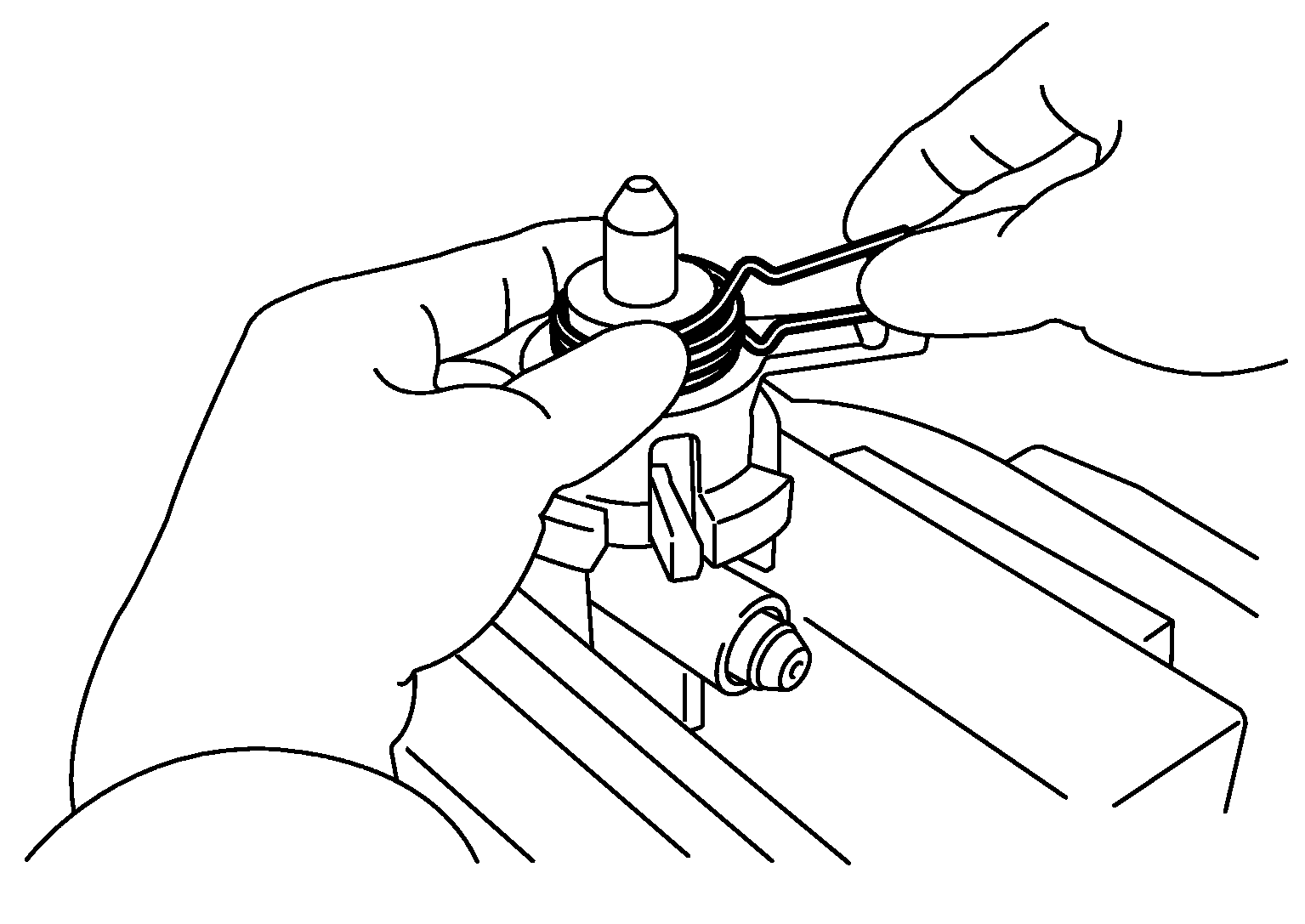

Fig 2: Attaching End Of Return Spring To Striking Interlock Of Striking Rod Assembly
CAUTION:
- When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.

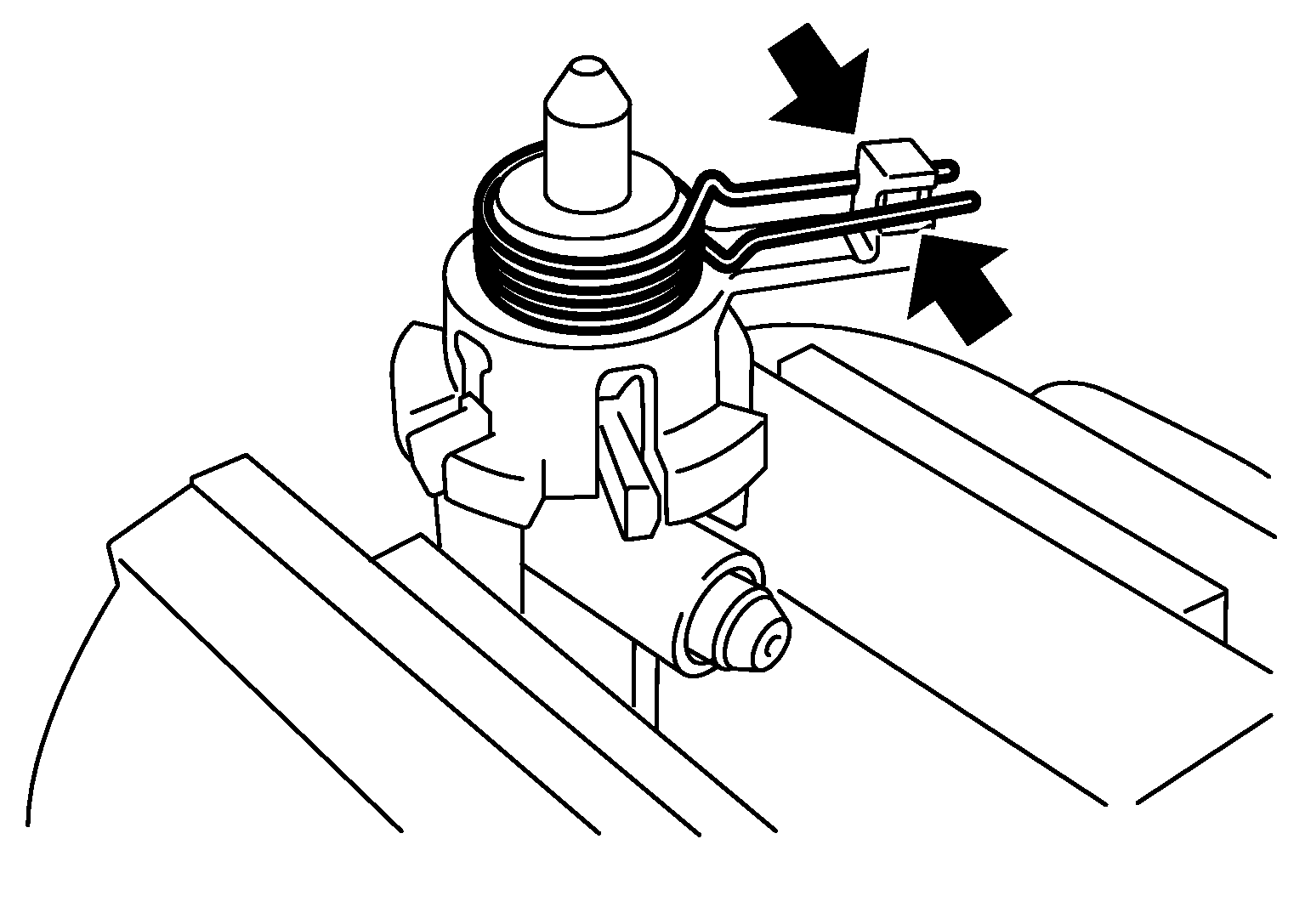

Fig 3: Checking Return Spring Seat
