Gear Components

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

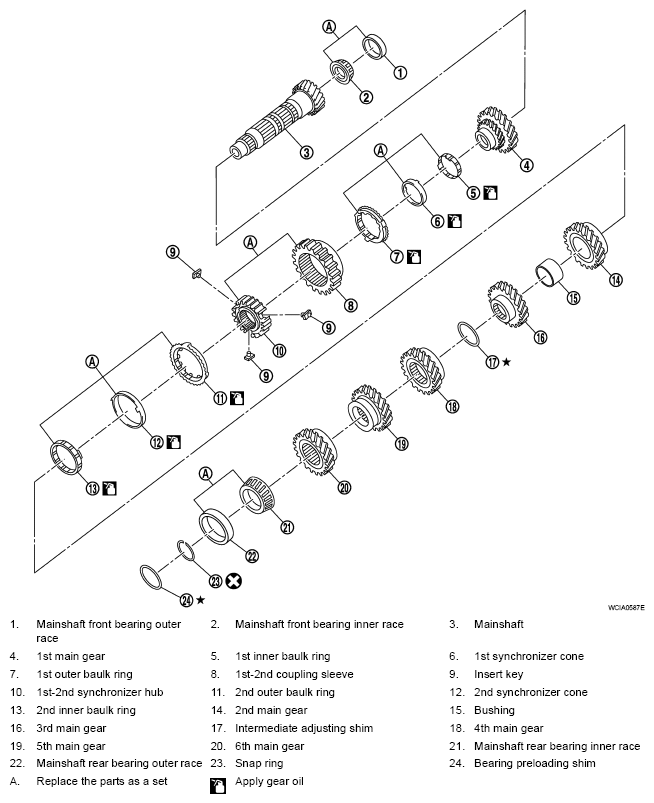

Fig 1: Identifying Gear Components (1 Of 3)

Refer to "COMPONENTS " for symbols not described on the above.

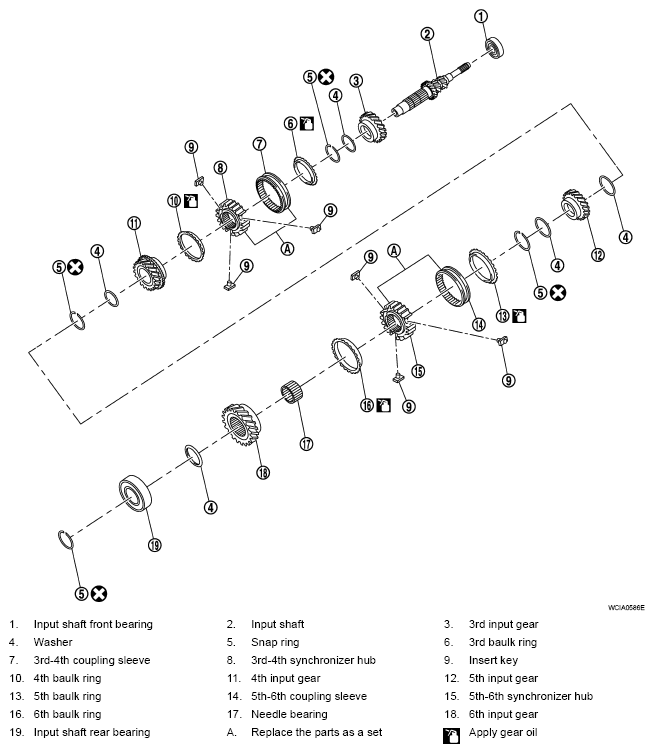

Fig 2: Identifying Gear Components (2 Of 3)

Refer to "COMPONENTS " for symbols not described on the above.

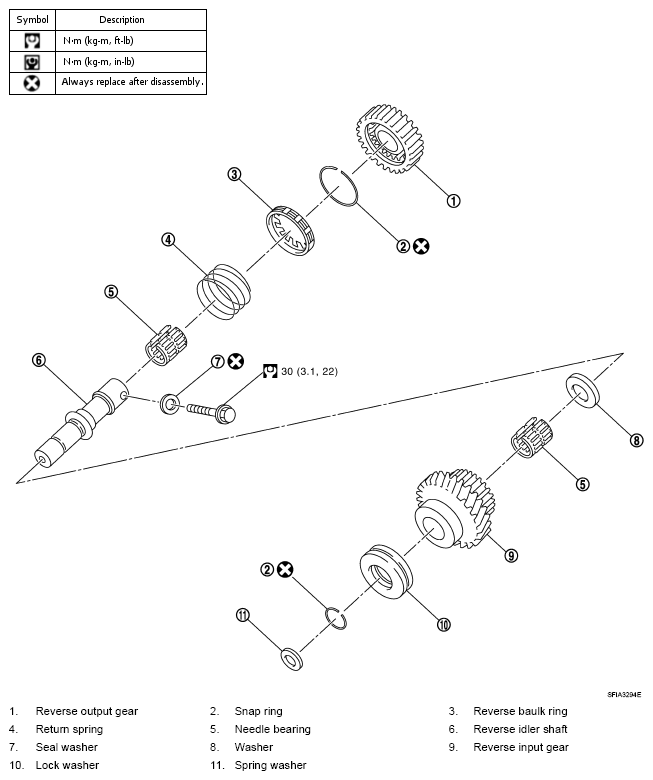

Fig 3: Gear Replacement Components With Torque Specifications (3 Of 3)

Refer to "COMPONENTS " for the symbols in the figure.
