Can Communication System Description: Wiring Diagram

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

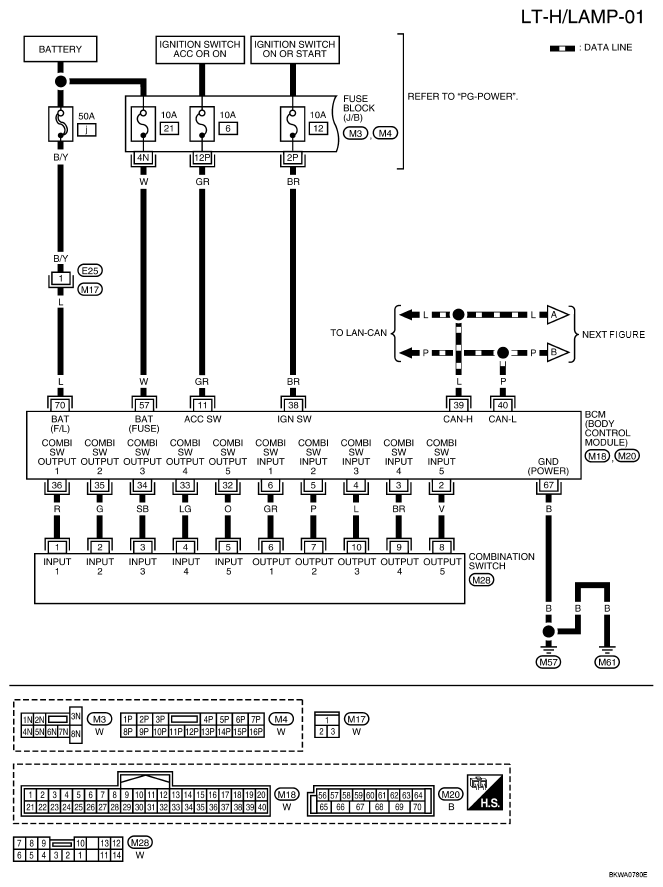

Fig 1: Wiring Diagram - LT-H/LAMP-01

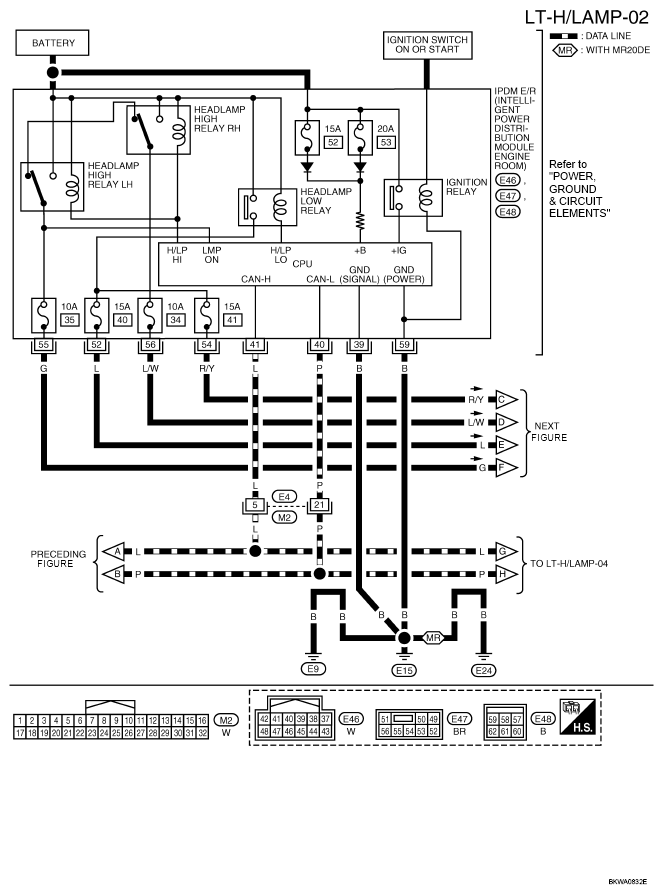

Fig 2: Wiring Diagram - LT-H/LAMP-02

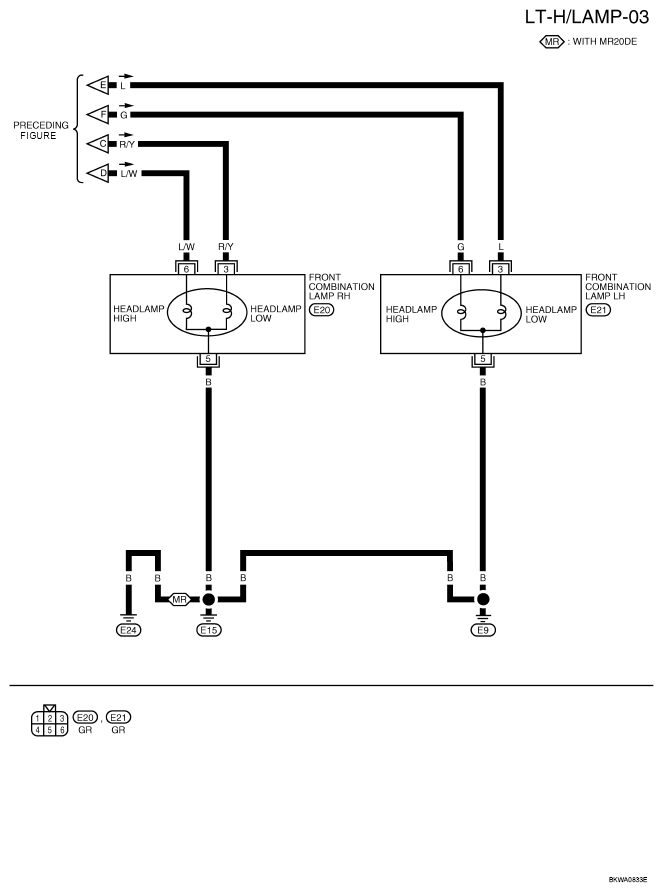

Fig 3: Wiring Diagram - LT-H/LAMP-03

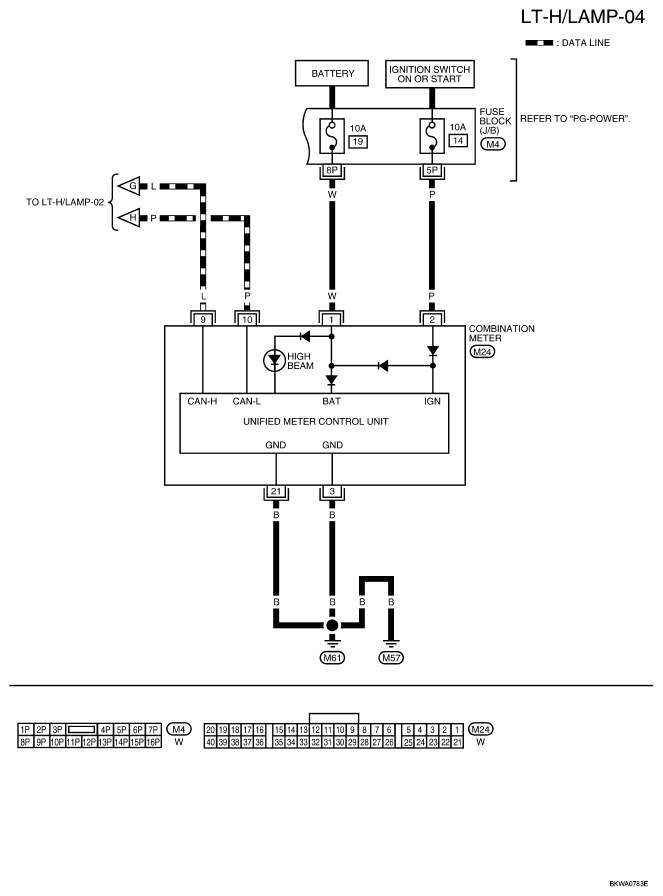

Fig 4: Wiring Diagram - LT-H/LAMP-04
