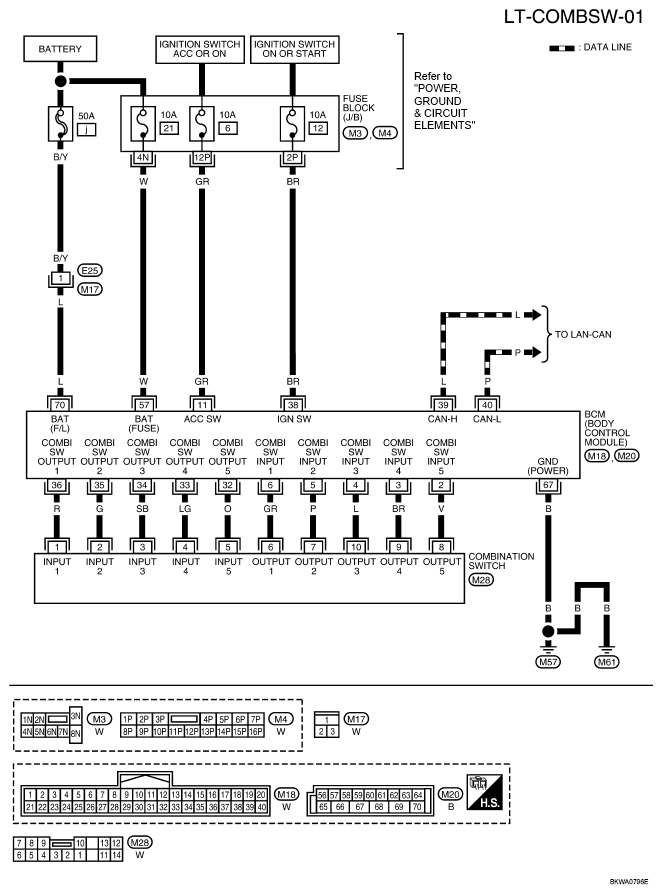

Wiring Diagram - COMBSW -
WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
