Section 28 (Lighting System)
›
Rear Combination Lamp
›
Components
Rear Combination Lamp: Components
WARNING:
This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

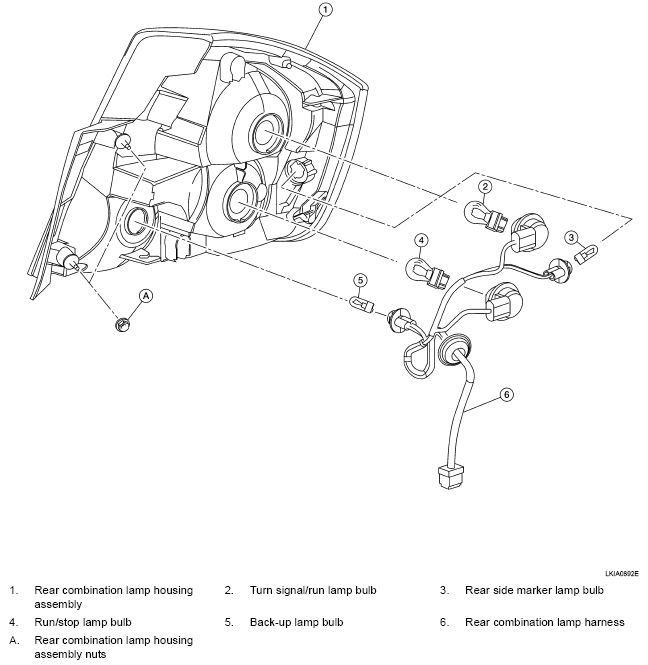

Fig 1: Identifying Rear Combination Lamp Components
