Refrigerant Lines: Components

WARNING: This page is about a different car, the 2007 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

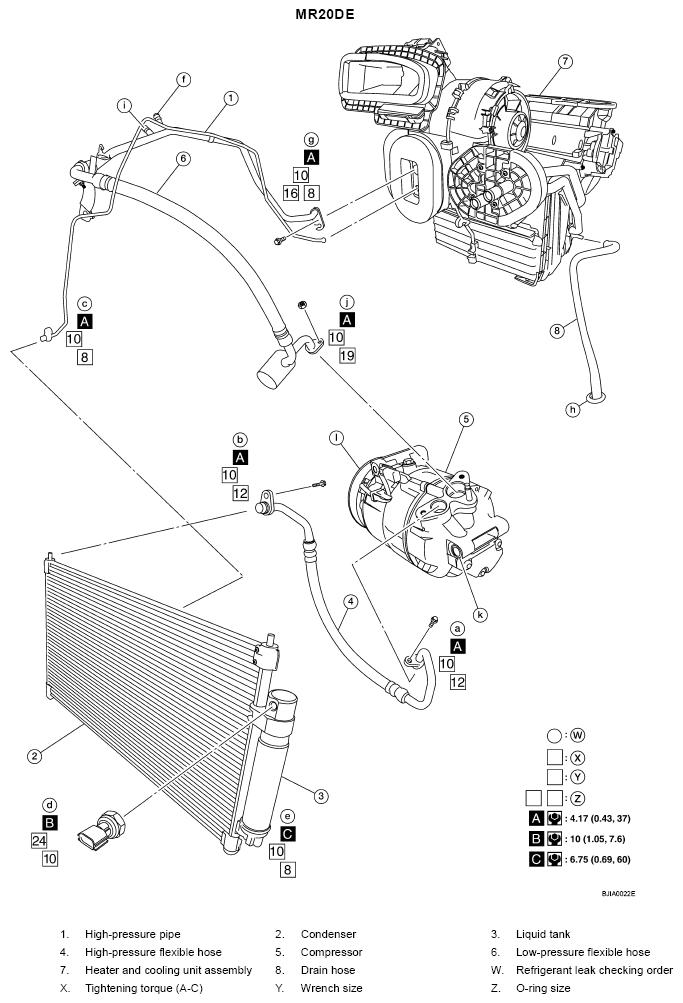

Fig 1: Refrigerant Replacement Components With Torque Specifications (MR20DE)
G04928218

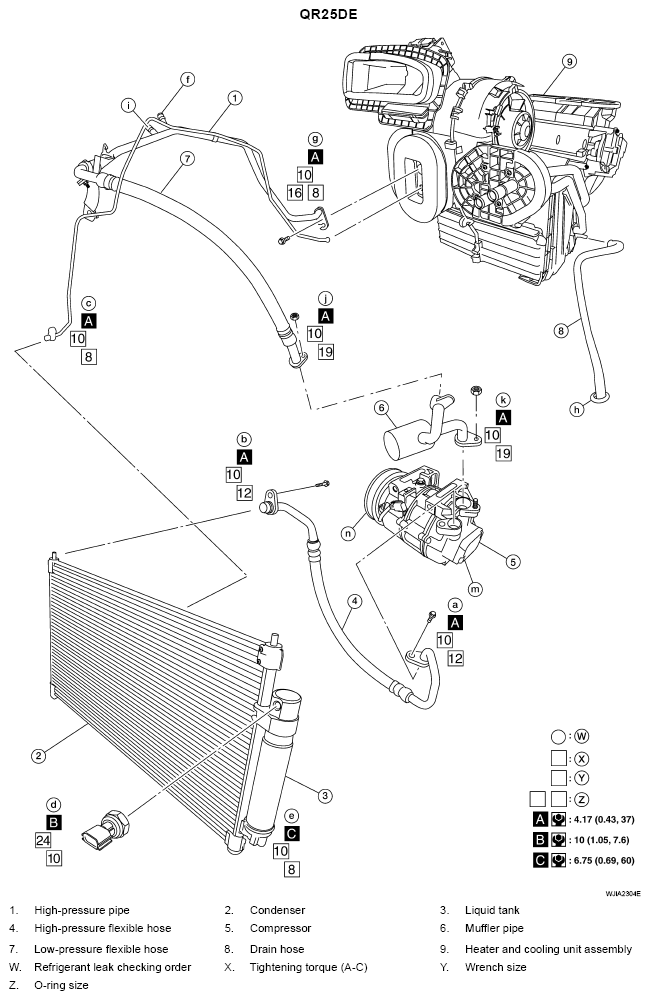

Fig 2: Refrigerant Replacement Components With Torque Specifications (QR25DE)
G04928219
NOTE: Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".
