SULEV Models

WARNING: This page is about a different variant/trim than selected.

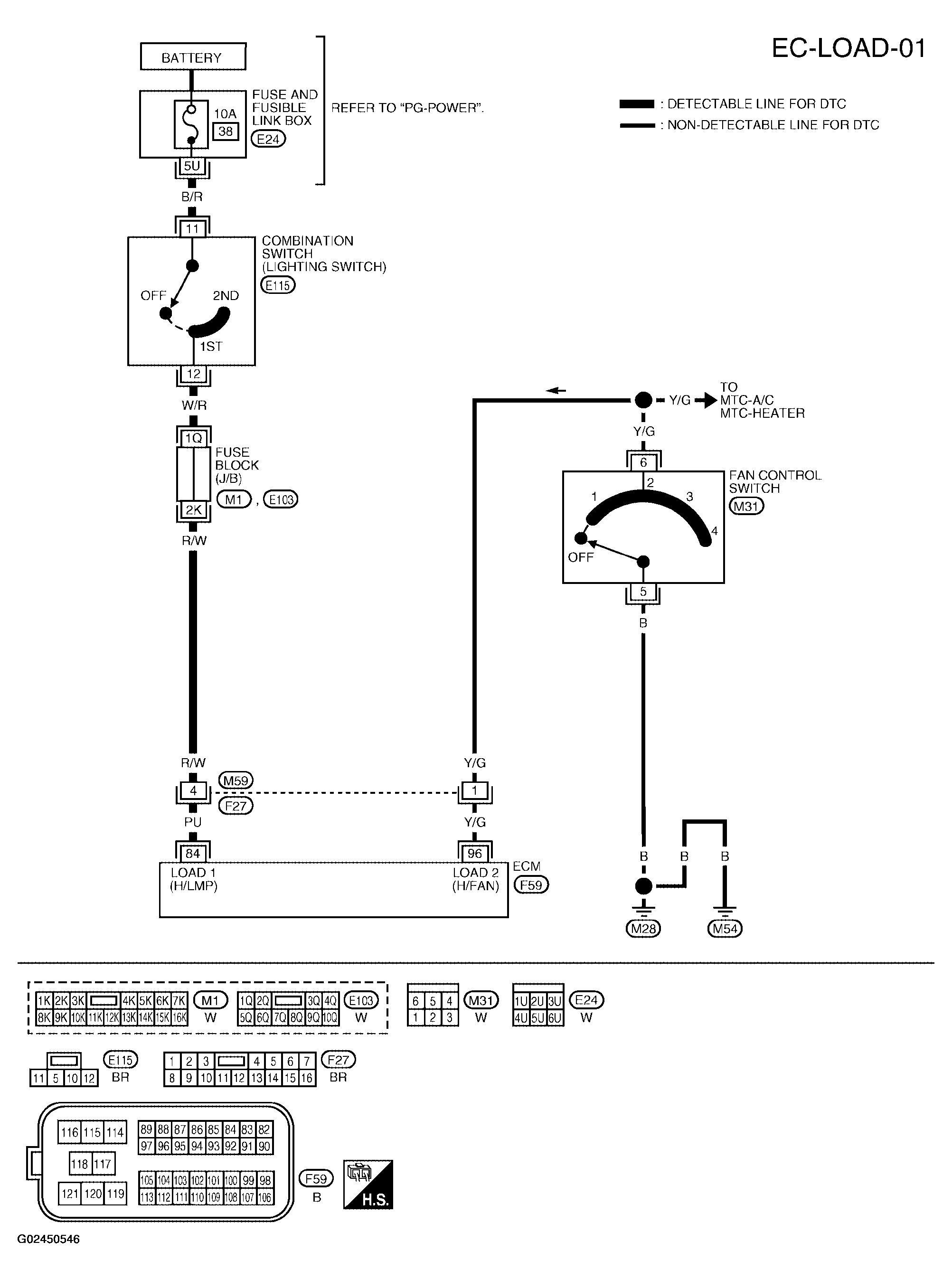

Fig 1: Wiring Diagram - Electrical Load Signal, SULEV Models (EC-LOAD-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

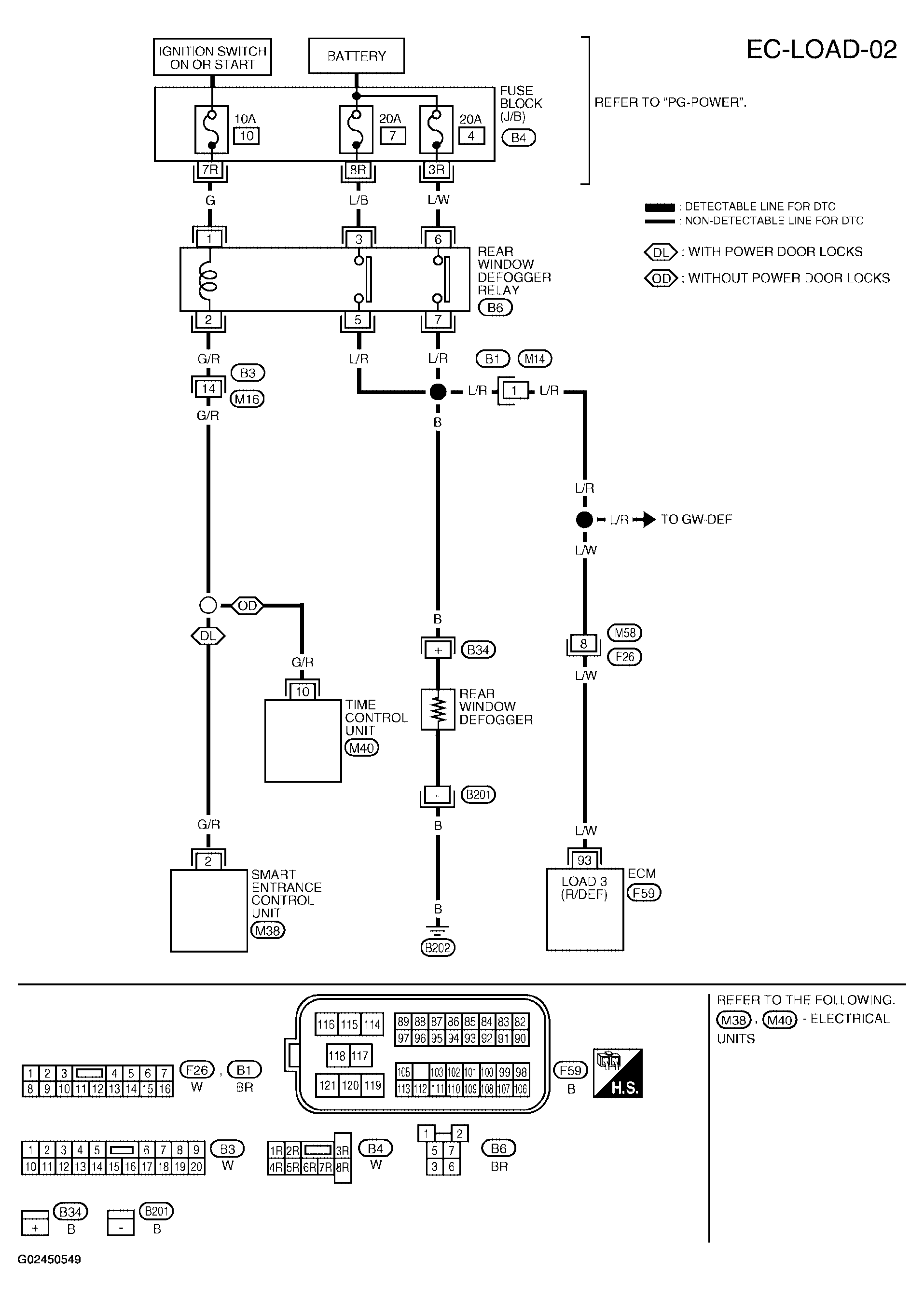

Fig 1: Wiring Diagram - Electrical Load Signal, SULEV Models (EC-LOAD-02)

Courtesy of NISSAN MOTOR CO., U.S.A.
