Control Valve Lower Body: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove valves at retainer plate.

For removal procedures, refer to DISASSEMBLY .

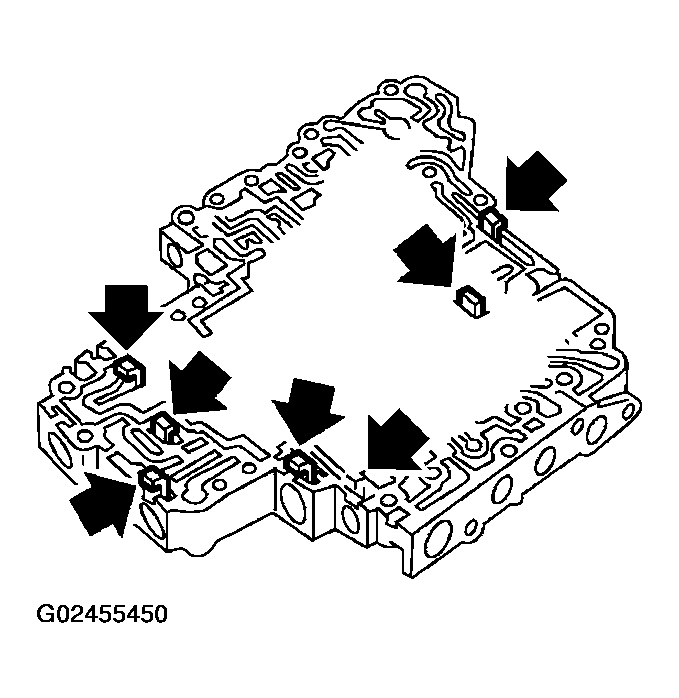

Fig 1: Removing Valves At Retainer Plate

G02455450

Courtesy of NISSAN MOTOR CO., U.S.A.
