Final Drive: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove final gear.

Fig 1: Removing Final Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out differential side bearings.

Fig 2: Pressing Out Differential Side Bearings (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Pressing Out Differential Side Bearings (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove speedometer drive gear.

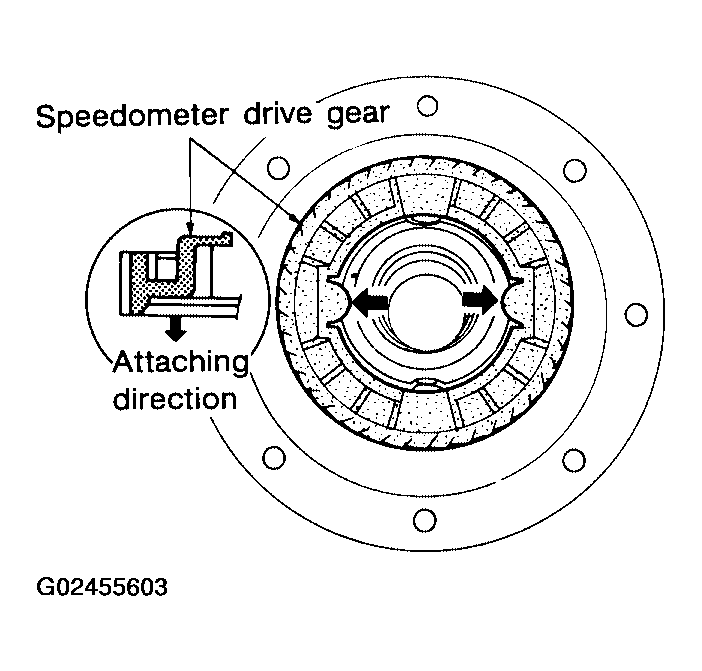

Fig 4: Removing Speedometer Drive Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out pinion mate shaft lock pin.

Fig 5: Identifying Drive Out Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Draw out pinion mate shaft from differential case.
Remove pinion mate gears and side gears.

Fig 6: Removing Pinion Mate Gears & Side Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
