Input/Output Signal Of TCM

WARNING: This page is about a different variant/trim than selected.

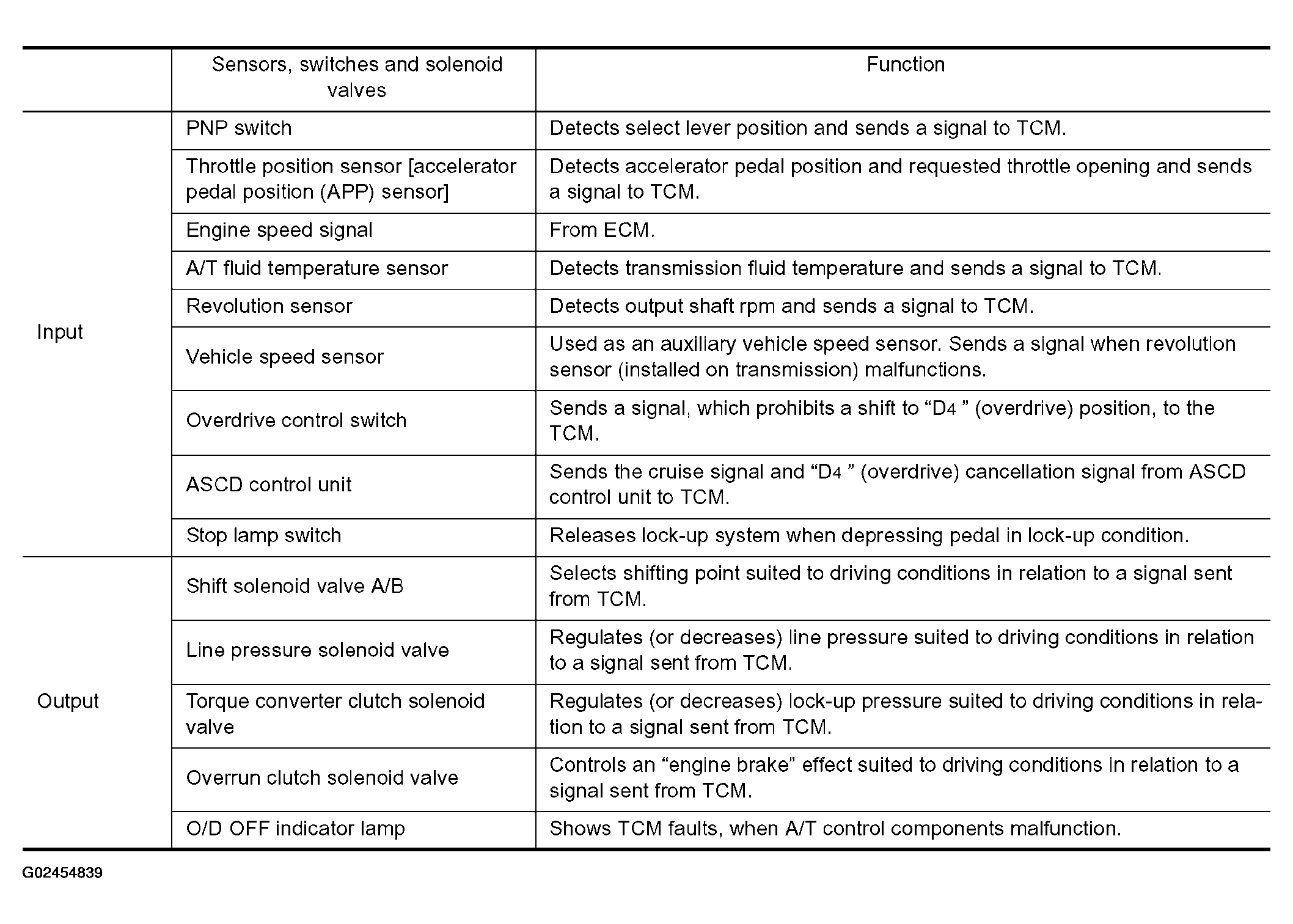

Fig 1: Input/Output Signal - TCM
G02454839Courtesy of NISSAN MOTOR CO., U.S.A.
