Removal and Installation

  1. Disconnect both battery cables.
  2. Slide the seat all the way forward and tilt the seat back toward the front.
  3. Remove adjuster cover. A
  4. Remove floor anchor bolt. B
  5. Remove shoulder anchor bolt. C
  6. Remove center pillar upper and lower garnish. Refer to SIDE AND FLOOR TRIM for details.
  7. Disconnect front seat belt pre-tensioner connector.
  8. Remove the screw securing front seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-tensioner retractor.
  9. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

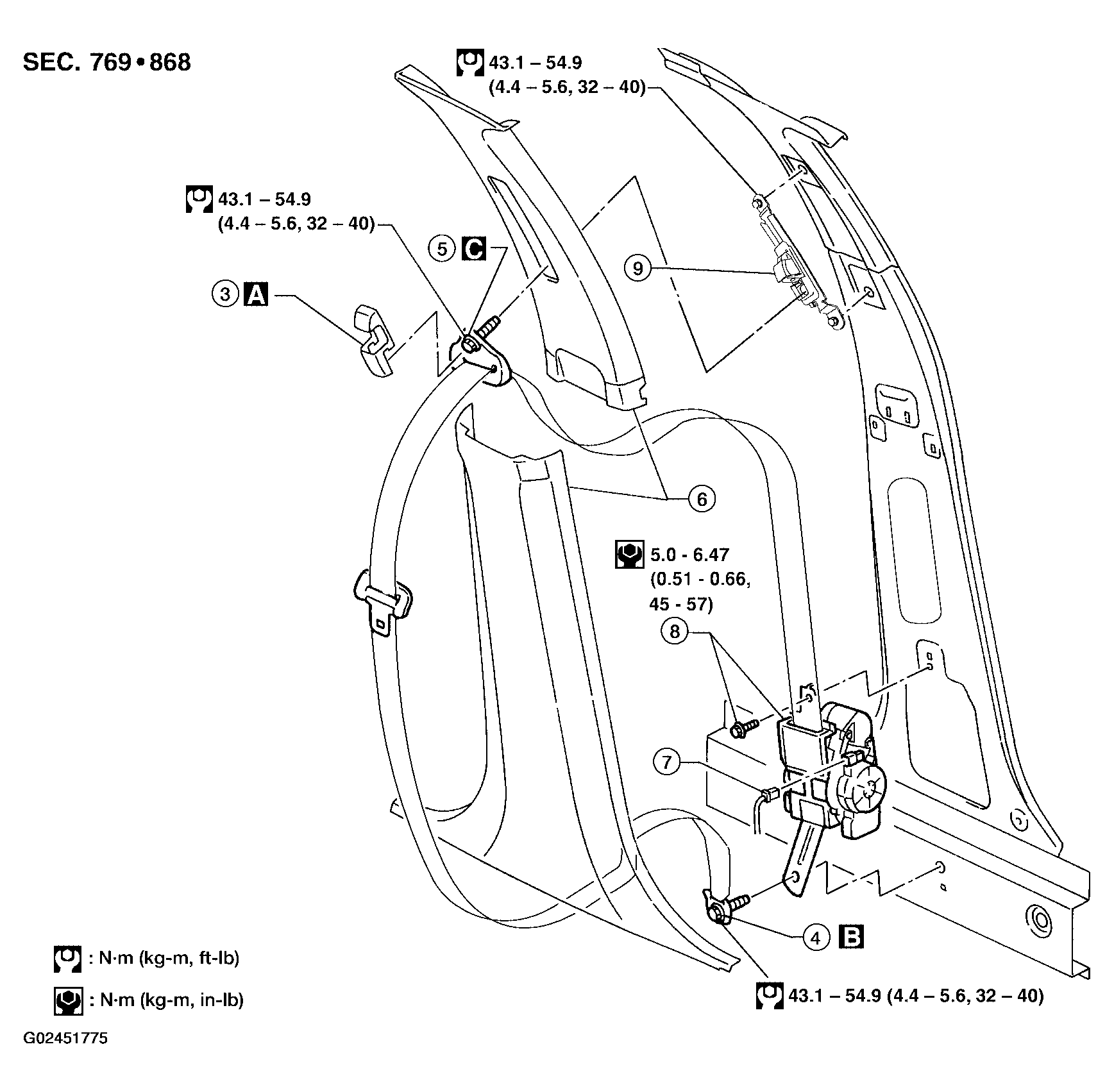

Fig 1: Removing/Installing Front Seat Belt (1 Of 2) With Torque Specifications
G02451775Courtesy of NISSAN MOTOR CO., U.S.A.

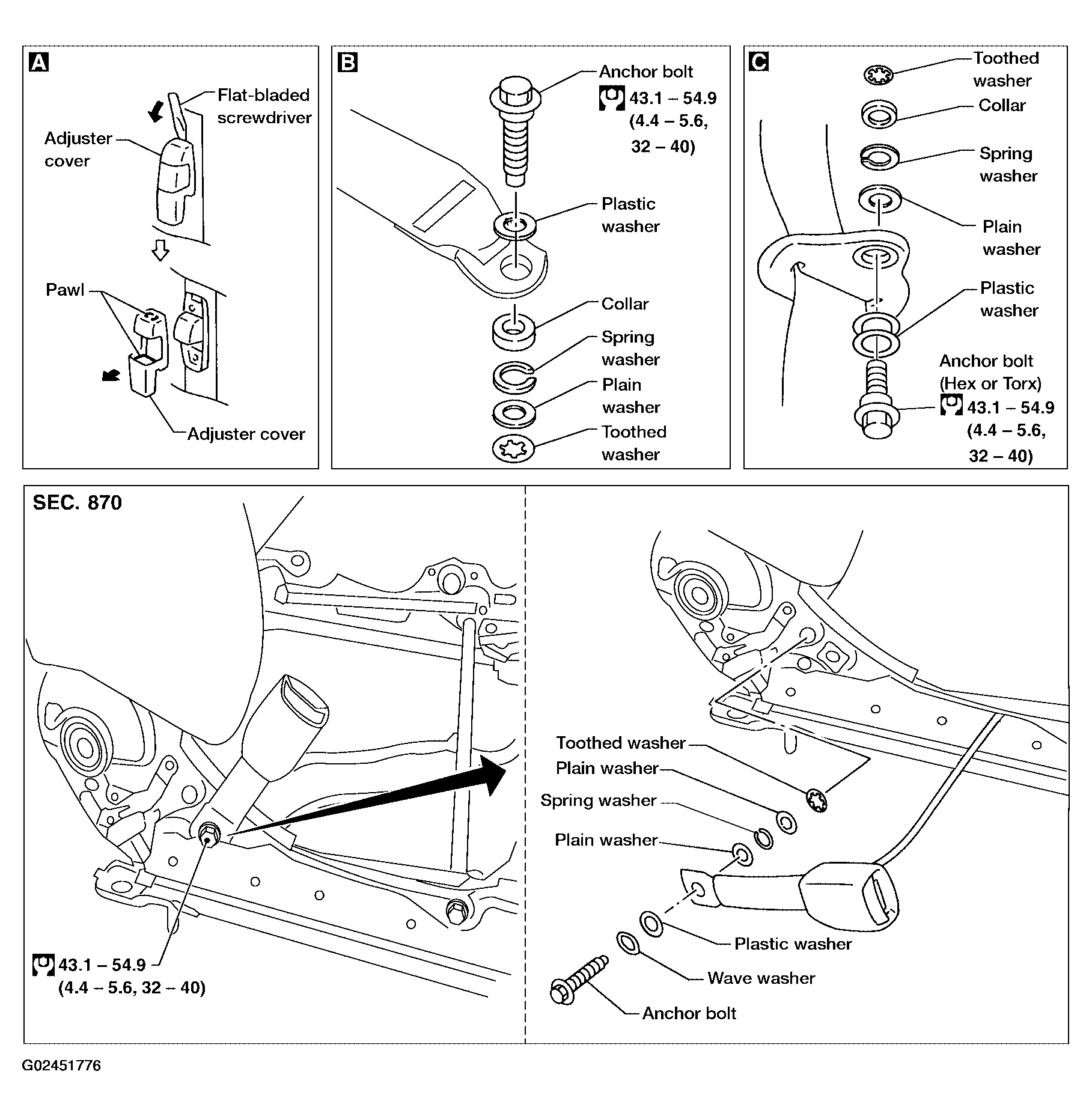

Fig 2: Removing/Installing Front Seat Belt (2 Of 2) With Torque Specifications
G02451776Courtesy of NISSAN MOTOR CO., U.S.A.
