DTC P0734: A/T 4TH Gear Function
›
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Remarks: Specification data are reference values.

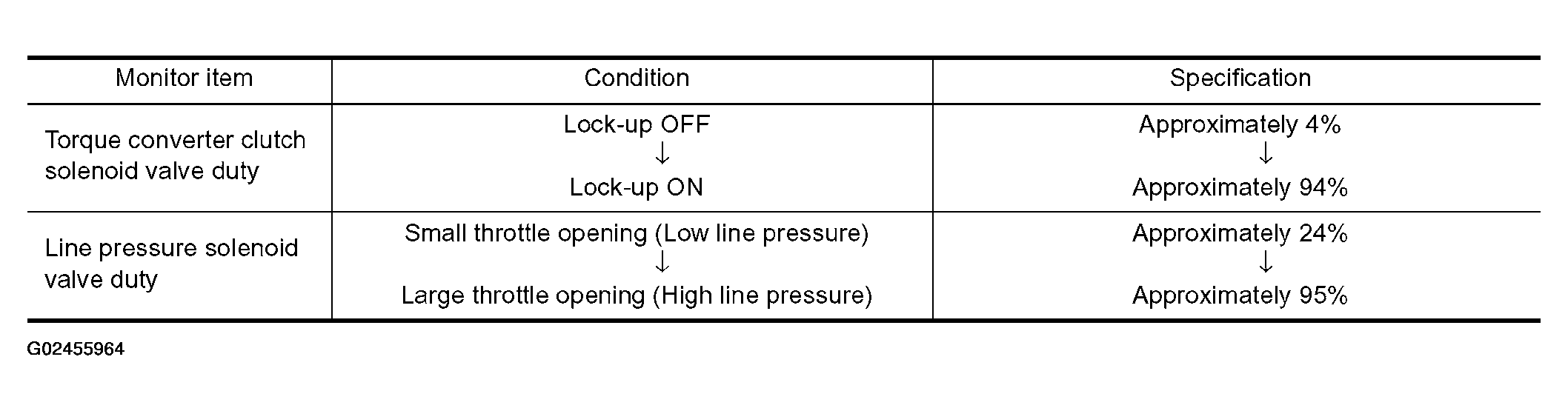

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
