Nissan-Datsun
›
2005
›
Sentra SE-R
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission (Re4F04B)
›
Overall System
›
Circuit Diagram
Circuit Diagram

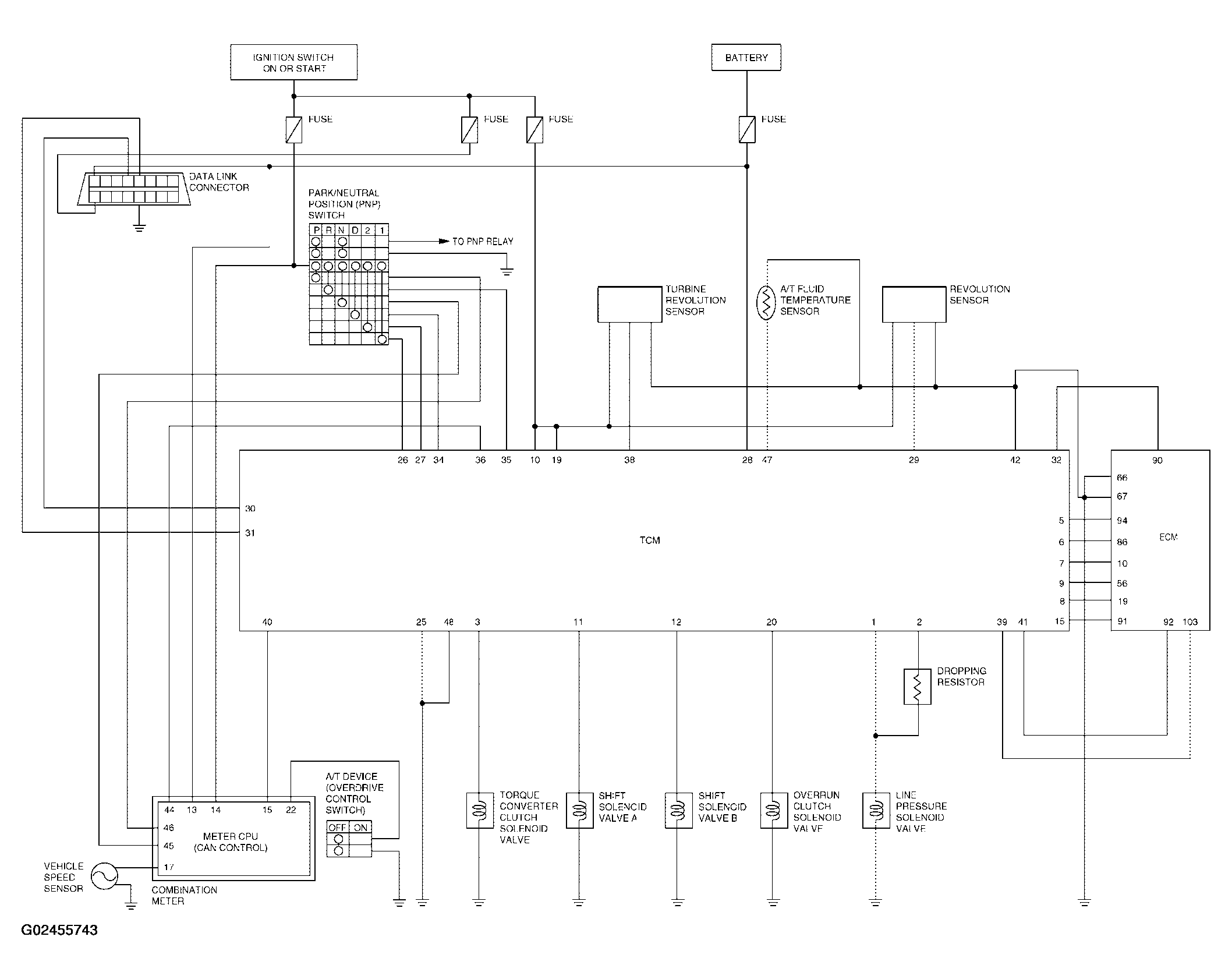

Fig 1: A/T Electrical Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
