High Clutch: Components

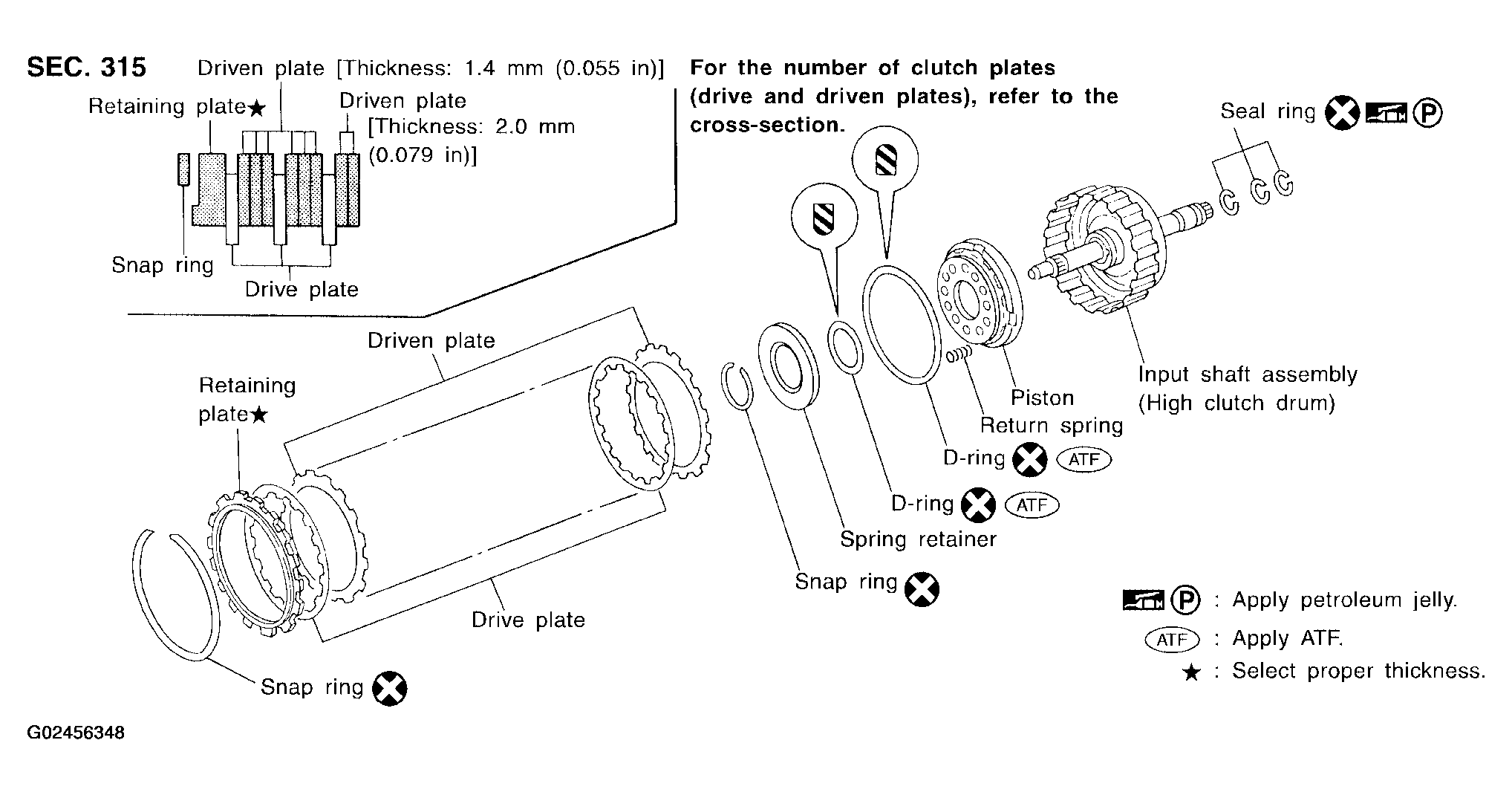

Fig 1: Exploded View Of High Clutch
G02456348Courtesy of NISSAN MOTOR CO., U.S.A.
