Reverse Clutch: Assembly

Install D-ring and oil seal on piston.
- Take care with the direction of oil seal.
- Apply ATF to both parts.

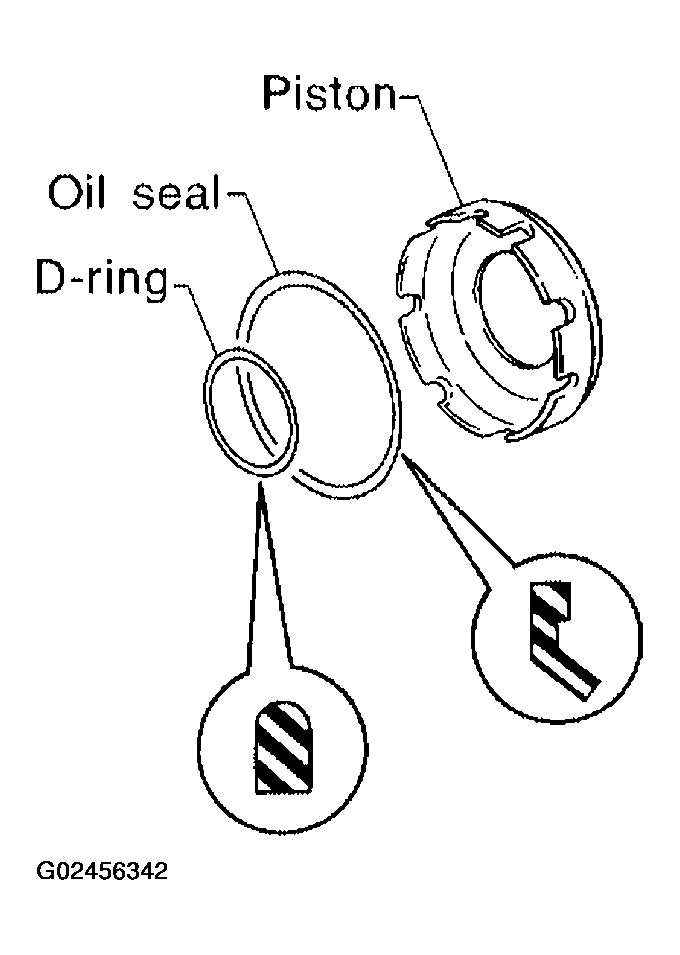

Fig 1: Installing D-Ring & Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.
Fig 2: Turning Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.

Fig 3: Installing Return Springs & Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.
Install drive plates, driven plates, retaining plate and dish plates.
- Take care with order of plates.
Install snap ring.

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.
1. Specified clearance
2. Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)
3. Allowable limit: 1.2 mm (0.047 in)
4. Retaining plate: Refer to REVERSE CLUTCH .
Fig 5: Measuring Clearance Between Retaining Plate & Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of reverse clutch.
Refer to DISASSEMBLY .

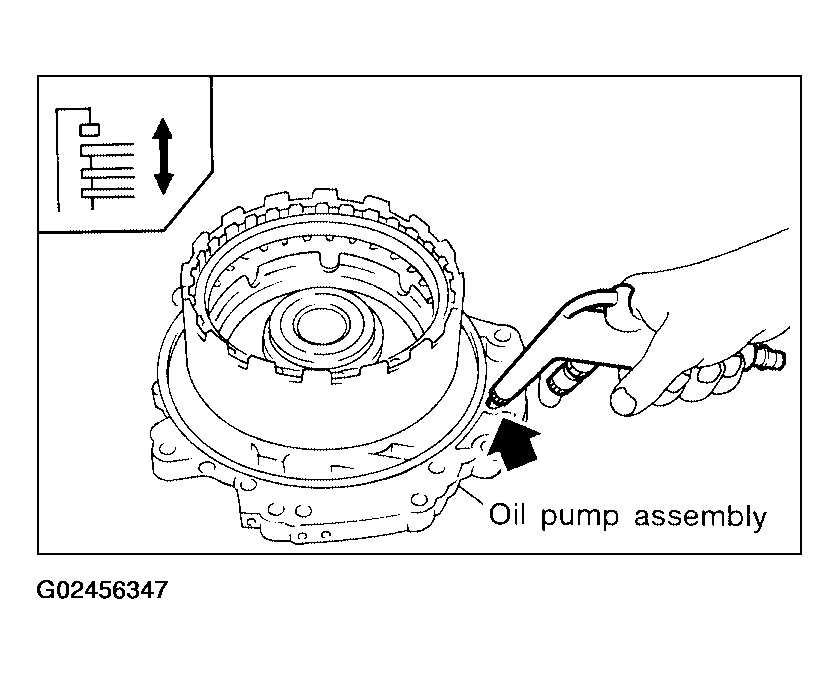

Fig 6: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
