Control Valves
›
Control Valve And Plug Return Springs
Control Valve And Plug Return Springs

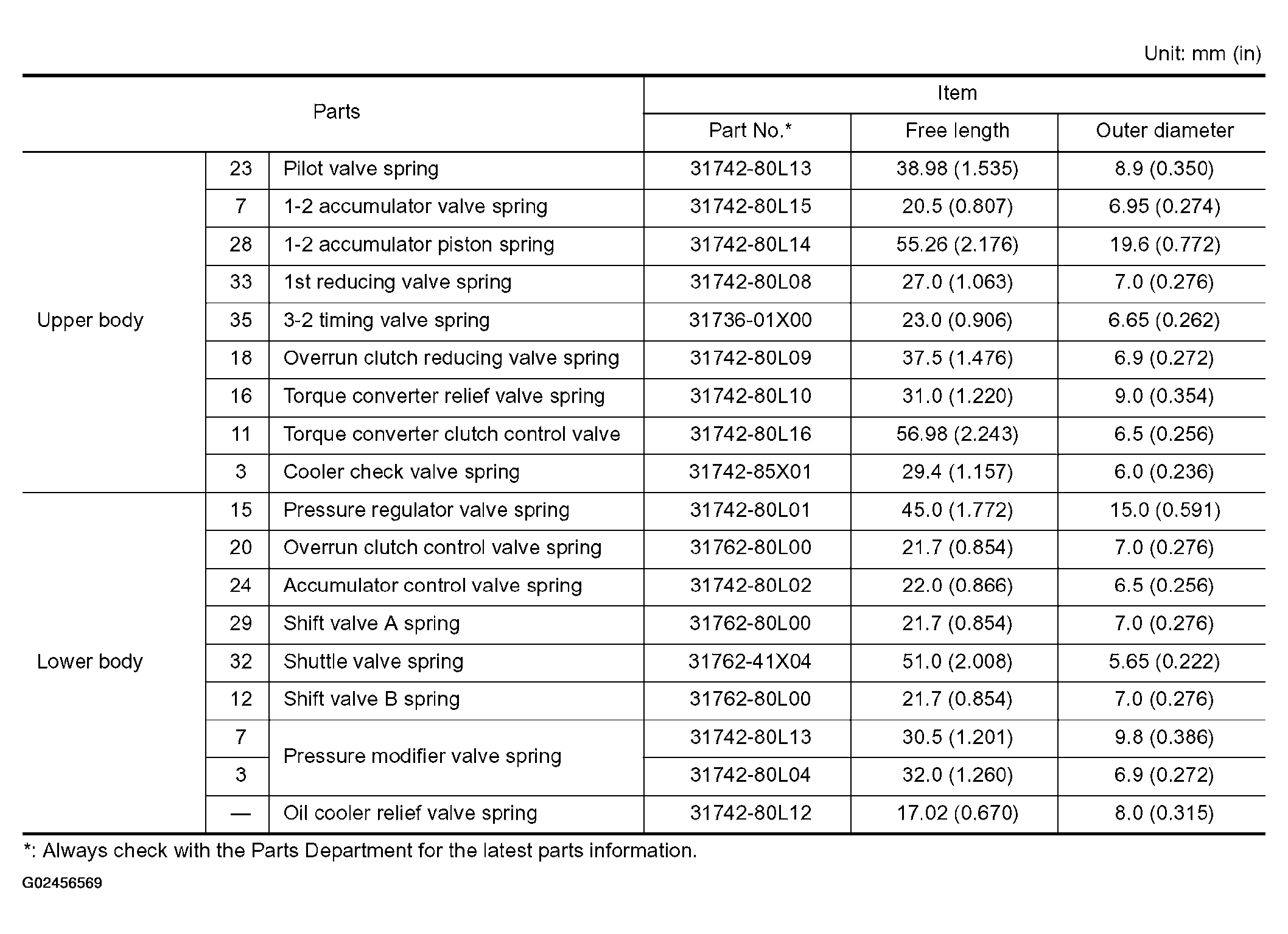

Fig 1: Control Valve & Plug Return Springs Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
