Line Pressure Test Procedure

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approx. 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature: 50 - 80°C (122 - 176°F)

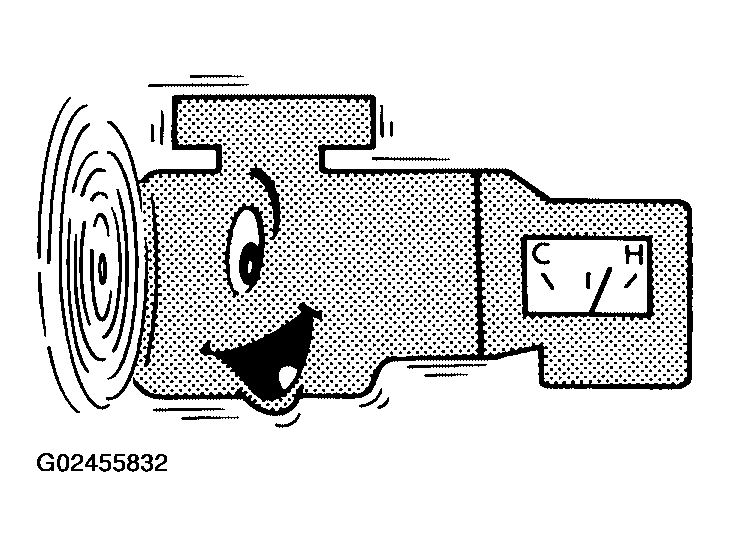

Fig 1: Locating Engine Oil Temperature
Courtesy of NISSAN MOTOR CO., U.S.A.
Install pressure gauge to corresponding line pressure port.

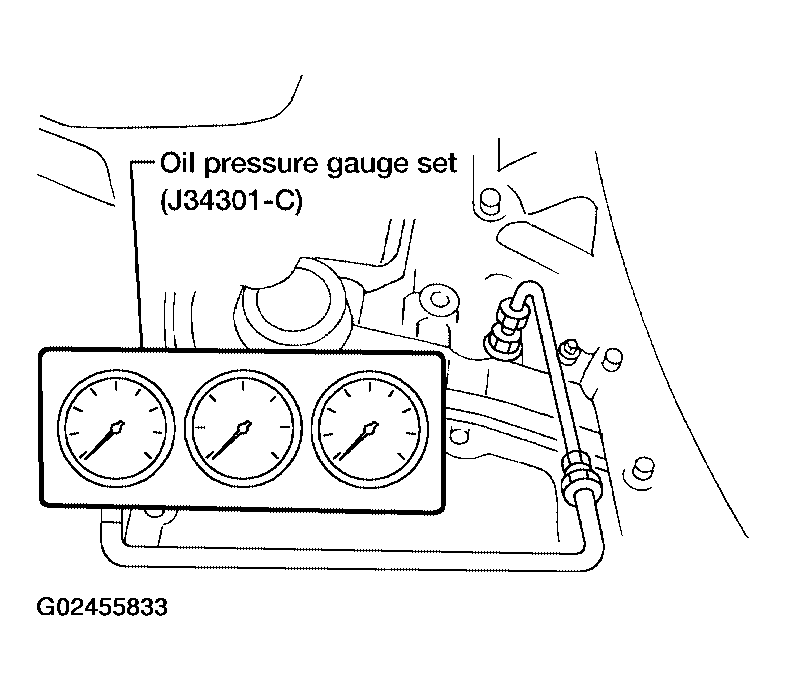

Fig 2: Identifying Oil Pressure Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking brake and block wheels.
- Continue to depress brake pedal fully while line pressure test is being performed at stall speed .

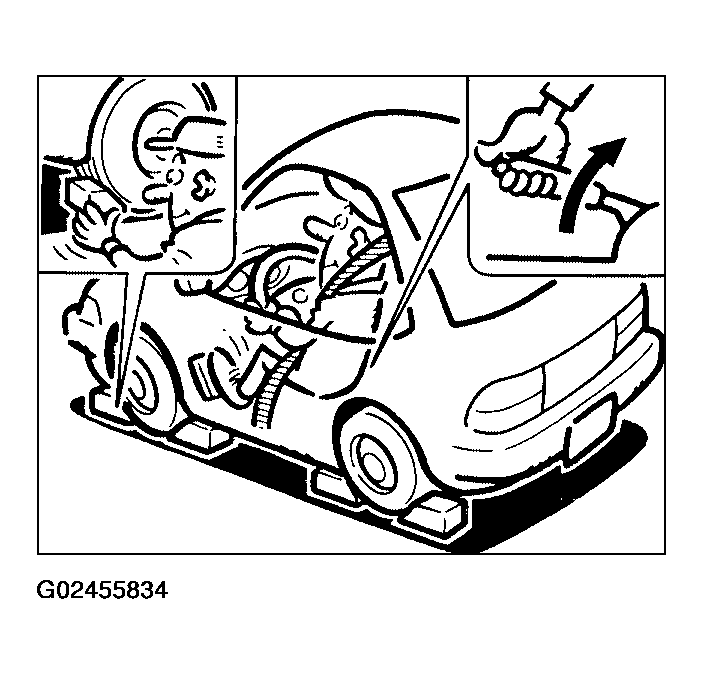

Fig 3: Pulling Parking Brake Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and measure line pressure at idle and stall speed.
- When measuring line pressure at stall speed, follow the stall test procedure.
  LINE PRESSURE TEST : Refer to SDS, LINE PRESSURE
Fig 4: Measuring Pressure Line
Courtesy of NISSAN MOTOR CO., U.S.A.
