CONSULT-II Setting Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

Fig 1: Connecting CONSULT-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".

Fig 3: CONSULT-II Display - Touch "A/T"
Courtesy of NISSAN MOTOR CO., U.S.A.

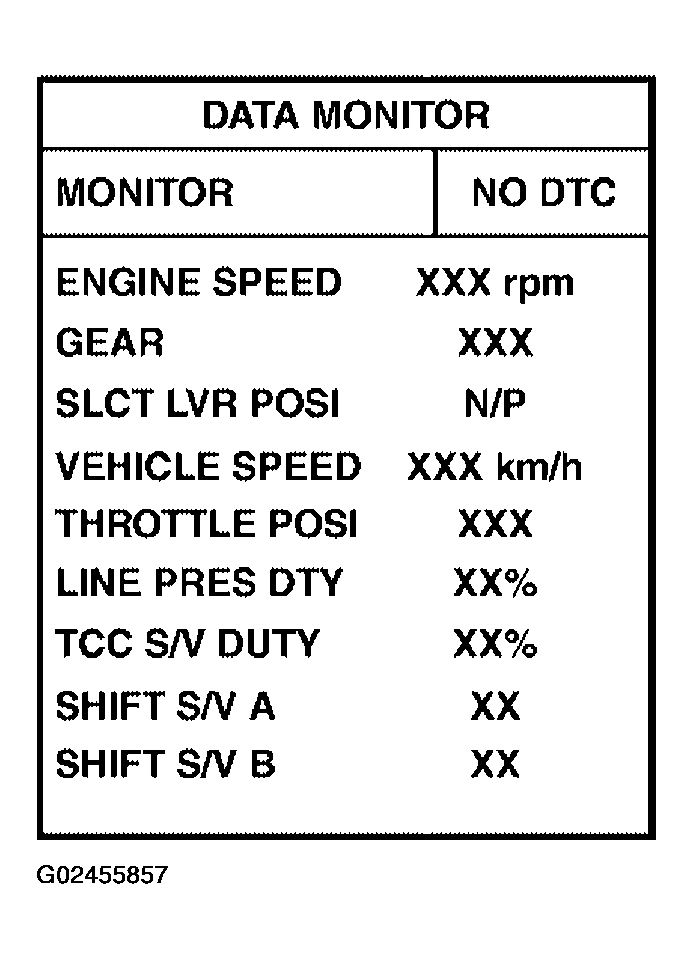

Touch "DATA MONITOR".

Fig 4: CONSULT-II Display Touch "DATA MONITOR"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MAIN SIGNAL" or "TCM INPUT SIGNALS".
See NUMERICAL DISPLAY, BARCHART DISPLAY or LINE GRAPH DISPLAY.

Fig 5: CONSULT-II Display - Touch "MAIN SIGNAL"
Courtesy of NISSAN MOTOR CO., U.S.A.

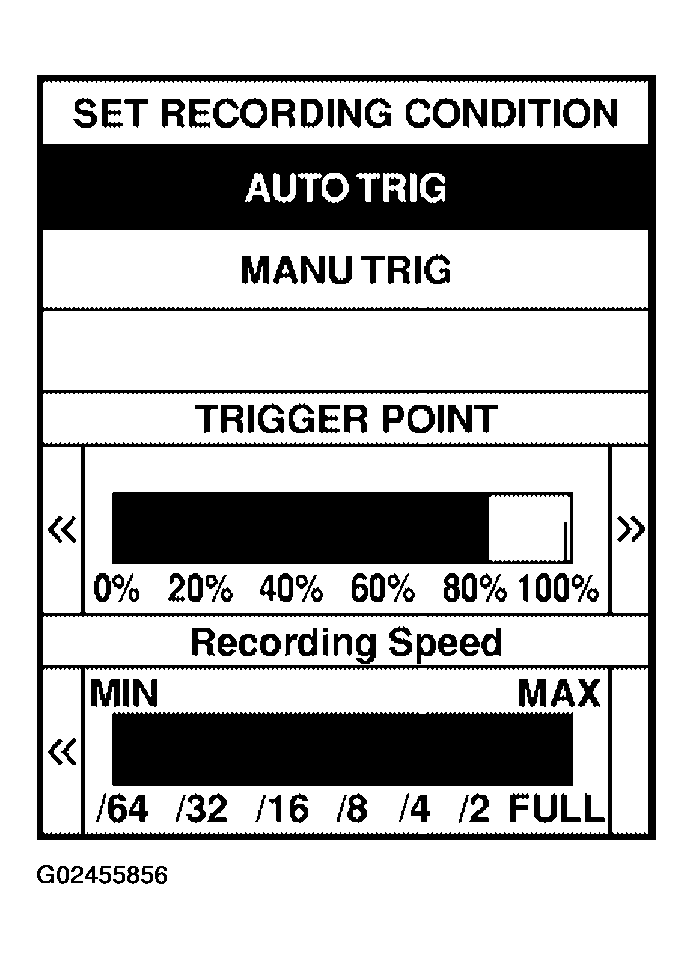

Touch "SETTING" to set recording condition ("AUTO TRIG" or "MANU TRIG") and touch "BACK".
Touch "START".

Fig 6: CONSULT-II Display - Touch "SETTING"
Courtesy of NISSAN MOTOR CO., U.S.A.
When performing cruise test, touch "RECORD".

Fig 7: CONSULT-II Display - TOUCH "RECORD"
Courtesy of NISSAN MOTOR CO., U.S.A.

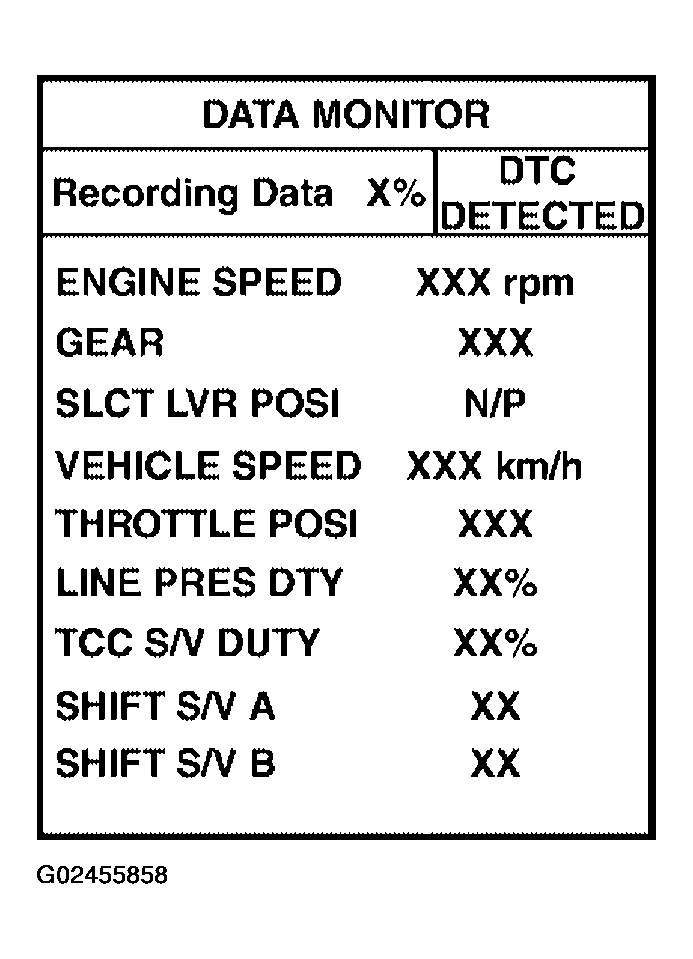

After finishing cruise test part 1, touch "STOP".

Fig 8: CONSULT-II Display - TOUCH "STOP"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "STORE" and touch "BACK".

Fig 9: CONSULT-II Display - "STORE & TOUCH "BACK"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DISPLAY".
Touch "PRINT".

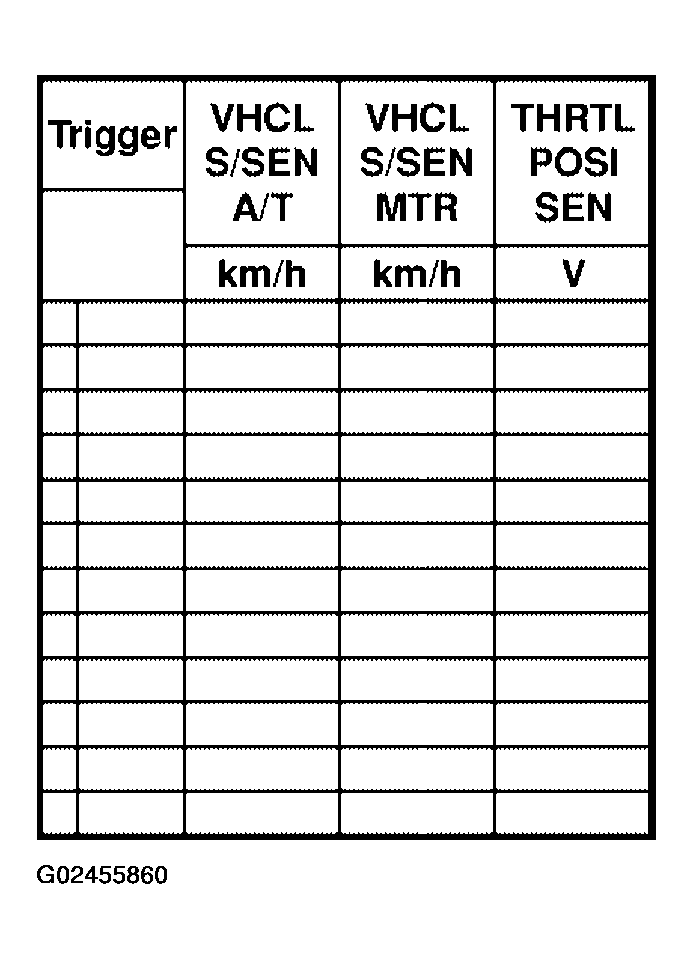

Check the monitor data printed out.
Continue cruise test part 2 and 3.
