Diagnostic Procedure

CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out the value of "TURBINE REF" while driving.
  Check the value changes according to driving speed.

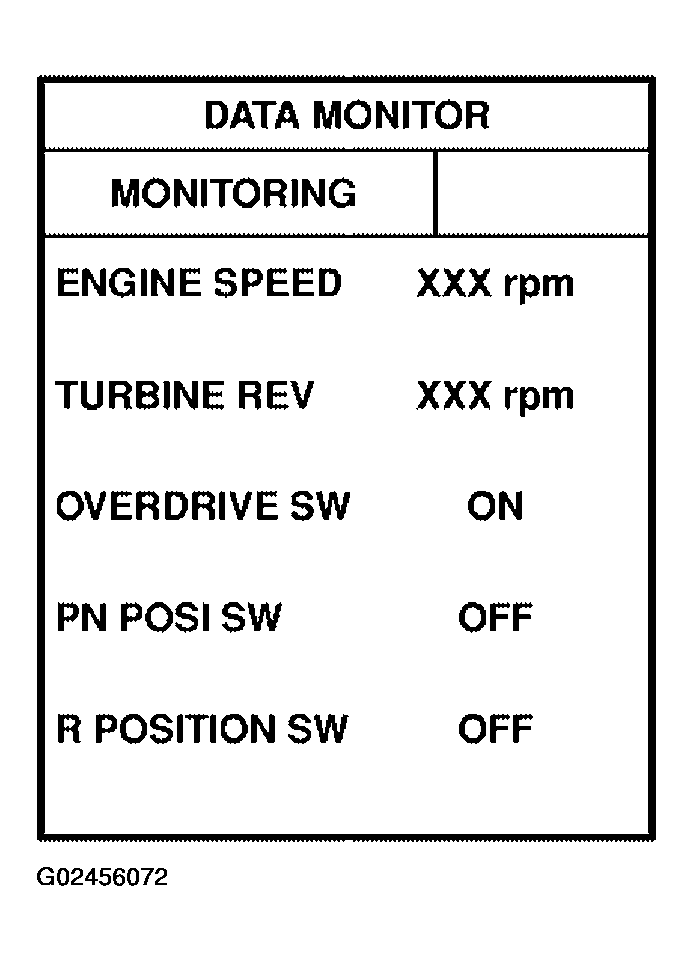

  Fig 1: CONSULT-II Display - Data Monitor Mode For A/T
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 38 and ground (measure in AC range).

  Fig 2: Checking Voltage Between TCM Terminal 38 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG: GO TO 2.
DETECT MALFUNCTIONING ITEM
Check harness for short or open between TCM and turbine revolution sensor.

OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace damaged parts.
CHECK DTC
Perform DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION. Refer to DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

OK or NG
1. OK: INSPECTION END.
2. NG: GO TO 4.
CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminal for damage or loose connection with harness connector.
OK or NG
1. OK: INSPECTION END.
2. NG: Repair or replace damaged parts.
