System Description
›
System Diagram
System Diagram

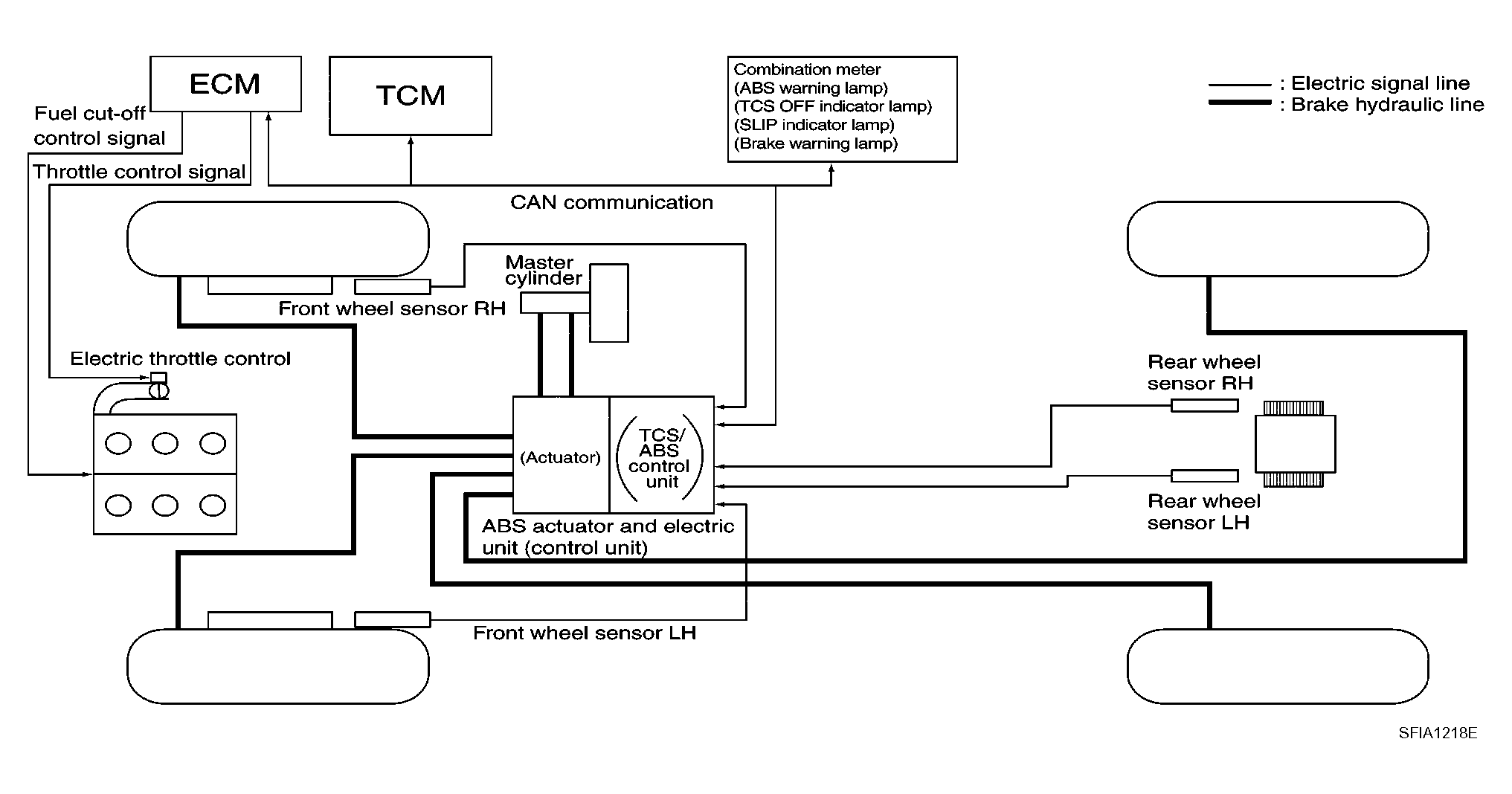

Fig 1: System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
