ASCD Indicator
›
Wiring Diagram
ASCD Indicator: Wiring Diagram

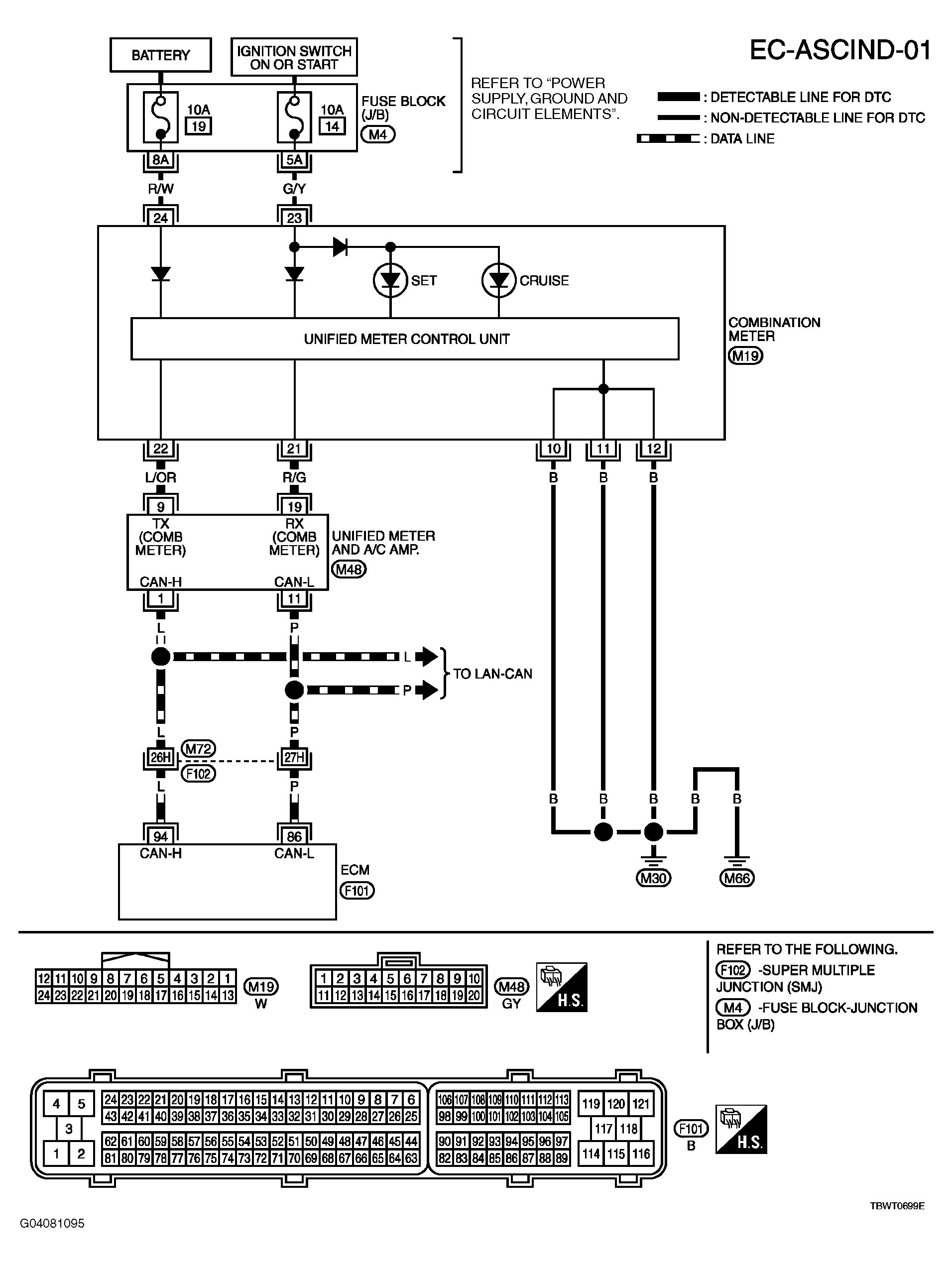

Fig 1: EC-ASCIND-01 - Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
