Fuel Injector: Wiring Diagram

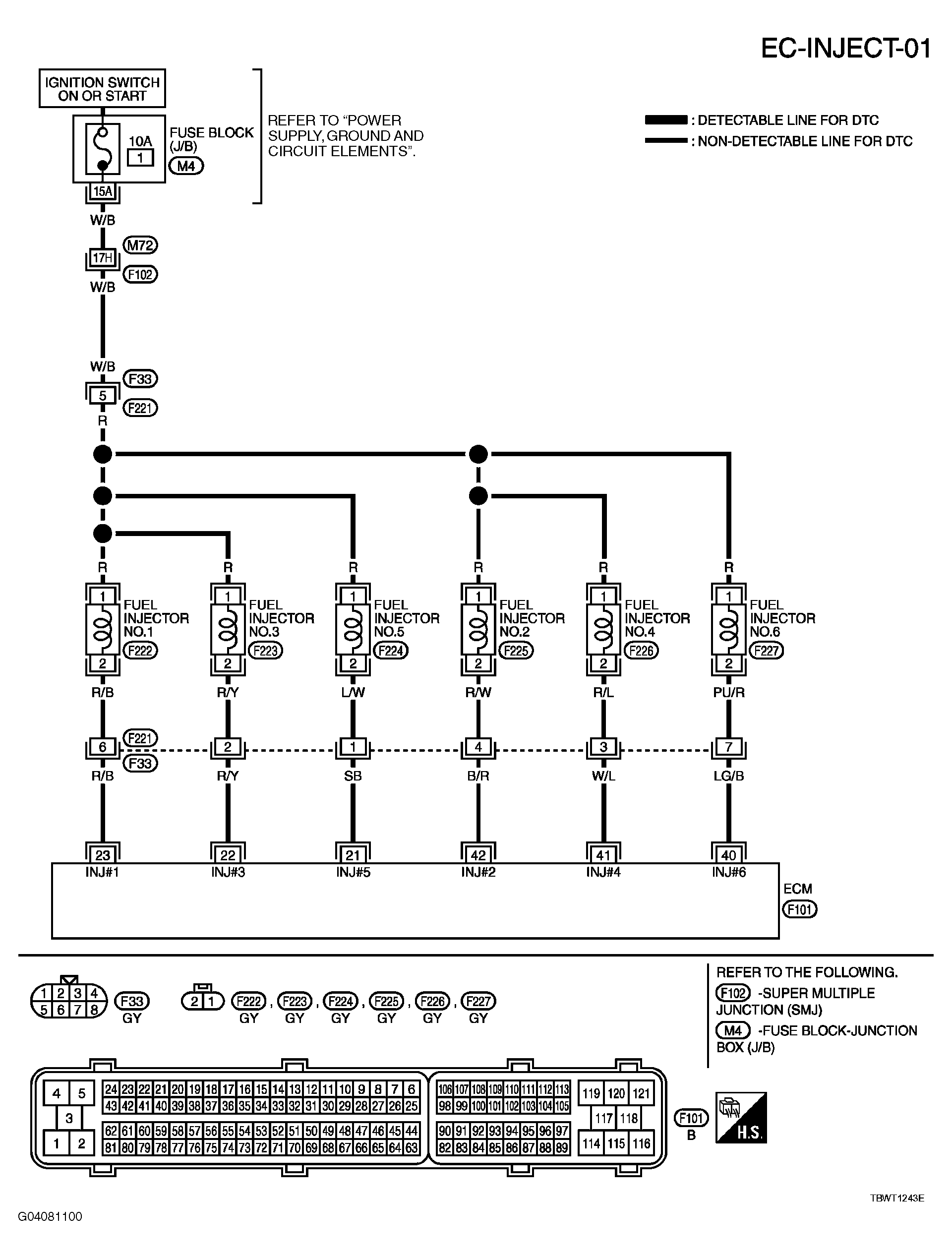

Fig 1: EC-INJECT-01 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ITEM CONDITION

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

21
22
23

SB
R/Y
R/B

Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1

[Engine is running]

Warm-up condition
Idle speed

NOTE: The pulse cycle changes depending on RPM at idle.

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 RPM

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

40
41
42

LG/B
W/L
B/R

Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2

[Engine is running]

Warm-up condition
Idle speed

NOTE: The pulse cycle changes depending on RPM at idle.

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

[Engine is running]

Warm-up condition
Engine speed: 2, 000 RPM

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN NORTH AMERICA, INC.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
