Diagnostic Procedure: Notes

  1. INSPECTION START

    Do you have CONSULT-II?

    Yes or No

    1. Yes : GO TO 2.
    2. No : GO TO  4.
  2. CHECK COOLING FAN LOW SPEED OPERATION

    With CONSULT-II

    1. Start engine and let it idle.
    2. Select "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II and touch "LOW" on the CONSULT-II screen.
    3. Make sure that cooling fans-1 and -2 operate at low speed.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Check cooling fan low speed control circuit. (Go to "PROCEDURE A ".)
      Fig 1: CONSULT-II Display - ACTIVE TEST
      G04080948Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK COOLING FAN HIGH SPEED OPERATION

    With CONSULT-II

    1. Touch "HIGH" on the CONSULT-II screen.
    2. Make sure that cooling fans-1 and -2 operate at higher speed than low speed.

    OK or NG

    1. OK : GO TO  6.
    2. NG : Check cooling fan high speed control circuit. (Go to "PROCEDURE B ".)
      Fig 2: CONSULT-II Display - ACTIVE TEST
      G04080949Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK COOLING FAN LOW SPEED OPERATION

    Without CONSULT-II

    1. Start engine and let it idle.
    2. Turn air conditioner switch ON.
    3. Turn blower fan switch ON.
    4. Make sure that cooling fans-1 and -2 operate at low speed.
      Fig 3: Checking Cooling Fan Low Speed Operation
      G04080950Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 5.
    2. NG : Check cooling fan low speed control circuit. (Go to "PROCEDURE A ".)
  5. CHECK COOLING FAN HIGH SPEED OPERATION

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Turn air conditioner switch and blower fan switch OFF.
    3. Disconnect engine coolant temperature sensor harness connector.
    4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
    5. Restart engine and make sure that cooling fans-1 and -2 operate at higher speed than low speed.

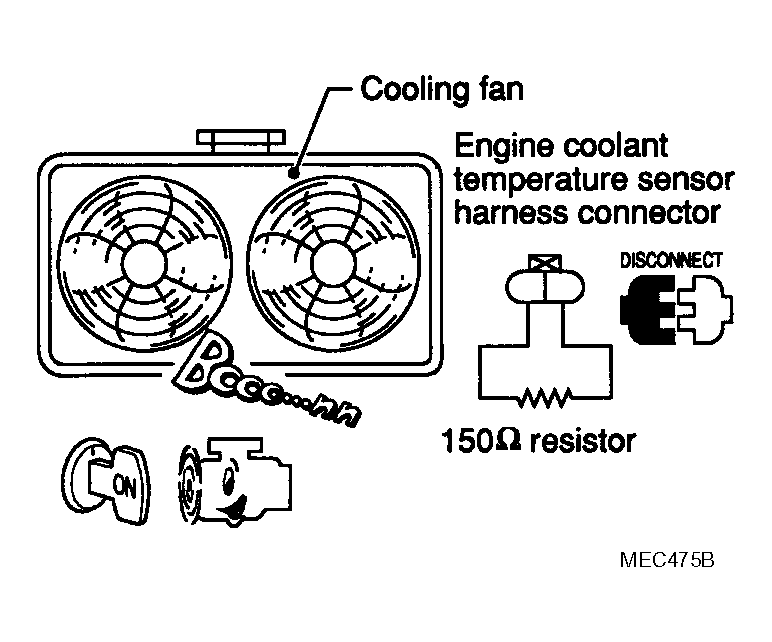

      Fig 4: Checking Cooling Fan High Speed Operation
      G04080951Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 6.
    2. NG : Check cooling fan high speed control circuit. (Go to "PROCEDURE B ".)
  6. CHECK COOLING SYSTEM FOR LEAK

    Refer to "LEAK CHECK ".

    OK or NG

    1. OK : GO TO 7.
    2. NG : Check the following for leak.
      • Hose
      • Radiator
      • Water pump
  7. CHECK RADIATOR CAP

    Refer to "CHECKING RADIATOR CAP ".

    OK or NG

    1. OK : GO TO 8.
    2. NG : Replace radiator cap.
  8. CHECK THERMOSTAT

    Refer to "WATER INLET AND THERMOSTAT ASSEMBLY ".

    OK or NG

    1. OK : GO TO 9.
    2. NG : Replace thermostat
  9. CHECK ENGINE COOLANT TEMPERATURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 10.
    2. NG : Replace engine coolant temperature sensor.
  10. CHECK MAIN 12 CAUSES

    If the cause cannot be isolated, go to "MAIN 12 CAUSES OF OVERHEATING ".

    1. : INSPECTION END
