Nissan-Datsun
›
2006
›
350Z 2D Convertible, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - Introduction
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

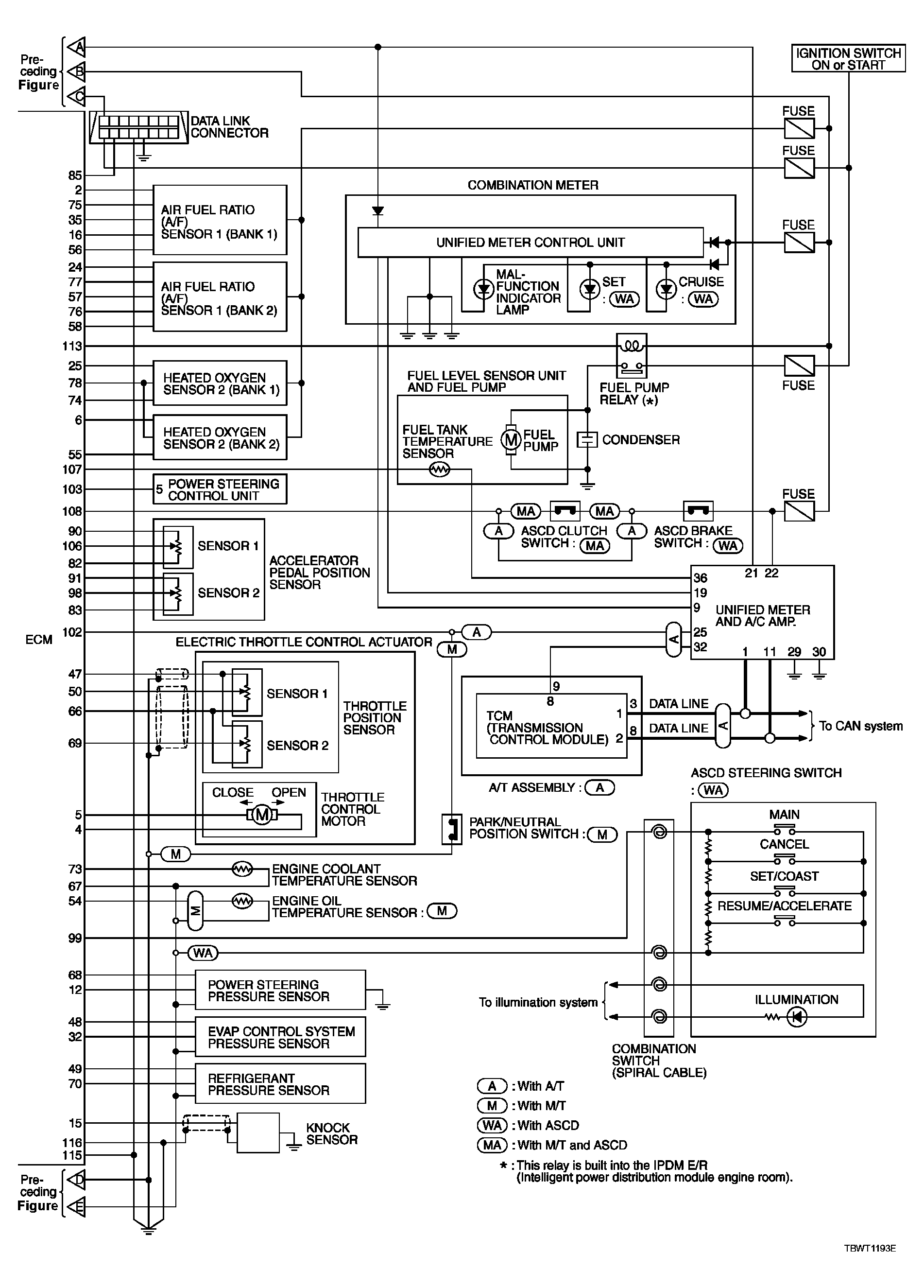

Fig 1: Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

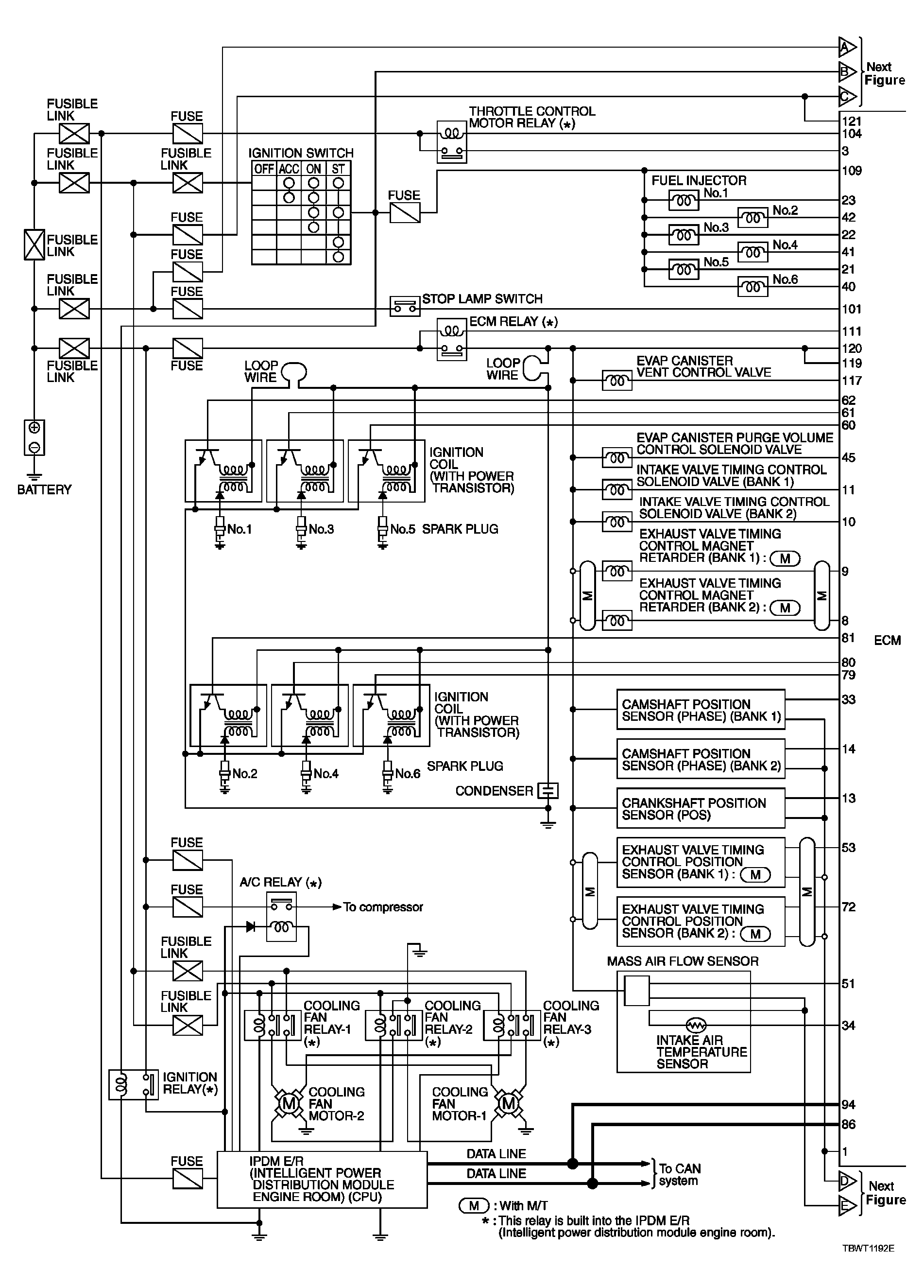

Fig 2: Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
